1972 Yamaha U7E (U7E) Cylinder Crankcase Diagram

← All diagrams

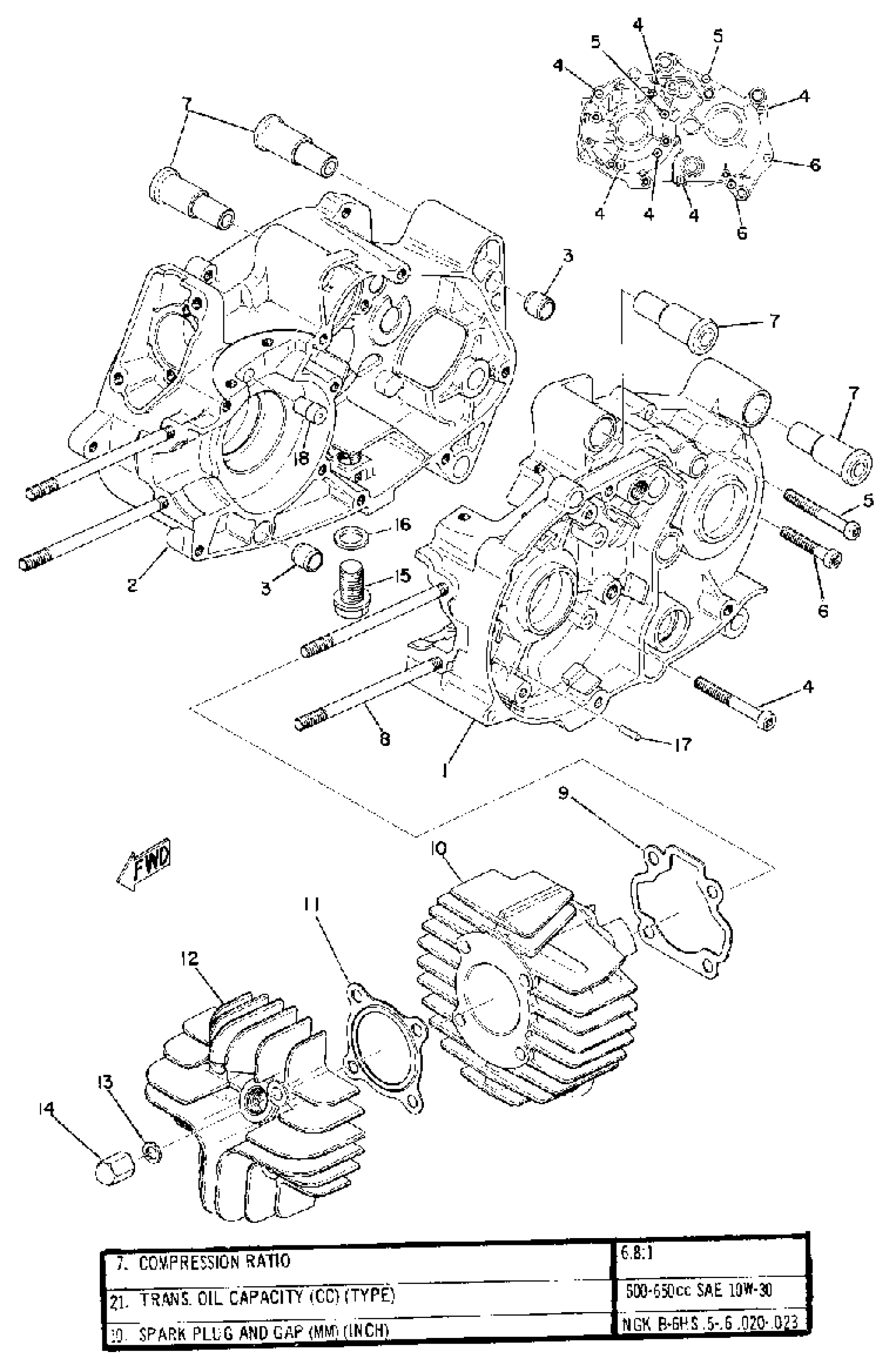

Find the part on the Cylinder Crankcase diagram for your 1972 Yamaha U7E (U7E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha U7E (U7E) Cylinder Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE 1

(298-15111-01-00)

1
Out of stock

2

CRANKCASE 2

(298-15121-01-00)

1
Out of stock

3

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

4

SCREW PAN HEAD

98580-06550-00

1

$6.17

In stock

5

SCREW PAN HEAD

98580-06545-00

1

$5.78

In stock

6

SCREW, PAN HEAD(6H4)

97885-06035-00

1

$6.38

In stock

7

DAMPER 1

5T9-15316-02-00

—
Out of stock

8

BOLT, STUD 1221136100

90116-06100-00

1

$8.02

In stock

9

GASKET, CLYNDR

122-11351-10-00

1
Out of stock

10

CYLINDER 1

(298-11311-00-00)

1
Out of stock

11

GASKET, CYLINDER HEAD

2F4-11181-00-00

1

$42.98

In stock

12

HEAD, CYLINDER 1

(440-11111-00-00)

1
Out of stock

13

WASHER, PLATE (371)

90201-06431-00

1
Out of stock

14

NUT CAP 126111716000

90176-06002-00

1

$4.43

In stock

15

1

$6.71

In stock

16

GASKET (3JD1)

90430-12207-00

—

$6.77

In stock

17

PIN, DOWEL

93603-14026-00

—
Out of stock

18

NOZZLE

(296-13572-00-00)

1
Out of stock
