1972 Yamaha U7E (U7E) Crank Piston Diagram

← All diagrams

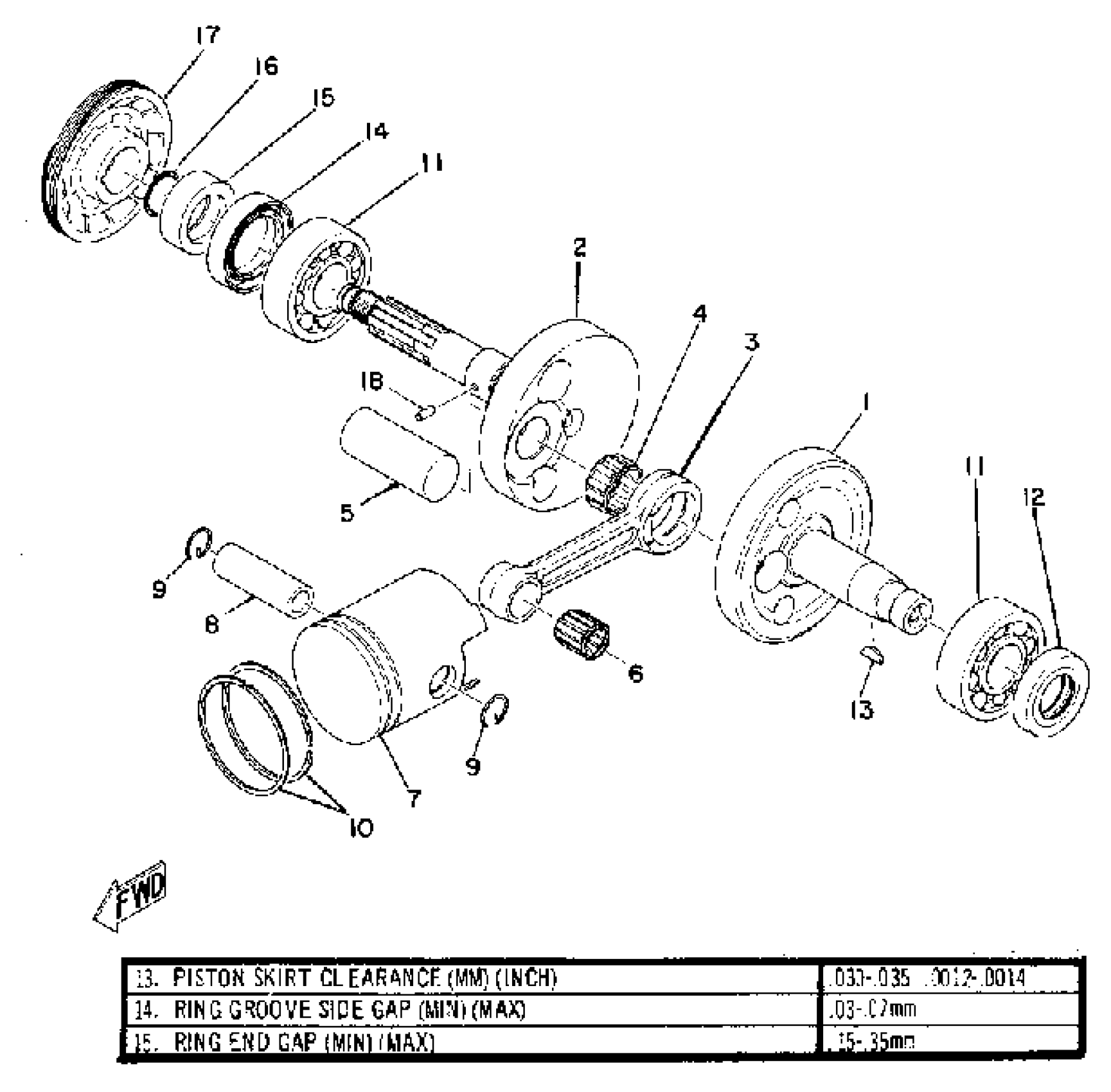

Find the part on the Crank Piston diagram for your 1972 Yamaha U7E (U7E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha U7E (U7E) Crank Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

(299-11400-02-00)

1
Out of stock

1

. CRANK 1

(299-11412-00-00)

1
Out of stock

2

. CRANK 2

(298-11422-00-00)

1
Out of stock

3

ROD, CONNECTING

3R1-11651-01-00

1
Out of stock

4

BEARING, CYLINDRICAL(3TU)

93310-418C4-00

1
Out of stock

5

PIN, CRANK 1

257-11681-10-00

1
Out of stock

6

BRG,CYL-CAL ROLLER 5G TM

93310-11268-00

1

$30.25

In stock

7

PISTON STD 001

298-11631-60-97

1
Out of stock

7

PISTON 1 O/S 0.25 001

298-11635-60-00

1
Out of stock

7

PISTON 2 O/S 0.50 001

(298-11636-60-00)

1
Out of stock

8

PIN, PISTON

527-11633-00-00

1
Out of stock

9

CIRCLIP 132116340000

93450-13022-00

1
Out of stock

10

PISTON RING SET (0.25MM O/S)

14N-11604-00-00

—
Out of stock

10

PISTON RING SET (STD)

14N-11603-00-00

—
Out of stock

10

PISTON RING SET (0.50MM O/S)

14N-11605-00-00

1
Out of stock

11

BEARING(1GJ)

93306-20458-00

—

$36.19

In stock

12

OIL SEAL (20X35X7-136)

93102-20009-00

—

$9.10

In stock

13

KEY WOODRUFF 146115450000

90280-03017-00

—

$5.78

In stock

14

OIL SEAL (28X40X8-132)

93103-28011-00

—

$12.05

In stock

15

COLLAR (132-16136-01)

90387-20345-00

1
Out of stock

16

O-RING(3KX)

93210-180A6-00

—

$4.78

In stock

17

GEAR, PUMP DRIVE

(296-13178-00-00)

1
Out of stock

18

. PIN, DOWEL

93603-08072-00

1
Out of stock

19

PISTON KIT

(298-11630-00-00)

1
Out of stock

20

PISTON KIT

(298-11630-10-00)

1
Out of stock

21

PISTON KIT

(298-11630-20-00)

1
Out of stock
