1972 Yamaha U7E (U7E) Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 1972 Yamaha U7E (U7E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

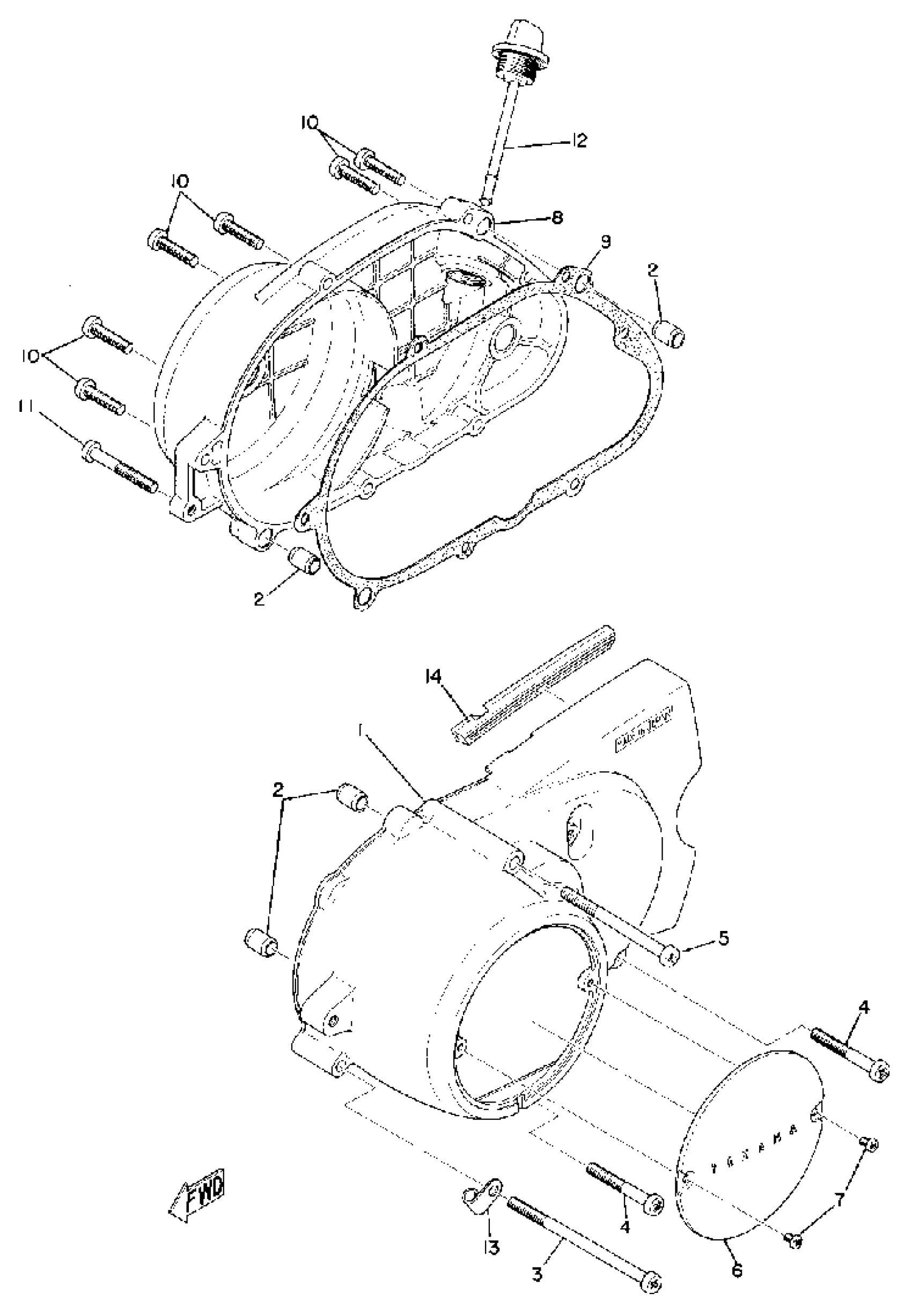

1972 Yamaha U7E (U7E) Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CRANKCASE L

(297-15411-00-00)

1
Out of stock

2

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

3

SCREW, PAN

98507-06100-00

1

$6.80

In stock

4

SCREW PAN HEAD

98580-06545-00

1

$5.78

In stock

5

SCREW PAN HEAD

98580-06575-00

1

$10.95

In stock

6

COVER, GENERATOR (1)

164-15415-00-00

1

$22.02

In stock

7

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

8

COVER, CRANKCASE R

(296-15421-01-00)

1
Out of stock

9

GASKET, CRANKCASE COVER 1

296-15451-03-00

1

$24.91

In stock

10

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

11

SCREW PAN HEAD

98580-06040-00

1

$6.17

In stock

12

PLUG, OIL

(307-15363-00-00)

1
Out of stock

13

HOLDER

(296-15378-00-00)

1
Out of stock

14

COVER

(296-15492-00-00)

1
Out of stock
