1967 Yamaha U5E (U5E) Kick Starter Diagram

← All diagrams

Find the part on the Kick Starter diagram for your 1967 Yamaha U5E (U5E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

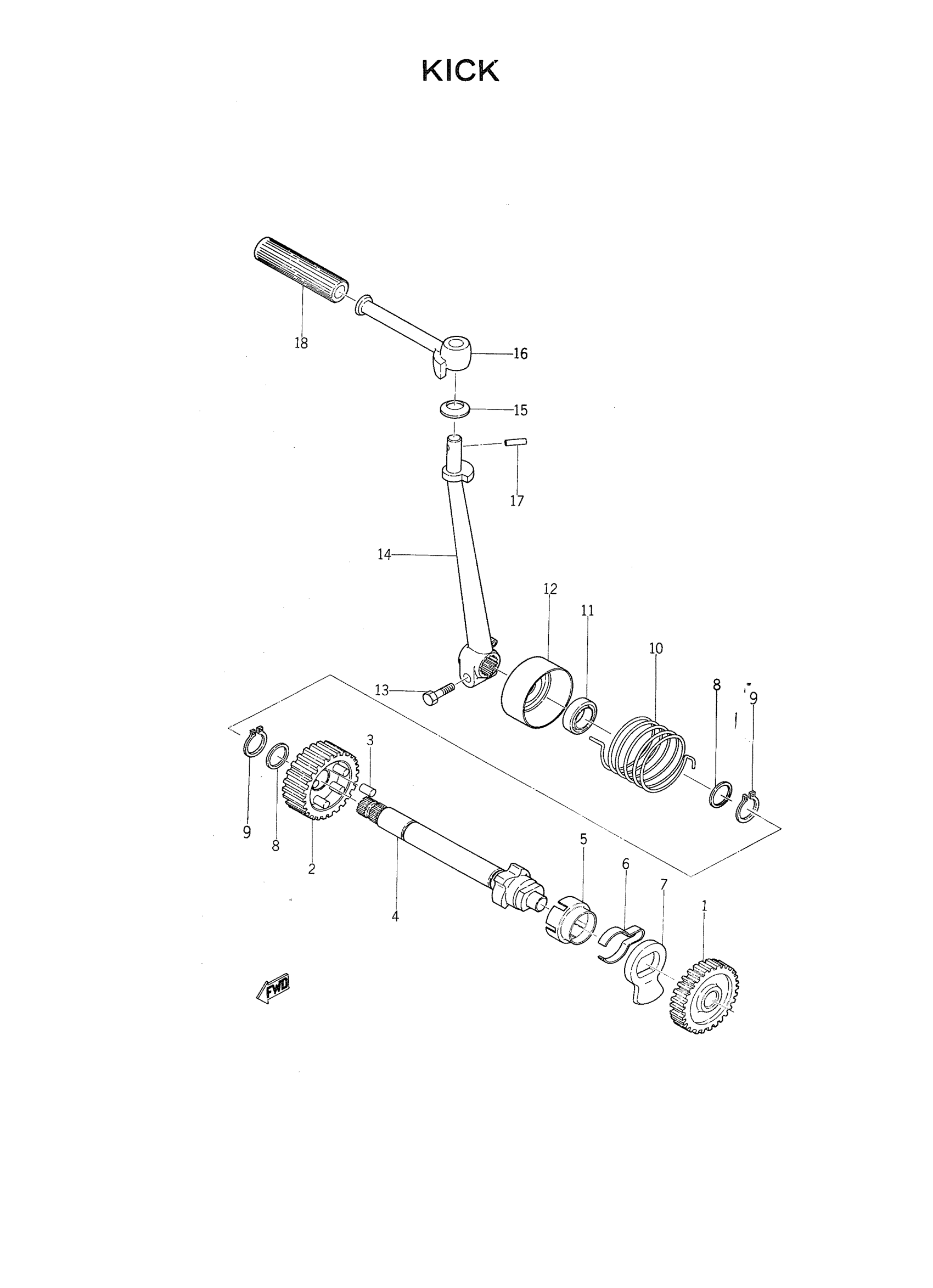

1967 Yamaha U5E (U5E) Kick Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, FREE

116-15658-00-00

1
Out of stock

2

GEAR, KICK

116-15461-00-00

1
Out of stock

3

PIN, DOWEL (296)

93606-07082-00

1

$6.68

In stock

4

KICK AXLE ASY

118-15660-01-00

1
Out of stock

5

RETAINER, KICK ROLLER

102-15689-00-00

1
Out of stock

6

SPRING,TORSION

90508-26044-00

1
Out of stock

7

STOPPER

102-15668-00-00

1
Out of stock

8

SHIM

131-15644-00-12

1
Out of stock

9

CIRCLIP(1AR)

99009-15400-00

1

$5.10

In stock

10

SPRING,TORSION

90508-26043-00

1
Out of stock

11

OIL SEAL (15X26X6-102)

93109-15001-00

1

$7.42

In stock

12

GUIDE, SPRING

131-15664-00-00

1
Out of stock

13

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

14

KICK CRANK

102-15610-00-00

1
Out of stock

15

WASHER,WAVE

90206-10014-00

1
Out of stock

16

. LEVER, KICK

122-15612-00-00

1
Out of stock

17

. PIN, DOWEL

93604-18017-00

1
Out of stock

18

COVER, KICK LEVER

156-15618-01-00

—

$6.43

In stock
