1967 Yamaha U5E (U5E) Crankcase Diagram

← All diagrams

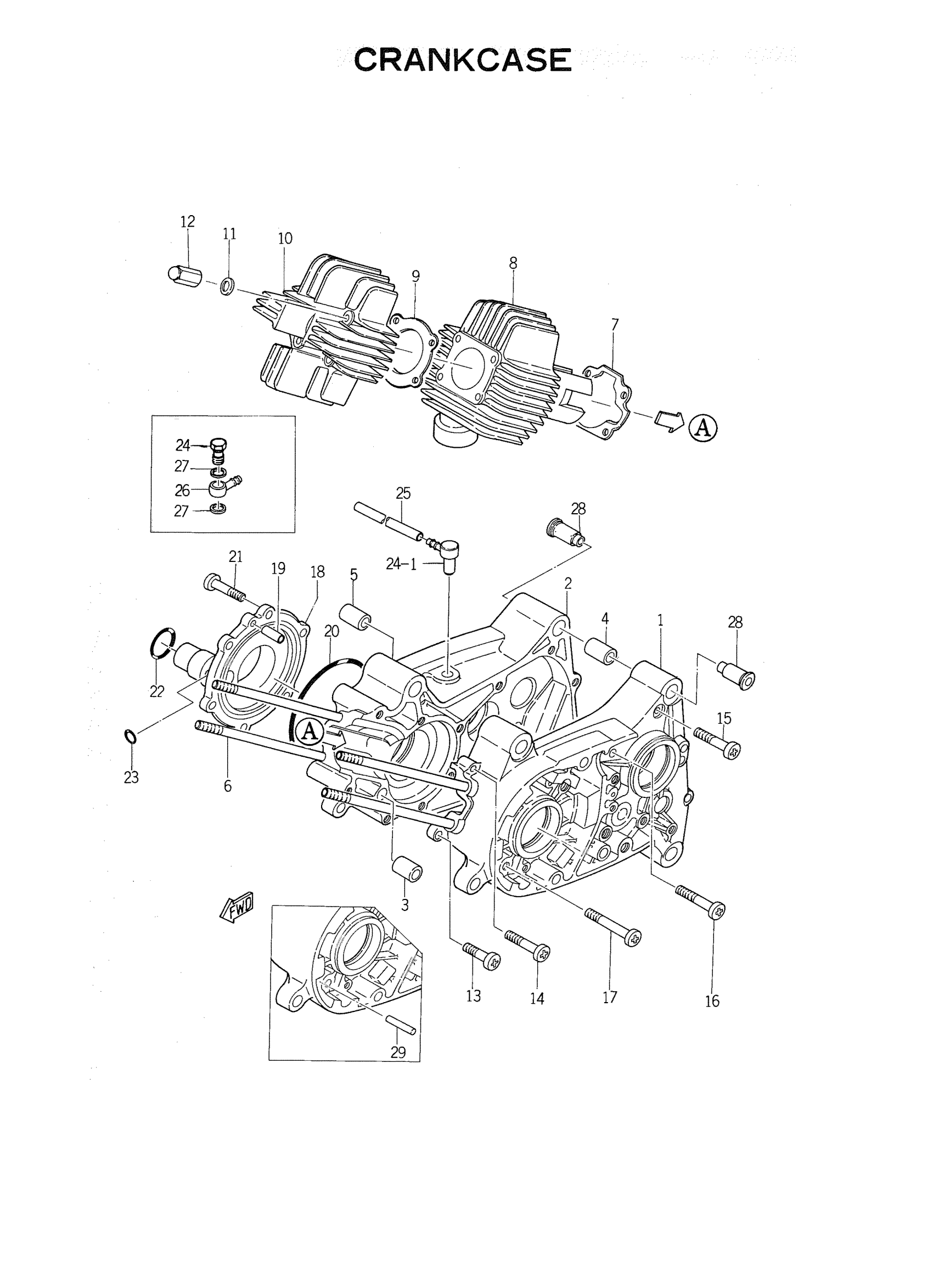

Find the part on the Crankcase diagram for your 1967 Yamaha U5E (U5E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1967 Yamaha U5E (U5E) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE 1

118-15111-01-00

1
Out of stock

2

CRANKCASE 2

117-15121-01-00

1
Out of stock

3

PIN, DOWEL(4XL)

93612-16254-00

1

$4.37

In stock

4

PIN, DOWEL

91810-07016-00

1
Out of stock

5

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

6

BOLT STUD 1091136100

90116-06026-00

1

$2.69

In stock

7

GASKET, CYLINDER

3LA-11351-10-00

1

$16.43

In stock

8

CYLINDER

116-11311-00-00

1
Out of stock

9

GASKET, CYLINDER HEAD 1

517-11181-01-00

1

$5.60

In stock

10

HEAD,CYLINDER 1

116-11111-02-94

1
Out of stock

11

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

12

NUT, CYLINDER HOLDING

126-11171-00-00

1
Out of stock

13

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

14

SCREW, PAN HEAD(6E0)

97885-06030-00

1

$4.62

In stock

15

SCREW PAN HEAD

98580-06040-00

1

$6.17

In stock

16

SCREW PAN HEAD

98580-06545-00

—

$5.78

In stock

17

SCREW PAN HEAD

98580-06565-00

—
Out of stock

18

COVER, VALVE

126-13551-00-00

1
Out of stock

19

PIN,DOWEL (137)

93604-14012-00

—

$1.88

In stock

20

O-RING

92310-98061-00

1
Out of stock

21

SCREW, PAN HEAD(6E5)

97880-06018-00

1

$4.19

In stock

22

O-RING (122)

93210-23029-00

—

$6.80

In stock

23

O-RING (122)

93210-23029-00

—

$6.80

In stock

24

BREATHER

583-15371-00-00

—
Out of stock

24

BREATHER

122-15371-90-00

1
Out of stock

25

PIPE, BREATHER

122-15373-00-00

1
Out of stock

26

COLLAR, UNION

122-15372-00-00

1
Out of stock

27

GASKET

90430-10028-00

1
Out of stock

28

DAMPER, ENGINE MOUNT

116-15316-00-00

1
Out of stock

29

PIN, DOWEL

93603-14026-00

—
Out of stock
