1967 Yamaha U5E (U5E) Crank Piston Diagram

← All diagrams

Find the part on the Crank Piston diagram for your 1967 Yamaha U5E (U5E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

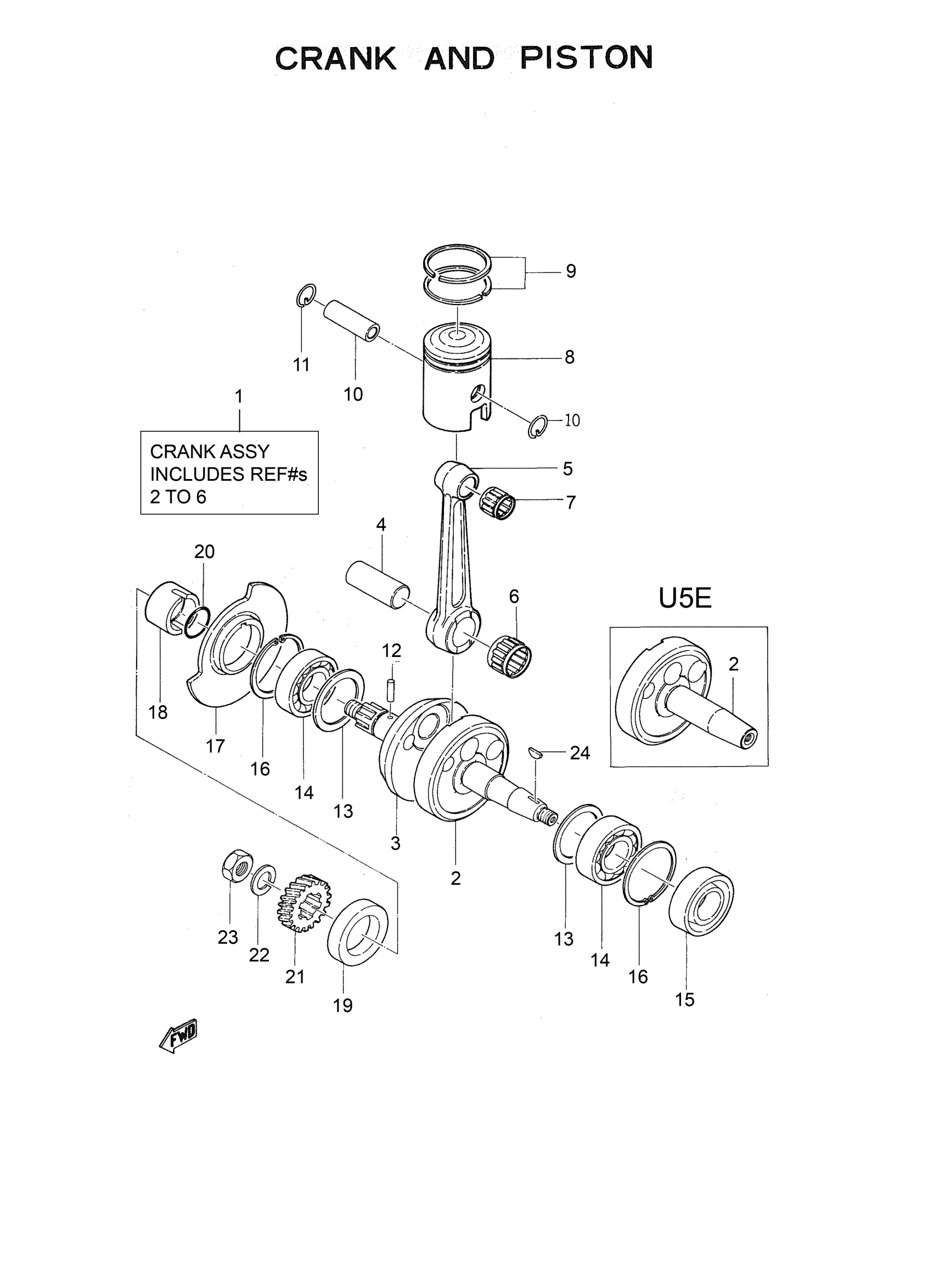

1967 Yamaha U5E (U5E) Crank Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

118-11400-00-00

1
Out of stock

2

CRANK 1 (LH)

118-11412-00-00

1
Out of stock

3

CRANK 2

109-11422-01-00

1
Out of stock

4

. PIN, CRANK 1

3R1-11681-00-00

1
Out of stock

5

ROD, CONNECTING

3R1-11651-01-00

1
Out of stock

6

BEARING, CYLINDRICAL(3TU)

93310-418C4-00

1
Out of stock

7

BRG,CYL-CAL ROLLER 5G TM

93310-11268-00

1

$30.25

In stock

8

PISTON 1 O/S 0.25

3E1-11635-00-00

1
Out of stock

8

PISTON 2 O/S 0.50

3E1-11636-00-00

1
Out of stock

8

PISTON STD

109-11651-02-96

1
Out of stock

9

PISTON RING SET (STD)

260-11601-02-00

1

$59.49

In stock

9

PISTON RING SET (1ST O/S)

260-11601-12-00

—

$47.78

In stock

9

PISTON RING SET (2ND O/S)

260-11601-22-00

—

$61.11

In stock

10

PIN, PISTON

102-11633-02-00

1

$5.11

In stock

11

CIRCLIP 132116340000

93450-13022-00

1
Out of stock

12

PIN,DOWEL (137)

93604-14012-00

—

$1.88

In stock

13

SHIM, CRANK 1

136-11561-00-04

1
Out of stock

14

BEARING(1GJ)

93306-20458-00

—

$36.19

In stock

15

OIL SEAL, SD-TYPE

93102-20039-00

1
Out of stock

16

CIRCLIP, INNER

93450-47011-00

1
Out of stock

17

VALVE,ROTARY

116-13512-00-00

1
Out of stock

18

COLLAR, VALVE

122-13515-02-00

1
Out of stock

19

OIL SEAL (28X47X8-137)

93103-28012-00

—

$10.68

In stock

20

O-RING(3KX)

93210-180A6-00

—

$4.78

In stock

21

GEAR, PRI DRIVE

122-16111-00-00

1
Out of stock

23

NUT, HEXAGON

90170-12056-00

1
Out of stock

24

KEY WOODRUFF 146115450000

90280-03017-00

—

$5.78

In stock
