1967 Yamaha U5E (U5E) Headlight - Taillight Diagram

← All diagrams

Find the part on the Headlight - Taillight diagram for your 1967 Yamaha U5E (U5E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

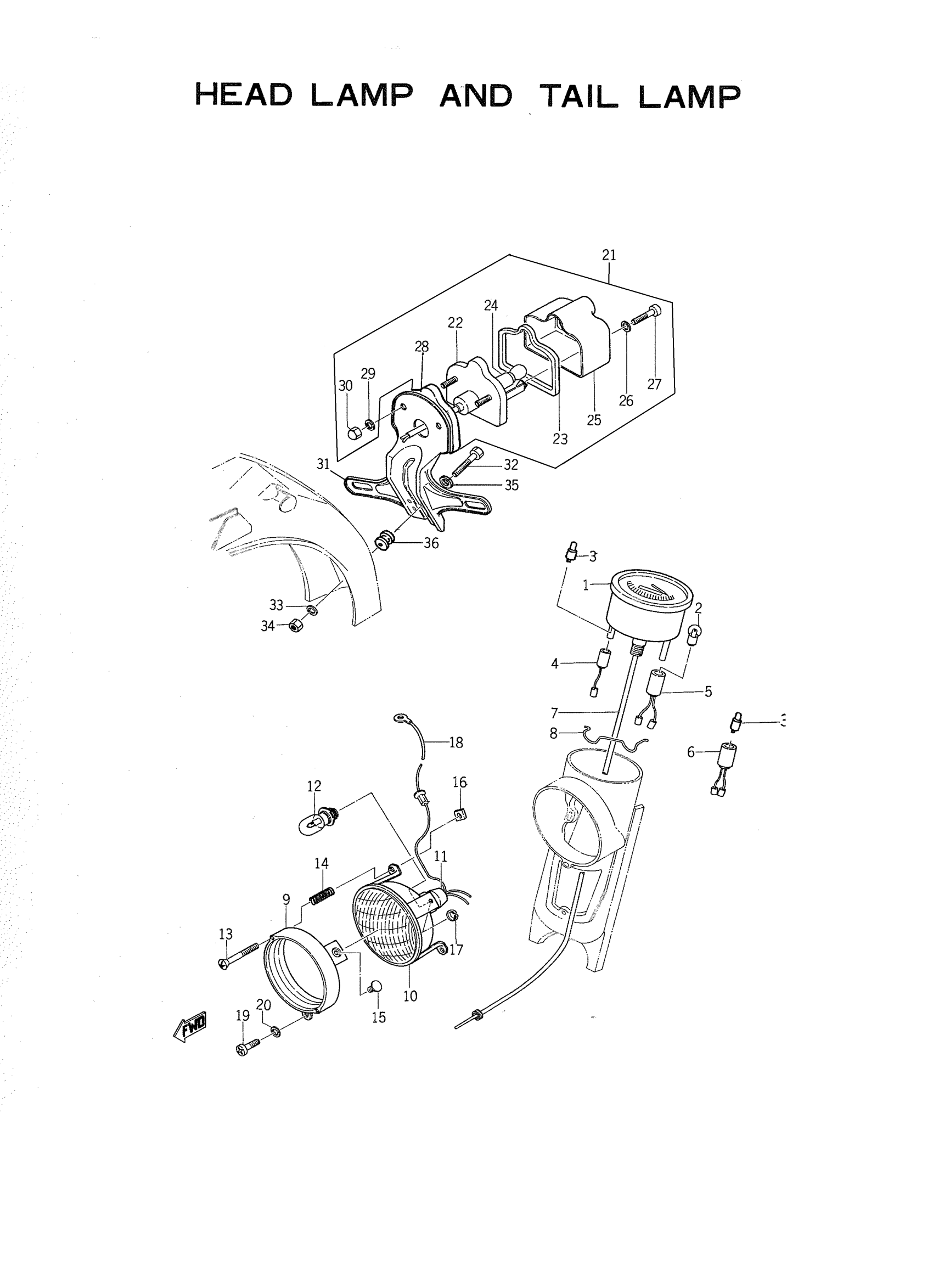

1967 Yamaha U5E (U5E) Headlight - Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

118-83510-70-00

1
Out of stock

2

BULB (12V3.4W)

123-83516-21-XX

1
Out of stock

3

BULB

256-84347-00-00

1
Out of stock

4

. SOCKET, METER

116-83536-10-00

1
Out of stock

5

. SOCKET, NEUTRAL

102-83517-00-00

1
Out of stock

6

. SOCKET, HIGH BEAM

116-83529-00-00

1
Out of stock

7

SPEEDOMETER CABLE ASSY

241-83550-03-00

1

$12.02

In stock

8

. SPRING, METER

116-83515-00-00

1
Out of stock

9

RIM, HEADLIGHT

116-84115-60-00

1
Out of stock

10

LENS ASSEMBLY

118-84120-60-00

1
Out of stock

11

SOCKET

116-84112-60-00

1
Out of stock

12

BULB, HEADLAMP

102-84114-00-00

1
Out of stock

13

SCREW, RIM ADJUSTING

116-84331-01-00

1
Out of stock

14

SPRING, ADJUSTING

116-84132-01-00

1
Out of stock

15

WASHER,SPECIAL

116-84138-00-00

1
Out of stock

16

NUT, ADJUST

116-84134-00-00

1
Out of stock

17

CIRCLIP(6L5)

99080-03600-00

1

$3.26

In stock

18

WIRE, EARTH

116-84113-00-00

1
Out of stock

19

SCREW, PAN HEAD

92503-05025-00

1
Out of stock

20

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

21

TAILLIGHT UNIT ASSEMBLY

118-84510-60-00

1
Out of stock

22

. BASE, TAILLAMP

117-84511-60-00

1
Out of stock

23

. SEAT, BASE

124-84512-60-00

1
Out of stock

24

. BULB, TAIL LAMP

137-84514-60-00

1
Out of stock

25

. LENS, TAILLIGHT

124-84521-60-00

1
Out of stock

26

. WASHER

124-84522-60-00

1
Out of stock

27

SCREW,PAN HEAD

92503-04015-00

1
Out of stock

28

. COVER, TAIL LAMP

124-84516-00-00

1
Out of stock

29

WASHER, TOOTH

92990-06300-00

1

$2.36

In stock

30

. NUT, CROWN

92903-06700-00

1
Out of stock

31

BRACKET,LICENCE

117-84551-60-81

1
Out of stock

32

BOLT, FITTING

132-84572-60-00

1
Out of stock

33

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

34

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

35

WASHER, SPECIAL

132-84754-60-00

1
Out of stock

36

DAMPER

132-84753-60-00

1
Out of stock
