1967 Yamaha U5E (U5E) Electrical Diagram

← All diagrams

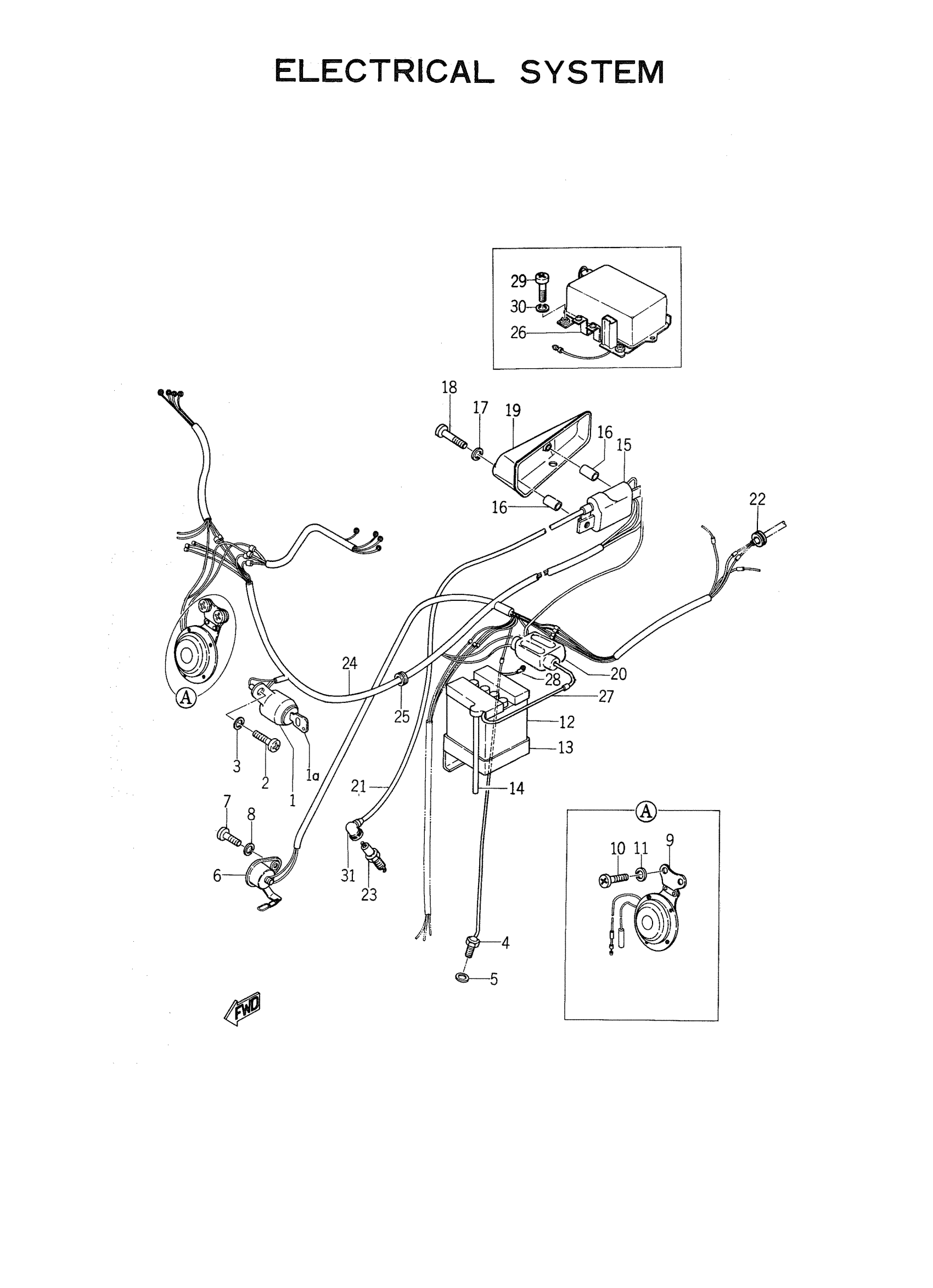

Find the part on the Electrical diagram for your 1967 Yamaha U5E (U5E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1967 Yamaha U5E (U5E) Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MAIN SWITCH ASY

118-82508-10-00

1
Out of stock

1

. KEY, MAIN SWITCH

118-82511-60-00

1
Out of stock

2

SCREW, PAN

98507-06100-00

1

$6.80

In stock

3

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

4

NEUTRAL SWITCH ASSEMBLY

116-82540-00-00

1
Out of stock

5

GASKET

296-82543-00-00

—

$4.40

In stock

6

STOPSWITCHASSY

122-82530-02-00

1
Out of stock

7

SCREW,PAN HEAD

92503-05012-00

1
Out of stock

8

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

9

HORN

118-83371-21-00

1
Out of stock

10

SCREW, PAN

98517-06012-00

1

$3.14

In stock

11

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

12

12N5.5A3B YUASA BATTERY

12N-55A3B-Y0-00

1
Out of stock

13

SEAT, BATTERY

118-82122-00-00

1
Out of stock

14

HOSE (L1500)

90445-084J0-00

1

$16.40

In stock

15

IGNITION COIL ASSEMBLY

118-82310-71-00

1
Out of stock

16

COLLAR

90387-05015-00

1
Out of stock

17

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

18

SCREW

92501-05040-00

1
Out of stock

19

IGNITION COIL ASY

116-82315-41-00

1
Out of stock

20

FUSE HOLDER ASSY

2UJ-82150-02-00

—
Out of stock

21

CORD, HIGH TENSION

116-82341-00-00

1
Out of stock

22

GROMMET 152845180000

90480-12013-00

—
Out of stock

23

B7HS NGK 4PK

B7H-S0000-00-00

1

$4.95

In stock

24

WIRE, HARNESS ASSY

118-82590-10-00

1
Out of stock

25

GROMMET, WIRE HARNESS

102-82598-00-00

1
Out of stock

26

VOLTAGE REG ASY

118-81910-11-00

1
Out of stock

27

WIRE, PLUS

118-82115-00-00

1
Out of stock

28

WIRE, MINUS LEAD

118-82116-00-00

1
Out of stock

29

SCREW, PAN

98507-06014-00

—

$6.18

In stock

30

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

31

PLUG CAP ASSY

166-82341-00-00

1
Out of stock
