1967 Yamaha U5E (U5E) Generator Diagram

← All diagrams

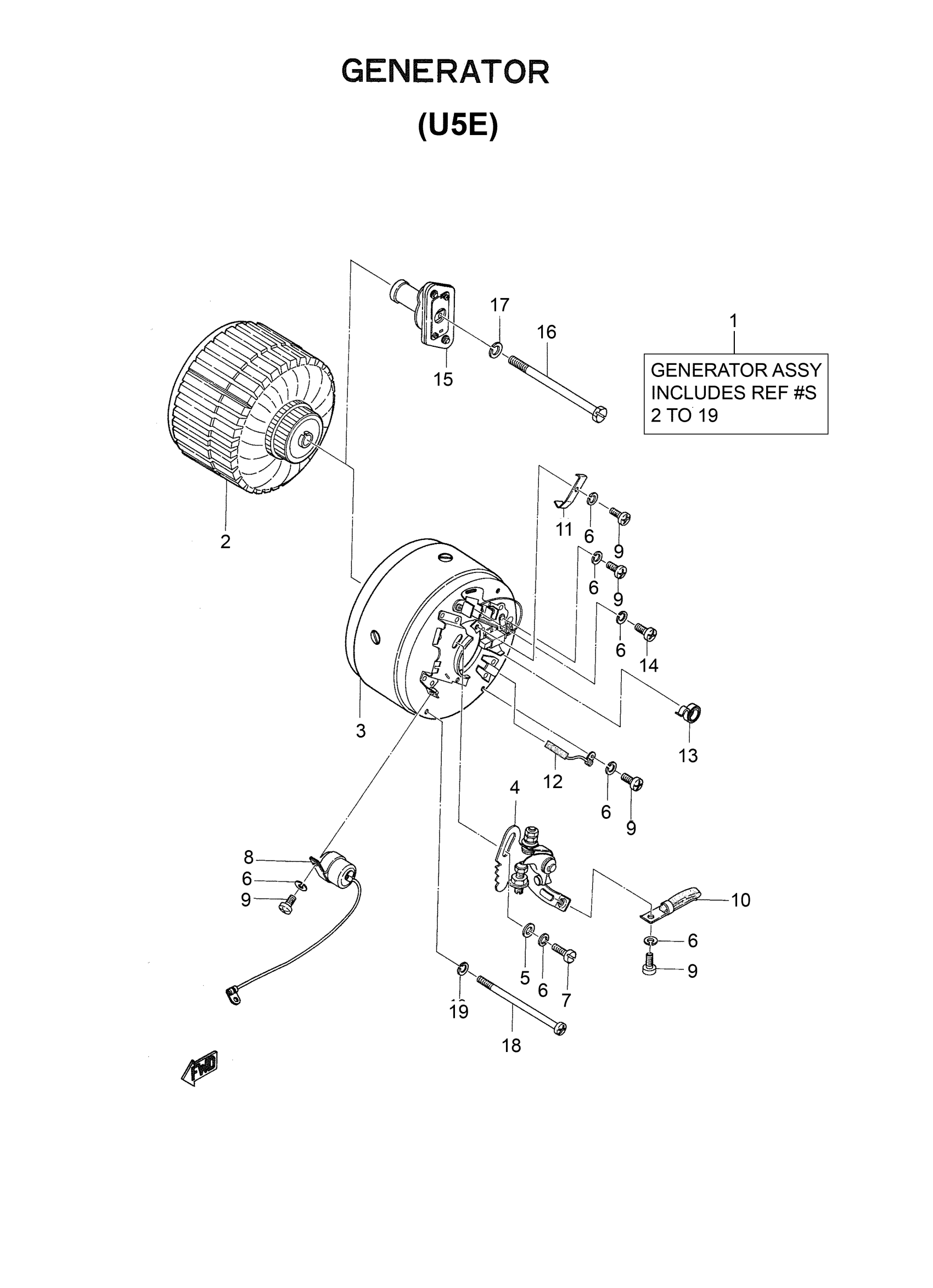

Find the part on the Generator diagram for your 1967 Yamaha U5E (U5E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1967 Yamaha U5E (U5E) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTER GEN ASY

189-81100-10-00

1
Out of stock

2

. ARMATURE

118-81155-10-00

1
Out of stock

3

STATOR ASSY

189-81110-10-00

1
Out of stock

4

. CONTACT BREAKER ASSY

118-81121-10-00

1
Out of stock

5

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

6

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

7

SCREW, PAN HEAD

92501-04008-00

1
Out of stock

8

CNDSR 2

278-81625-91-00

1
Out of stock

9

SCREW,PAN HEAD

164-81246-20-00

1
Out of stock

10

. LUBRICATOR

141-81131-10-00

1
Out of stock

11

. PLATE, TIMING

123-81132-10-00

1
Out of stock

12

.. BRUSH

141-81111-10-00

1
Out of stock

13

. SPRING, BRUSH

141-81113-10-00

1
Out of stock

14

GASKET, EXHAUST

98507-05008-00

1

$2.69

In stock

15

. GOVERNOR ASSY

123-81153-10-00

1
Out of stock

16

. BOLT

141-81152-10-00

1
Out of stock

17

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

18

SCREW,STATOR

136-81135-10-00

1
Out of stock

19

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock
