1976 Yamaha TZ350 (TZ350C) Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1976 Yamaha TZ350 (TZ350C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

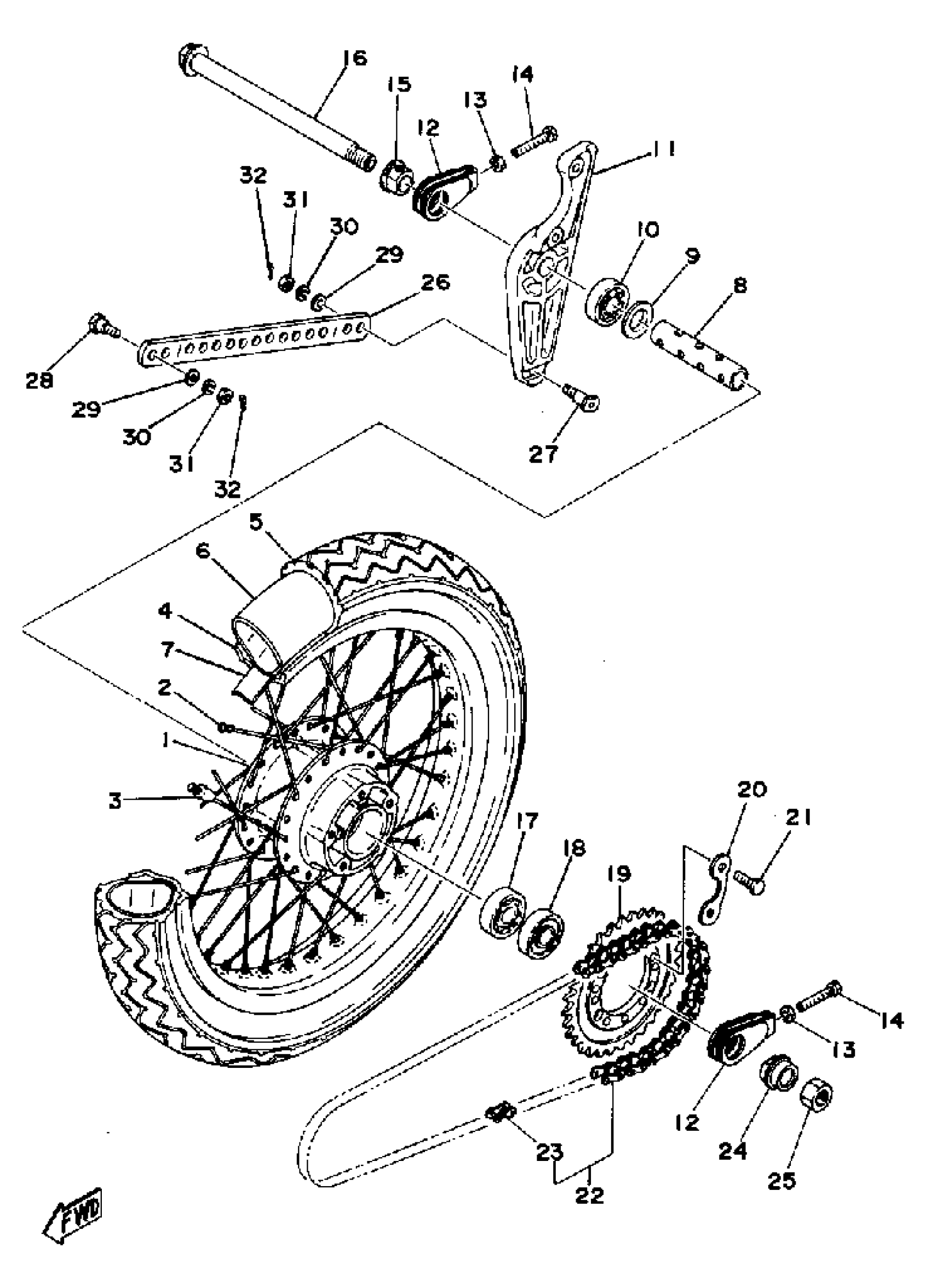

1976 Yamaha TZ350 (TZ350C) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

(1H3-25311-10-98)

1
Out of stock

2

SPOKE SET, REAR

(4A1-25304-00-00)

1
Out of stock

3

BALANCER, WHEEL

3HT-25398-00-00

1

$6.89

In stock

4

RIM 2.15X18

(94421-18178-00)

1
Out of stock

5

TIRE

94130-18054-00

1
Out of stock

5

UNAVAILABLE IN PRICE BOOK (3.20-18-4PR)

94132-18268-00

1
Out of stock

5

UNAVAILABLE IN PRICE BOOK (3.50-18-4PR)

94135-18267-00

1
Out of stock

6

TUBE (5H5)

94227-18195-00

1
Out of stock

6

UNAVAILABLE IN PRICE BOOK (3.20-18)

94232-18012-00

1
Out of stock

6

TUBE (2RH)

94232-18113-00

1
Out of stock

7

BAND, RIM (2J4)

94340-18086-00

1

$16.00

In stock

8

SPACER, BEARING

(1H3-25317-00-00)

1
Out of stock

9

FLANGE, SPACER

4V4-25315-00-00

1
Out of stock

10

BEARING (22K)

93306-20446-00

1
Out of stock

11

BRACKET, CALIPER

(1H3-25819-01-00)

1
Out of stock

12

PULLER, CHAIN 1

(409-25388-00-00)

1
Out of stock

13

. NUT

95380-08700-00

1

$3.07

In stock

14

BOLT

90101-08060-00

—

$4.92

In stock

15

WASHER, WHEEL

(240-25384-01-00)

1
Out of stock

16

AXLE, WHEEL

(240-25381-00-00)

1
Out of stock

17

—

$54.91

In stock

18

BEARING(3BC)

93306-30437-00

—

$55.54

In stock

19

SPROCKET,DRIVN 34T

240-25434-00-00

1
Out of stock

19

SPROCKET,DRIVN 34T

240-25434-00-00

1
Out of stock

19

SPROCKET,DRIVN 34T

240-25434-00-00

1
Out of stock

19

SPROCKET, DRIVEN (36T)

4TW-25436-02-00

1
Out of stock

20

WASHER, LOCK

143-25412-00-00

1
Out of stock

21

BOLT, FITTING

90109-08377-00

1
Out of stock

22

CHAIN 520TR-94L (DK520TR-94L)

94585-20094-00

1
Out of stock

23

JOINT CHAIN

(94645-20031-00)

1
Out of stock

24

COLLAR, WHEEL

(240-25377-01-00)

1
Out of stock

25

NUT, HEXAGON

90170-18165-00

—

$7.82

In stock

26

BAR, TENSION

(409-25371-00-00)

1
Out of stock

27

BOLT

(90109-08243-00)

1
Out of stock

28

BOLT

(90109-08379-00)

1
Out of stock

29

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

30

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

31

. NUT

95380-08700-00

1

$3.07

In stock

32

PIN, COTTER

91490-20025-00

—

$1.31

In stock
