1976 Yamaha TZ350 (TZ350C) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1976 Yamaha TZ350 (TZ350C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

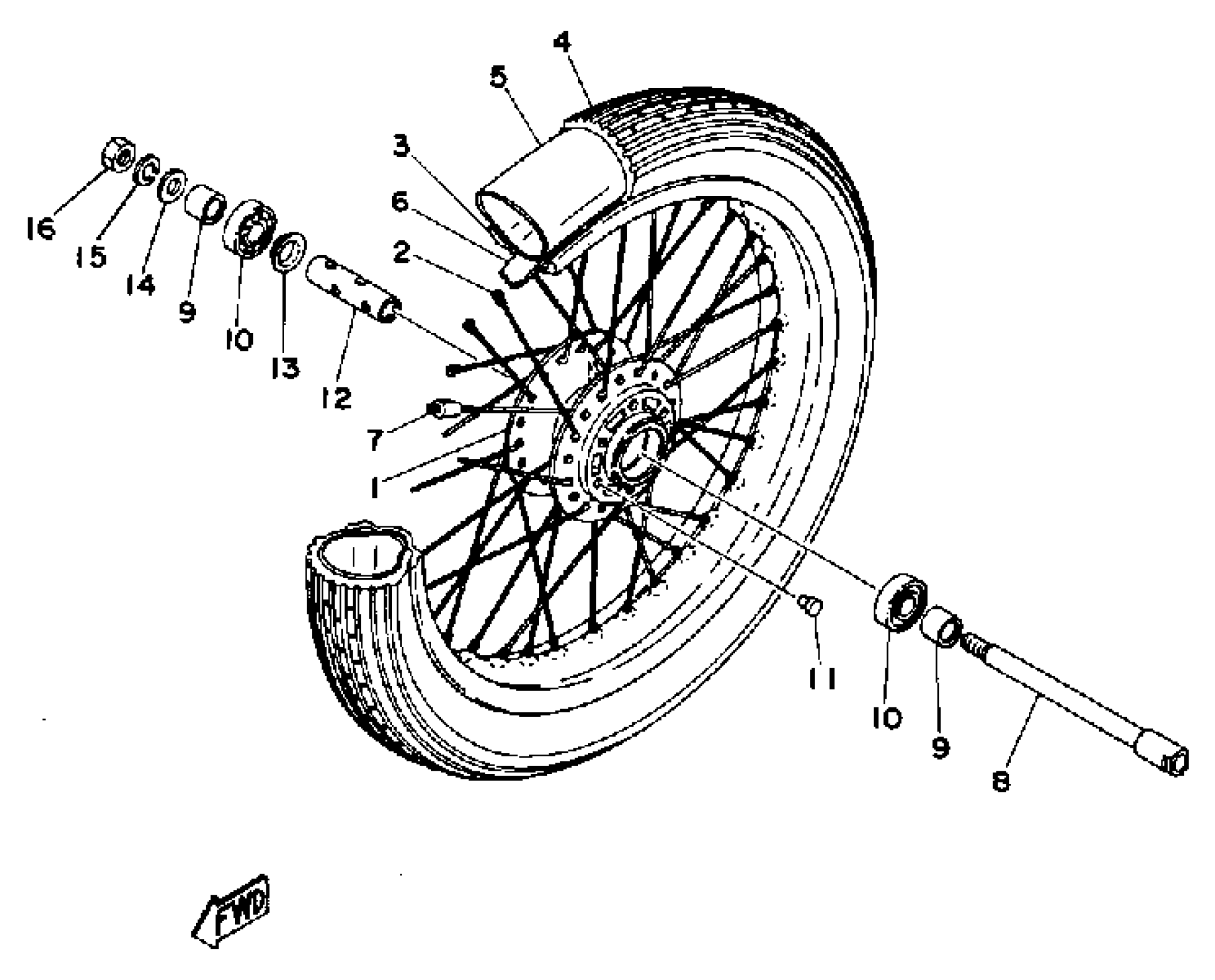

1976 Yamaha TZ350 (TZ350C) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

(1H3-25111-01-98)

1
Out of stock

2

SPOKE SET, FRONT

(409-25104-00-00)

1
Out of stock

3

RIM 1.85X18

(94418-18290-00)

1
Out of stock

4

TIRE

94127-18053-00

1
Out of stock

4

UNAVAILABLE IN PRICE BOOK (2.75-18)

94130-18080-00

1
Out of stock

4

UNAVAILABLE IN PRICE BOOK (3.00-18)

94130-18266-00

1
Out of stock

5

TUBE

(94227-18010-00)

1
Out of stock

5

TUBE (5H5)

94227-18195-00

1
Out of stock

6

BAND, RIM (2J4)

94340-18086-00

1

$16.00

In stock

7

BALANCER, WHEEL

3HT-25398-00-00

1

$6.89

In stock

8

AXLE, WHEEL

(409-25181-00-00)

1
Out of stock

9

COLLAR

(90387-17245-00)

1
Out of stock

10

BEARING(4HM)

93306-30317-00

1

$33.54

In stock

11

PLUG (17J)

90338-07124-00

1

$8.55

In stock

12

SPACER, BEARING

(409-25117-00-00)

1
Out of stock

13

FLANGE, SPACER

146-25315-00-00

—

$6.38

In stock

14

WASHER, PLAIN

92990-14200-00

—

$1.71

In stock

15

WASHER(6TC)

92907-14100-00

—

$5.62

In stock

16

NUT(6TC)

95337-14600-00

—

$10.25

In stock
