1976 Yamaha TZ350 (TZ350C) Front Fork Diagram

← All diagrams

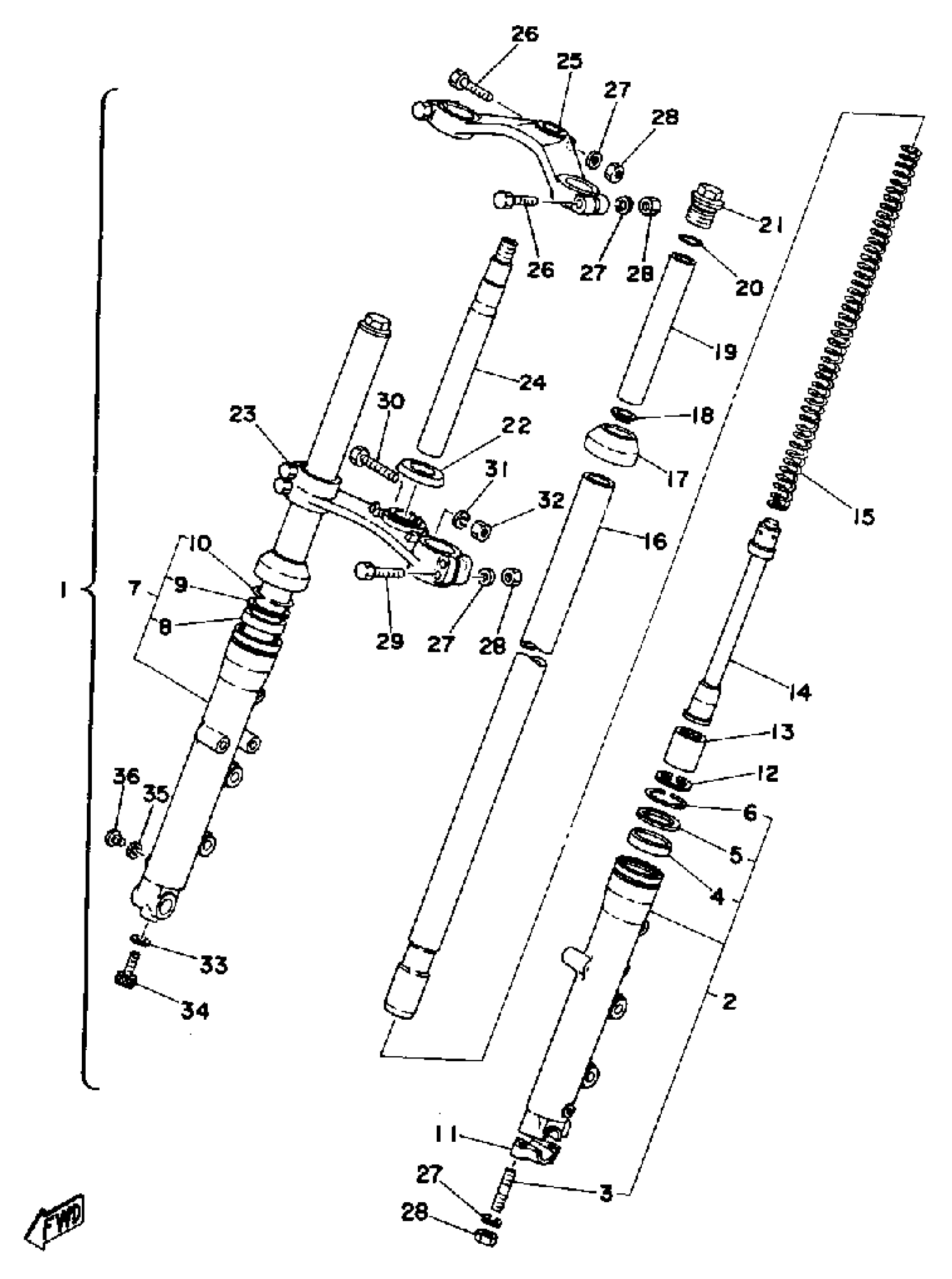

Find the part on the Front Fork diagram for your 1976 Yamaha TZ350 (TZ350C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha TZ350 (TZ350C) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(1H3-23101-01-00)

1
Out of stock

2

TUBE, OUTER 1

(1H3-23126-00-00)

1
Out of stock

3

BOLT, STUD (278)

90116-08261-00

1
Out of stock

4

OIL SEAL

1T3-23145-00-00

1

$14.25

In stock

5

WASHER, OIL SEAL

341-23146-50-00

1

$8.72

In stock

6

CLIP, OIL SEAL

341-23156-50-00

1

$29.03

In stock

7

TUBE, OUTER 2

(1H3-23136-00-00)

1
Out of stock

8

OIL SEAL

1T3-23145-00-00

1

$14.25

In stock

9

WASHER, OIL SEAL

341-23146-50-00

1

$8.72

In stock

10

CLIP, OIL SEAL

341-23156-50-00

1

$29.03

In stock

11

HOLDER,AXLE

341-23167-50-00

—
Out of stock

12

CIRCLIP, INNER

(93450-30039-00)

1
Out of stock

13

PISTON, FRONT FORK

(1H3-23171-00-00)

1
Out of stock

14

CYLINDER, FRTFRK

(1H3-23170-01-00)

1
Out of stock

15

SPRING, FRONT FORK

(1H3-23141-00-00)

1
Out of stock

16

TUBE, INNER 1

(1H3-23124-00-00)

1
Out of stock

17

SEAL, DUST

(1H3-23144-00-00)

1
Out of stock

18

. SEAT, SPRING UPPER

583-23142-00-00

1
Out of stock

19

SPACER

(1H3-23118-00-00)

1
Out of stock

20

GASKET

240-23114-00-00

—

$12.27

In stock

21

BOLT, CAP

(1H3-23111-00-00)

1
Out of stock

22

SEAL, DUST

164-23462-00-00

—

$6.42

In stock

23

UNDER BRACKET

(1H3-23340-00-00)

1
Out of stock

24

SHAFT, STEERING

(1H3-23341-00-00)

1
Out of stock

25

CROWN, HANDLE

(1H3-23435-00-00)

1
Out of stock

26

BOLT

90101-08263-00

1
Out of stock

27

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

28

NUT, SELF-LOCKING (3Y2)

90185-08089-00

—

$7.31

In stock

29

BOLT, FLAT HEAD

(97281-08055-00)

1
Out of stock

30

BOLT 2

(322-23356-00-00)

1
Out of stock

31

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

31

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

32

NUT

(322-23357-00-00)

1
Out of stock

33

GASKET

509-23158-L0-00

—

$14.34

In stock

34

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

35

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

36

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

36

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock
