1974 Yamaha TY80 (TY80A) Frame-Side Cover Diagram

← All diagrams

Find the part on the Frame-Side Cover diagram for your 1974 Yamaha TY80 (TY80A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

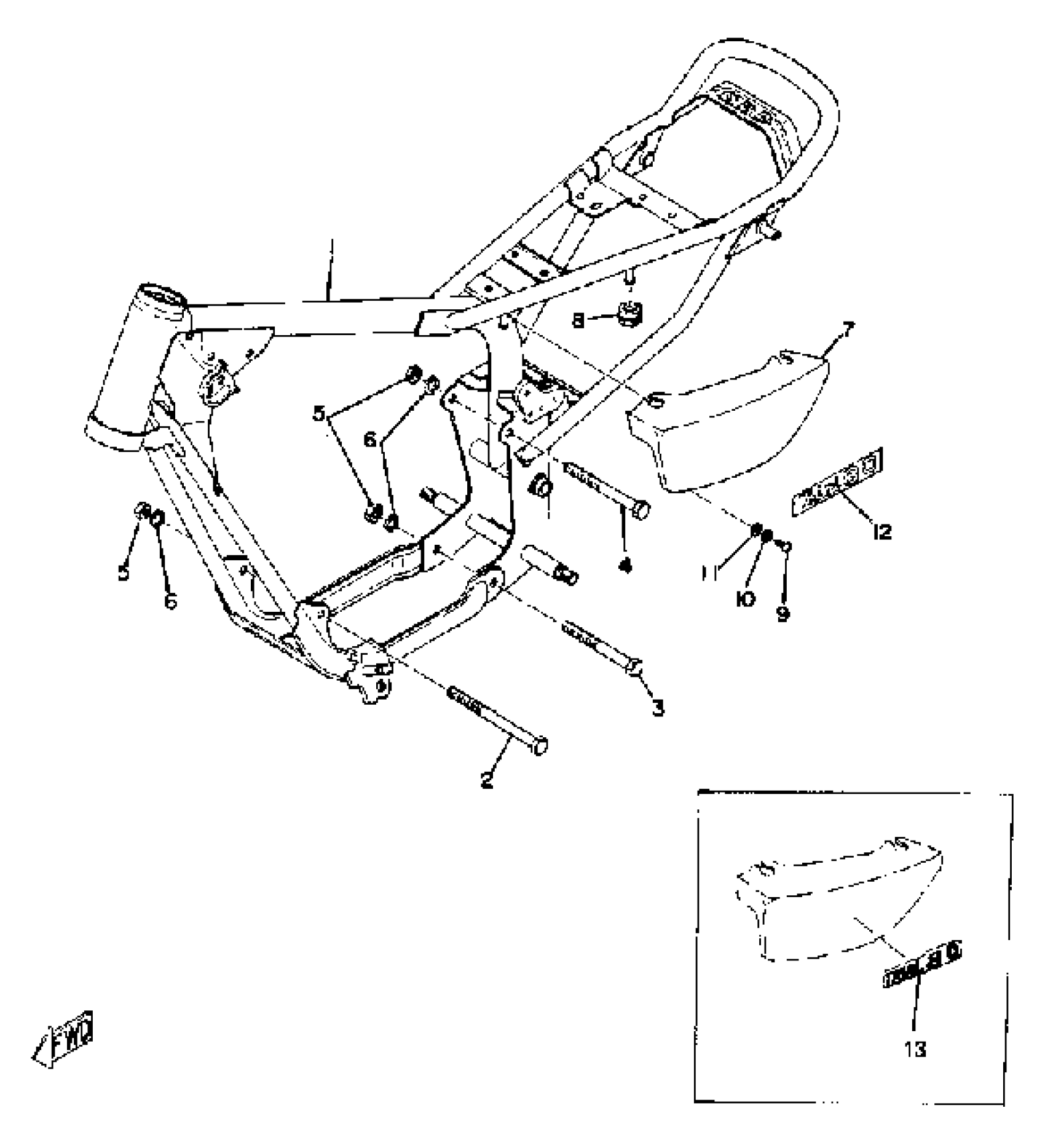

1974 Yamaha TY80 (TY80A) Frame-Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(451-21110-01-35)

1
Out of stock

2

BOLT, FLANGE(4EM)

95817-08120-00

1

$3.83

In stock

3

BOLT (97321-08090)

97023-08090-00

1
Out of stock

4

BOLT, FLANGE(8BT)

95817-08095-00

1
Out of stock

5

NUT(6L2)

95333-08600-00

1

$3.20

In stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

COVER, SIDE 1

(451-21711-00-00)

1
Out of stock

8

DAMPER, SIDE COVER (437)

90480-12053-00

1

$5.78

In stock

9

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

10

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

11

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

12

EMBLEM 7

451-21787-00-00

1
Out of stock

13

EMBLEM, PROTECTOR

451-14729-31-00

1
Out of stock
