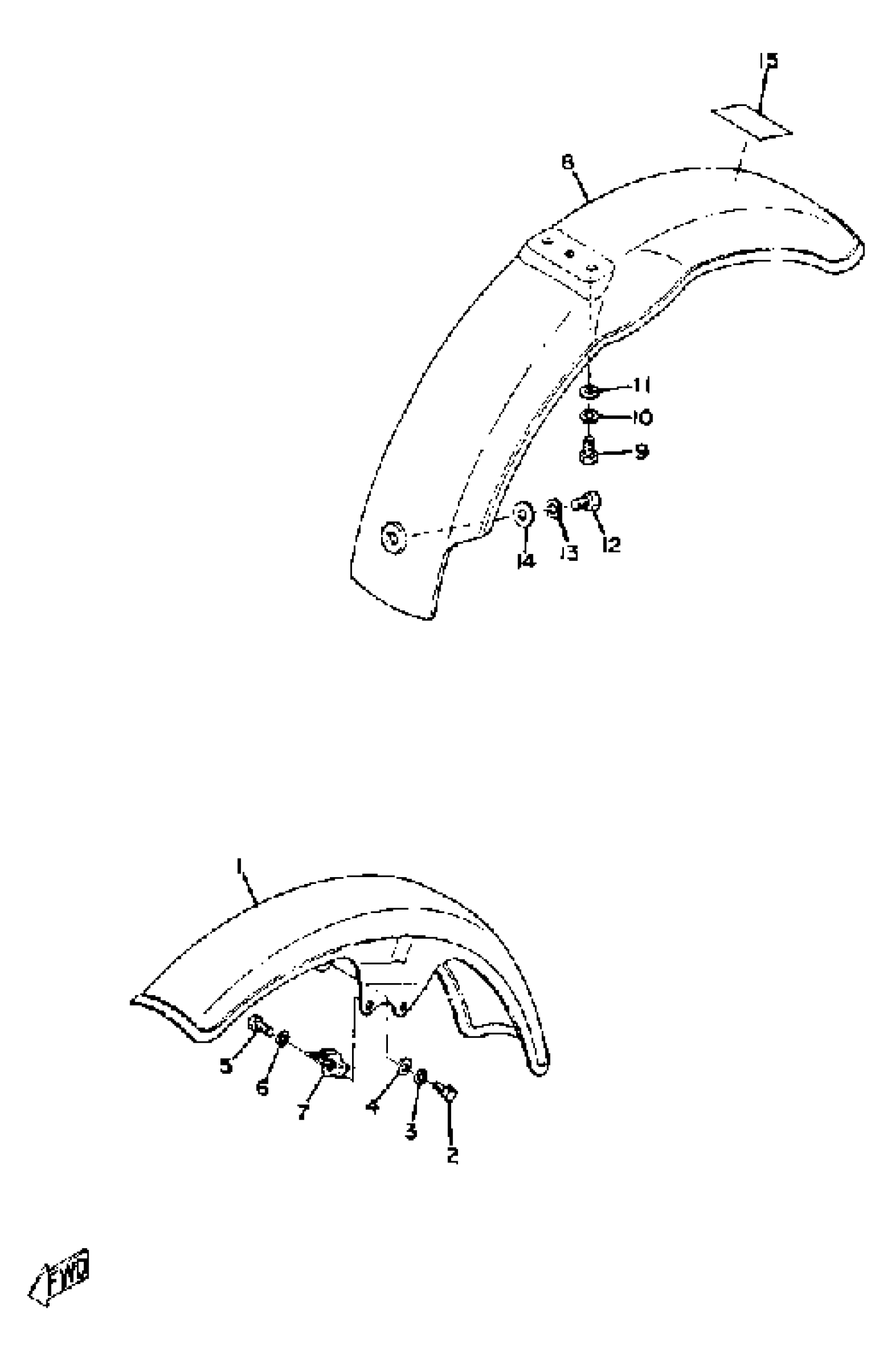

Yamaha TY80A (TY80) 1974 FRONT FENDER-REAR FENDER Diagram

#

Description

Price

1

FENDER, FRONT

451-21511-01-00

Unavailable

2

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

3

WASHER, SPRING

92995-06100-00

$2.95

4

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

5

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

6

WASHER, SPRING

92995-06100-00

$2.95

7

HOLDER, CABLE 1

(451-23318-00-00)

Unavailable

8

FENDER, REAR

451-21611-00-00

Unavailable

9

BOLT (661)

97013-06012-00

$4.40

10

WASHER, SPRING

92995-06100-00

$2.95

11

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

12

BOLT (661)

97013-06012-00

$4.40

13

WASHER, SPRING

92995-06100-00

$2.95

14

WASHER, PLATE

90201-06380-00

$0.54

15

TOOL

UNA-VAILA-BL-EI

Unavailable
