1974 Yamaha TY80 (TY80A) Handle-Wire Diagram

← All diagrams

Find the part on the Handle-Wire diagram for your 1974 Yamaha TY80 (TY80A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

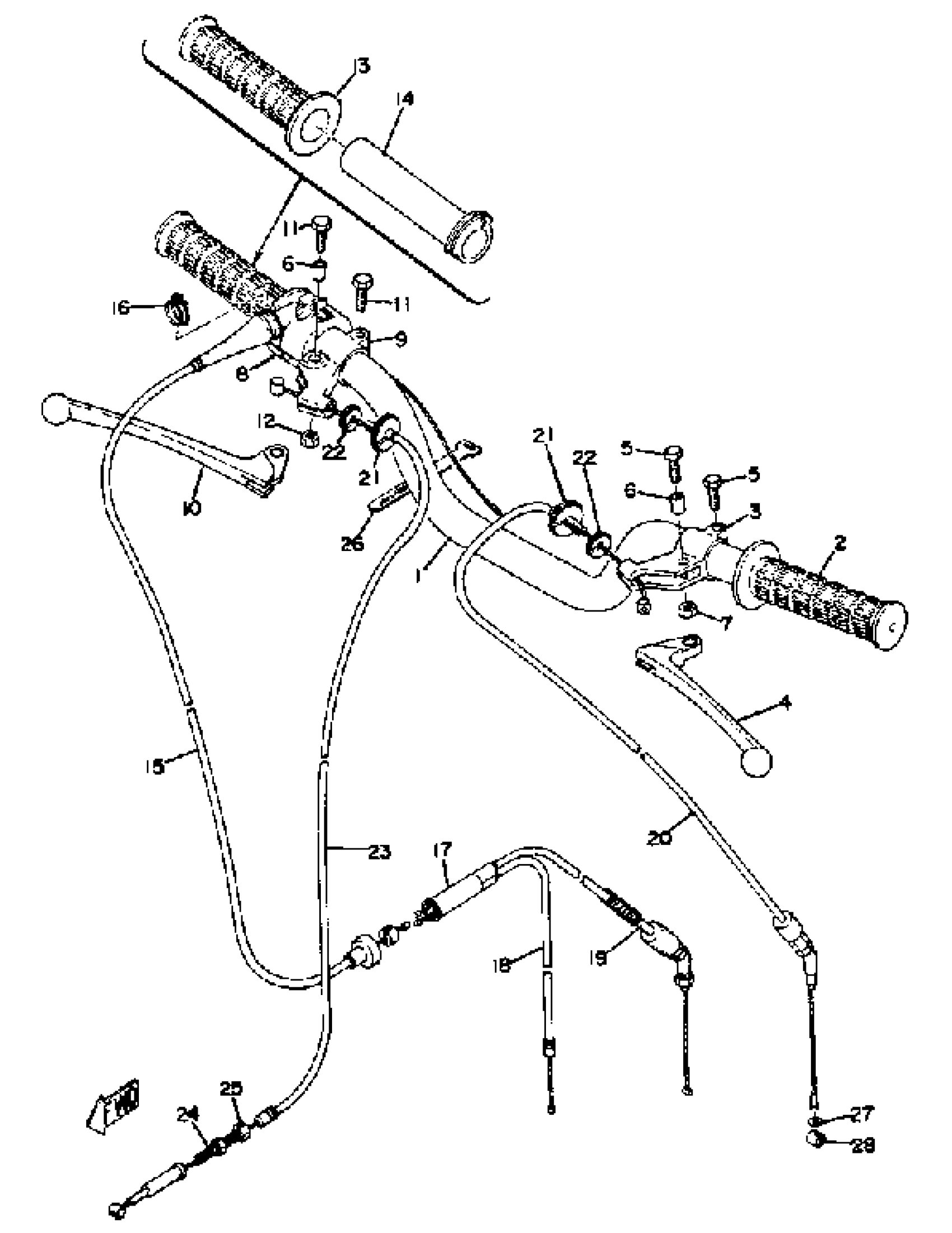

1974 Yamaha TY80 (TY80A) Handle-Wire Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER HOLDER ASSY 1

214-82910-07-00

1
Out of stock

1

HANDLEBAR

451-26111-00-00

1
Out of stock

2

LEVER HOLDER ASSY 2

233-82920-32-00

1
Out of stock

2

GRIP LH

341-26241-00-00

1
Out of stock

3

HOLDER, LEVER (L.H)

214-82911-01-00

1

$48.32

In stock

4

LEVER(L.H)

214-83912-00-00

1

$19.48

In stock

5

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

6

COLLAR, LEVER

214-83913-00-00

1

$6.49

In stock

7

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

8

SWITCH, HANDLE 1

462-83976-01-00

1
Out of stock

9

HOLDER, LEVER (R.H)

233-82921-31-00

1

$58.60

In stock

10

LEVER(R.H)

233-83922-30-00

1

$19.29

In stock

11

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

12

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

13

GRIP RH

341-26242-01-00

1
Out of stock

14

TUBE, THROTTLE GUIDE

434-26243-12-00

—
Out of stock

15

CABLE, THROTTLE 1

451-26311-01-00

1
Out of stock

16

CLAMP, HOSE

90460-12268-00

1
Out of stock

17

CONNECTER, CABLE

4U1-26261-00-00

—

$33.76

In stock

18

THROTTLE CABLE 2

451-26312-50-00

1
Out of stock

19

CABLE, PUMP

451-26321-50-00

1
Out of stock

20

CABLE, CLUTCH

451-26335-01-00

1
Out of stock

21

BOLT

90123-08002-00

—

$8.93

In stock

22

NUT

90179-08030-00

—

$3.78

In stock

23

CABLE, BRAKE

451-26341-00-00

1
Out of stock

24

NUT (109-26344-00)

90179-06143-00

—

$6.68

In stock

25

BOLT (109-26345-00)

90123-06011-00

—

$14.12

In stock

26

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

27

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

28

END, WIRE

164-26363-00-00

—
Out of stock
