1986 Yamaha Trial (TY350S) Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 1986 Yamaha Trial (TY350S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

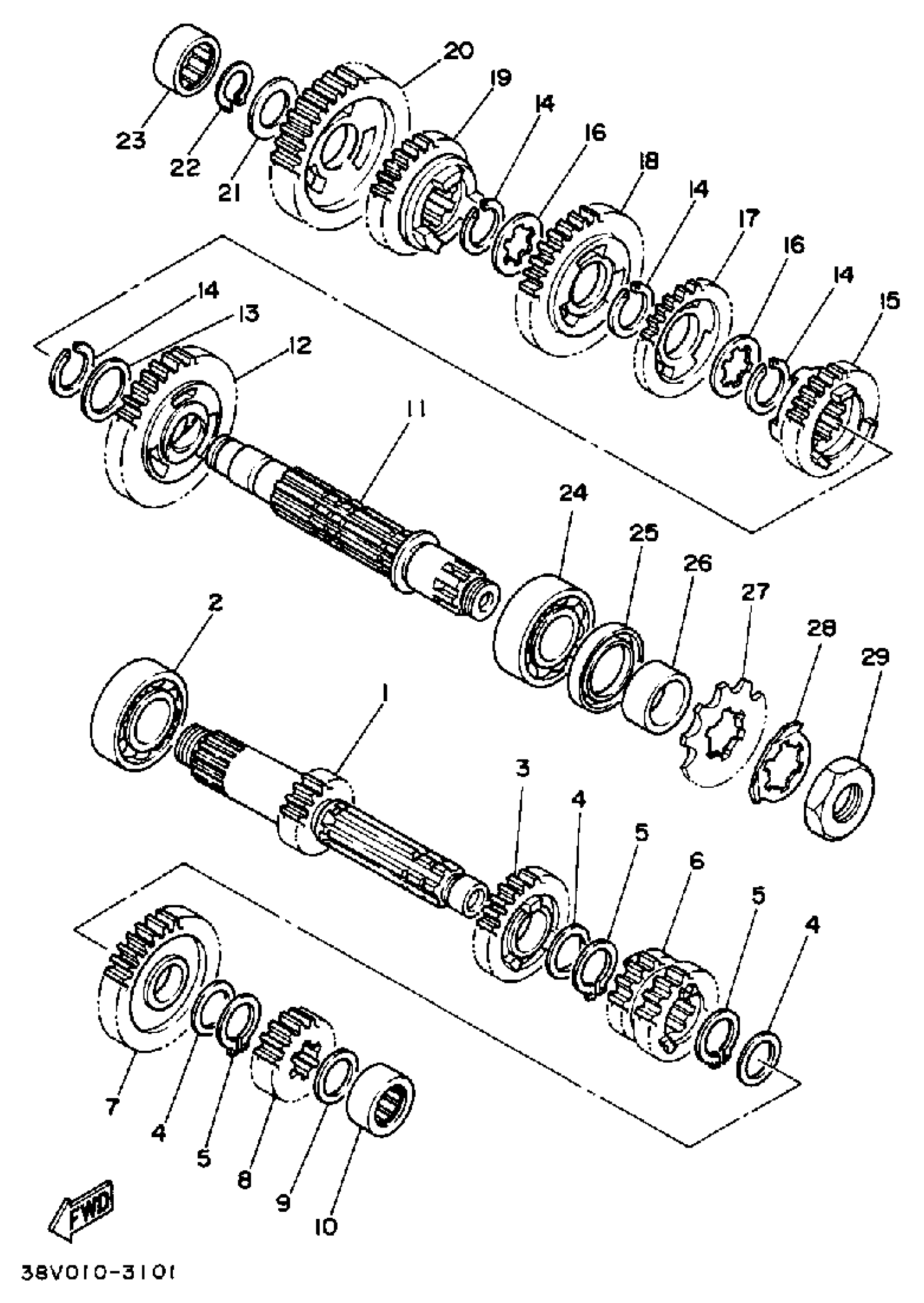

1986 Yamaha Trial (TY350S) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, DRIVE

1RX-17421-00-00

1
Out of stock

2

BEARING (23X)

93300-20501-00

1

$60.97

In stock

3

GEAR, 5TH PINION

(38V-17151-00-00)

1
Out of stock

4

WASHER, PLATE (537)

90201-22555-00

1
Out of stock

5

CIRCLIP (537)

93410-22039-00

1

$6.17

In stock

6

GEAR, 3RD PINION

(38V-17131-00-00)

1
Out of stock

7

GEAR, 6TH PINION

(38V-17161-00-00)

1
Out of stock

8

GEAR, 2ND WHEEL

38V-17221-00-00

1
Out of stock

9

WASHER, PLATE (30X)

90201-177G4-00

1
Out of stock

10

1

$63.35

In stock

11

AXLE, DRIVE

1RX-17421-00-00

1
Out of stock

12

GEAR, 2ND WHEEL

38V-17221-00-00

1
Out of stock

13

WASHER, PLATE(59W)

90201-253K0-00

1

$6.18

In stock

14

CIRCLIP (4L0)

93440-25084-00

1

$3.96

In stock

15

GEAR, 6TH WHEEL

(38V-17261-00-00)

1
Out of stock

16

WASHER 434172160000

90209-22082-00

—

$7.89

In stock

17

GEAR, 4TH WHEEL

38V-17241-00-00

1
Out of stock

18

GEAR, 3RD WHEEL

(38V-17231-00-00)

1
Out of stock

19

GEAR, 5TH WHEEL

(38V-17251-00-00)

1
Out of stock

20

GEAR, 2ND WHEEL

38V-17221-00-00

1
Out of stock

21

WASHER PLATE 168171160000

90201-20278-00

—
Out of stock

22

CIRCLIP (525)

93410-20038-00

—

$2.62

In stock

23

BEARING (2X7)

93311-62035-00

—

$48.30

In stock

24

BEARING (23X)

93300-20501-00

1

$60.97

In stock

25

OIL SEAL (697)

93102-32M07-00

—

$16.32

In stock

26

COLLAR

90387-250K3-00

1
Out of stock

27

SPROCKET, DRIVE

93834-10002-00

1
Out of stock

27

SPROCKET, DRIVE 11T

93834-11008-00

1
Out of stock

27

—

$17.88

In stock

28

WASHER, LOCK

90215-21246-00

1
Out of stock

29

NUT (2K7)

90179-20255-00

—

$9.40

In stock
