1986 Yamaha Trial (TY350S) Shift Shaft Diagram

← All diagrams

Find the part on the Shift Shaft diagram for your 1986 Yamaha Trial (TY350S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

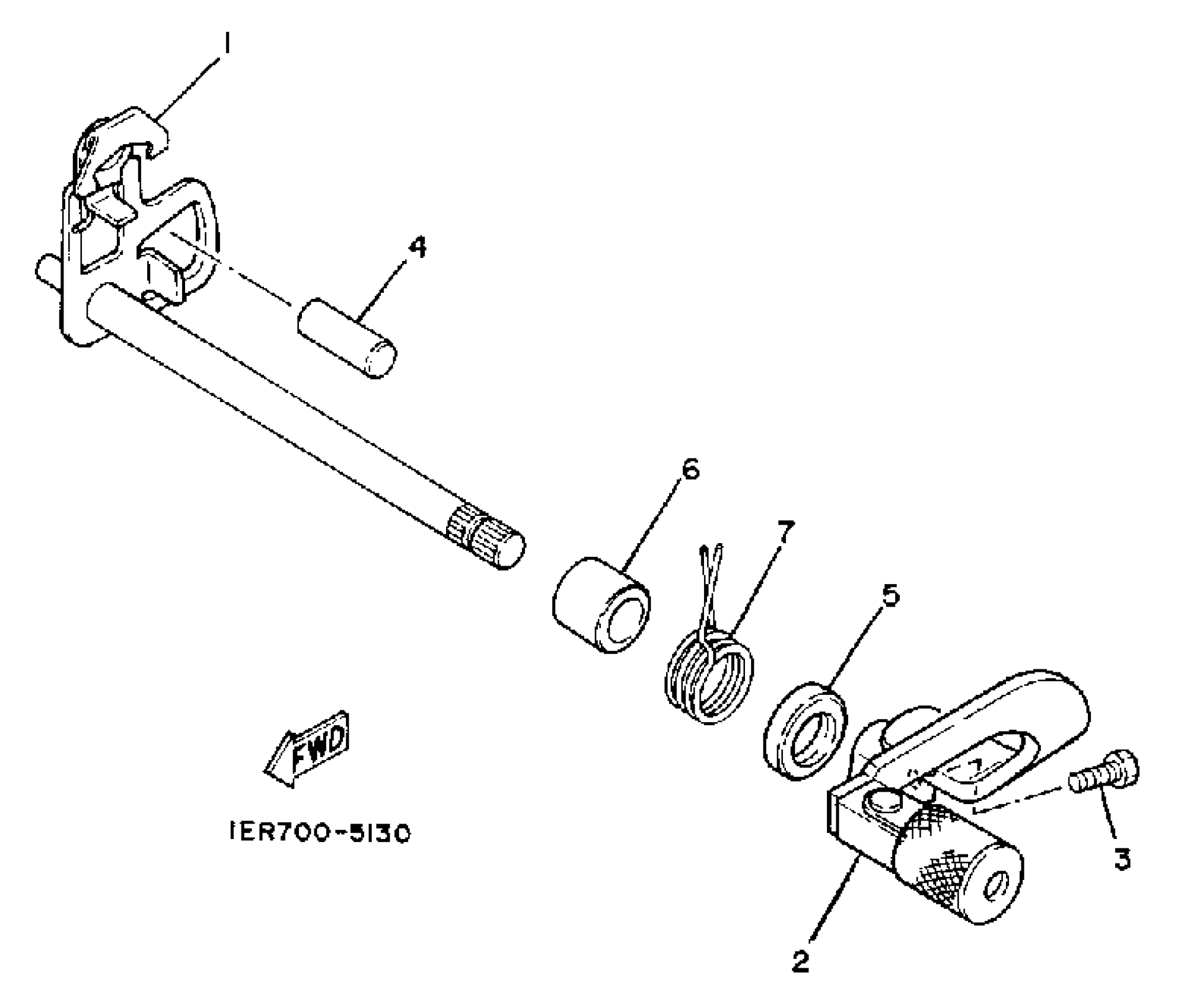

1986 Yamaha Trial (TY350S) Shift Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT SHAFT ASSEMBLY

38V-18101-02-00

1
Out of stock

2

CHANGE PEDAL ASSEMBLY

59N-18110-00-00

1
Out of stock

3

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

4

PIN, DOWEL

93608-25150-00

1
Out of stock

5

SEAL, OIL (30X)

93102-12321-00

1

$10.14

In stock

6

SPACER

90560-12171-00

1
Out of stock

7

SPRING, TORSION

90508-29361-00

1
Out of stock
