1986 Yamaha Trial (TY350S) Clutch Diagram

← All diagrams

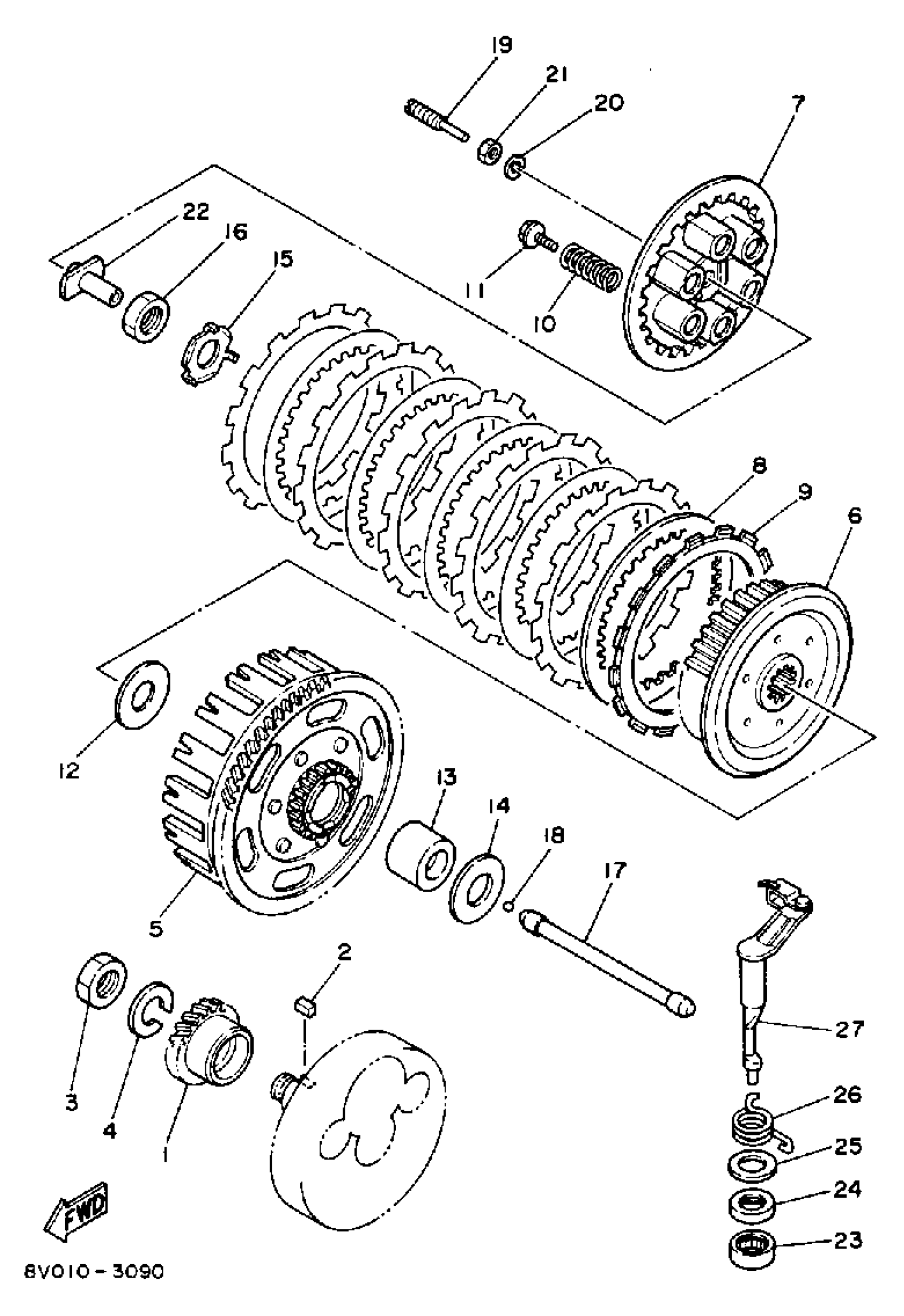

Find the part on the Clutch diagram for your 1986 Yamaha Trial (TY350S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha Trial (TY350S) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, PRIMARY DRIVE

38V-16111-00-00

1
Out of stock

2

KEY, STRAIGHT (498)

90282-07019-00

1

$8.69

In stock

3

NUT

90170-18089-00

1
Out of stock

4

WASHER(N15)

92907-18100-00

1

$7.09

In stock

5

PRIMARY DRIVN GEAR

38V-16150-00-00

1
Out of stock

6

BOSS, CLUTCH

38V-16371-00-00

1
Out of stock

7

PLATE, PRESSURE 1

38V-16351-00-00

1
Out of stock

8

PLATE, CLUTCH 2

168-16325-10-00

1

$13.32

In stock

9

PLATE, FRICTION

5X5-16321-00-00

1

$28.69

In stock

10

SPRING, COMPRESSION

90501-236A3-00

1
Out of stock

11

SCREW, WITH WASHER (1W4)

90159-06016-00

1
Out of stock

12

PLATE, THRUST

2K7-16154-00-00

1

$18.11

In stock

13

SPACER 1

2K7-16181-00-00

1
Out of stock

14

PLATE, THRUST

2K7-16154-00-00

1

$18.11

In stock

15

WASHER, LOCK (26J)

90215-20212-00

—

$7.25

In stock

16

NUT (3R4)

90170-20255-00

—

$8.78

In stock

17

ROD, PUSH 2

2K7-16357-01-00

1
Out of stock

18

BALL (1M1)

93515-32029-00

—
Out of stock

19

SCREW, SPEC''L SHAPE

90149-06123-00

1
Out of stock

20

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

21

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

22

ROD, PUSH 1

23X-16356-00-00

1
Out of stock

23

BRG,CYL-CAL ROLLER 12G KY

93315-21721-00

—

$41.17

In stock

24

OIL SEAL (15A)

93102-17263-00

—

$8.91

In stock

25

WASHER PLATE 168217580000

90201-18262-00

—
Out of stock

26

SPRING, TORSION 46Y

90508-14664-00

1
Out of stock

27

PUSH LEVER ASSEMBLY

38V-16380-00-00

1
Out of stock
