1986 Yamaha Trial (TY350S) Rear Shocks Diagram

← All diagrams

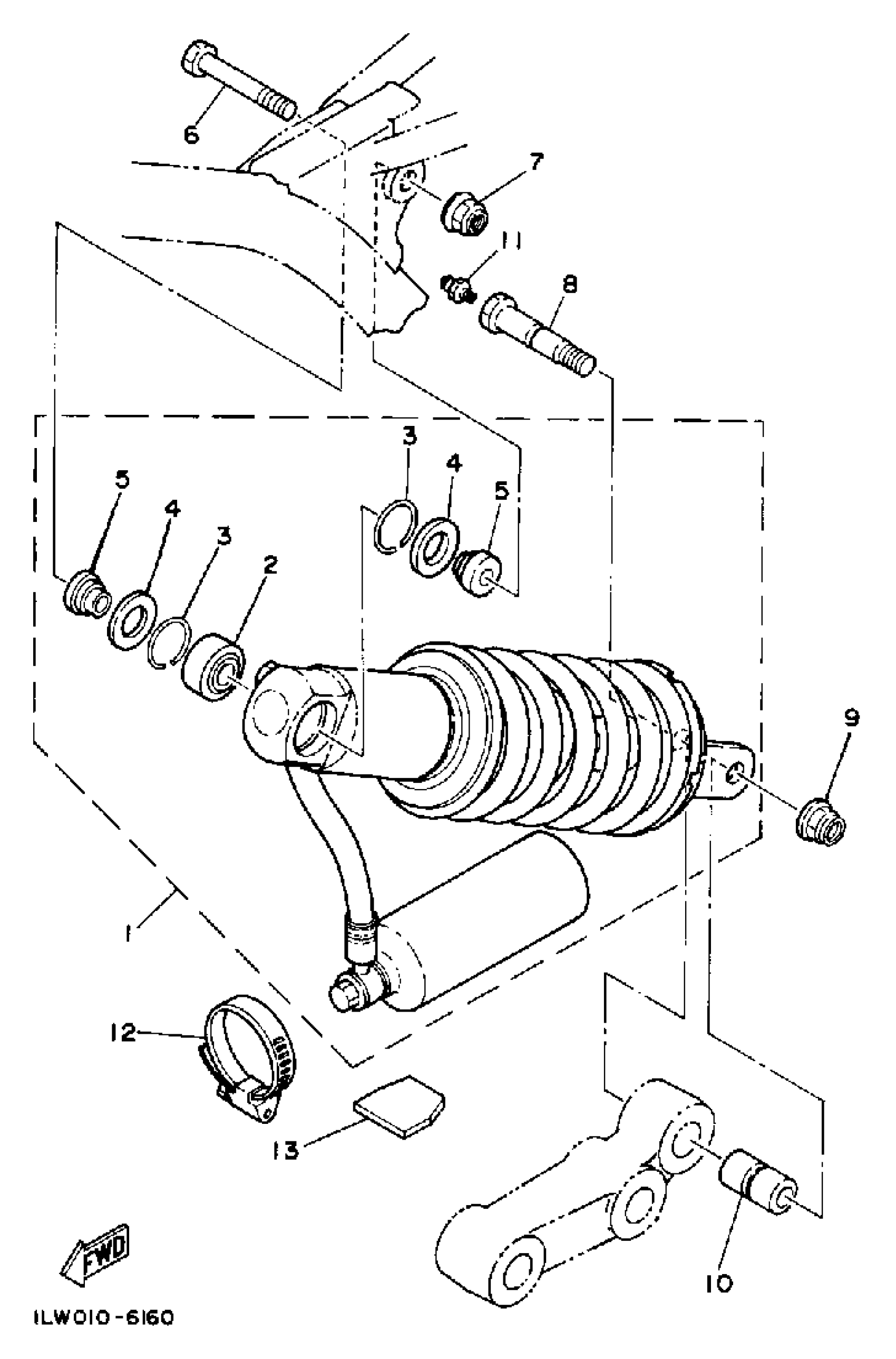

Find the part on the Rear Shocks diagram for your 1986 Yamaha Trial (TY350S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha Trial (TY350S) Rear Shocks Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHK/ABS ASSEMBLY, REAR

1LW-22210-00-6W

1
Out of stock

2

BEARING(4GG)

93399-999T3-00

1
Out of stock

3

CIRCLIP (23X)

93440-30113-00

1
Out of stock

4

COVER

(38V-22211-00-00)

1
Out of stock

5

COLLAR

(90387-100K2-00)

1
Out of stock

6

BOLT 46Y

(90109-08793-00)

1
Out of stock

7

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

8

BOLT 46Y

90101-08599-00

1
Out of stock

9

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

10

BUSH, SOLID 46Y

90380-10137-00

1
Out of stock

11

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

12

HOSE CLAMP ASSY

90450-50001-00

1

$20.99

In stock

13

DAMPER, SUB TANK

1LW-22261-00-00

1
Out of stock
