1986 Yamaha Trial (TY350S) Handlebar - Cable Diagram

← All diagrams

Find the part on the Handlebar - Cable diagram for your 1986 Yamaha Trial (TY350S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

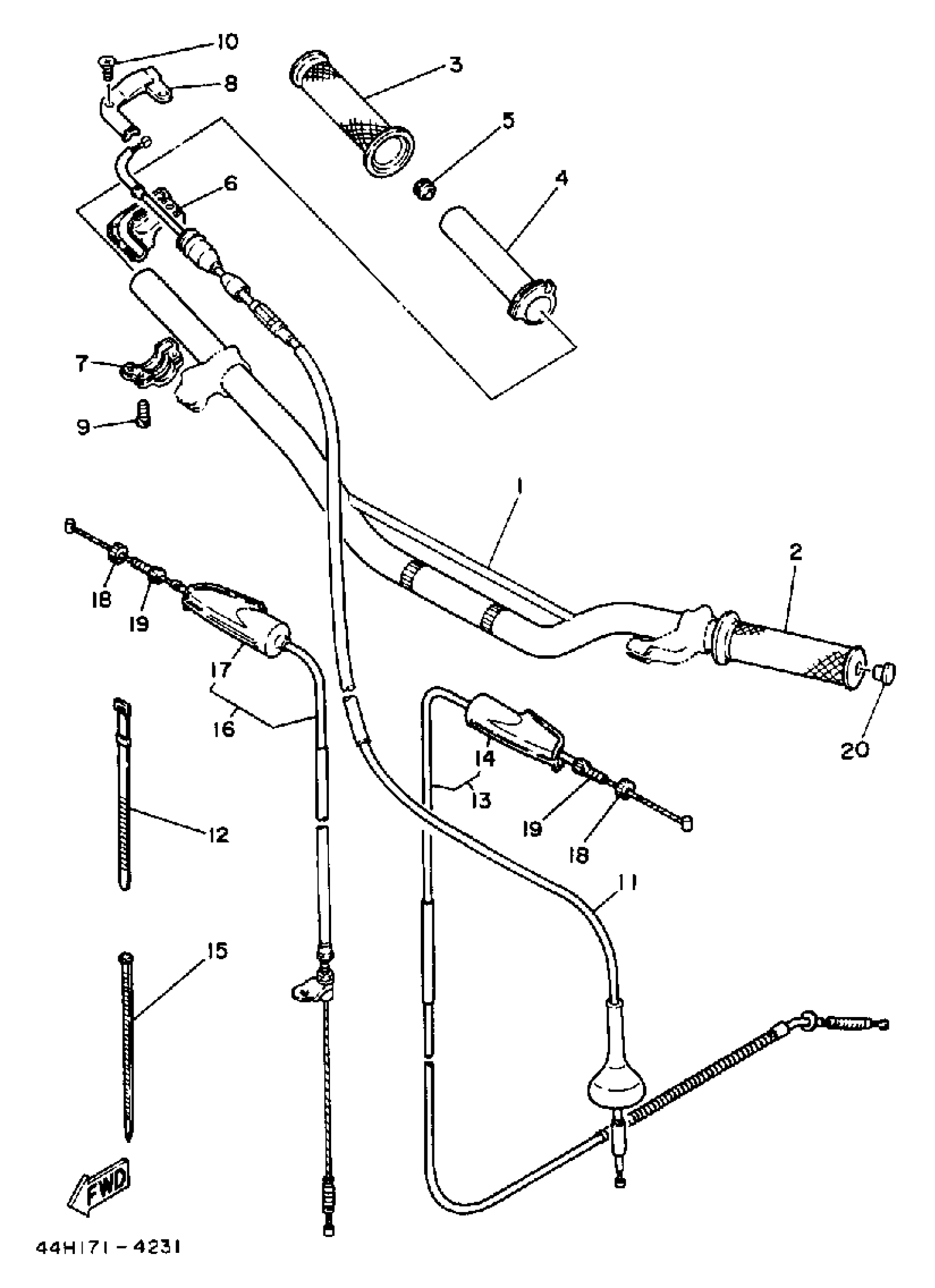

1986 Yamaha Trial (TY350S) Handlebar - Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

53Y-26111-00-00

1
Out of stock

2

GRIP LH

38V-26241-00-00

1
Out of stock

3

GRIP RH

38V-26242-00-00

1
Out of stock

4

TUBE, THROTTLE GUIDE

434-26243-12-00

1
Out of stock

5

PLUG(2GU)

90338-12192-00

1

$6.18

In stock

6

CAP, GRIP UPPER

38V-26281-00-98

—
Out of stock

7

CAP, GRIP UNDER (516)

493-26282-00-98

—
Out of stock

8

CAP, WIRE

38V-2628H-00-00

—
Out of stock

9

SCREW, PAN HEAD

90157-05M19-00

1

$3.62

In stock

10

SCREW, FLAT

98707-04012-00

1

$1.43

In stock

11

CABLE, THROTTLE 1

38V-26311-01-00

1
Out of stock

12

BAND, SWITCH CORD

437-83936-11-00

1

$3.20

In stock

13

CABLE, CLUTCH

38V-26335-00-00

1
Out of stock

14

COVER, LEVER

498-26372-00-00

—

$26.34

In stock

15

BAND

1UA-82591-00-00

1
Out of stock

16

CABLE, BRAKE

44J-26341-01-00

1
Out of stock

17

COVER, LEVER

498-26372-00-00

—

$26.34

In stock

18

NUT

90179-08401-00

1
Out of stock

19

BOLT (23X)

90123-08090-00

—

$14.46

In stock

20

PLUG (5R2)

90338-18122-00

—

$6.71

In stock
