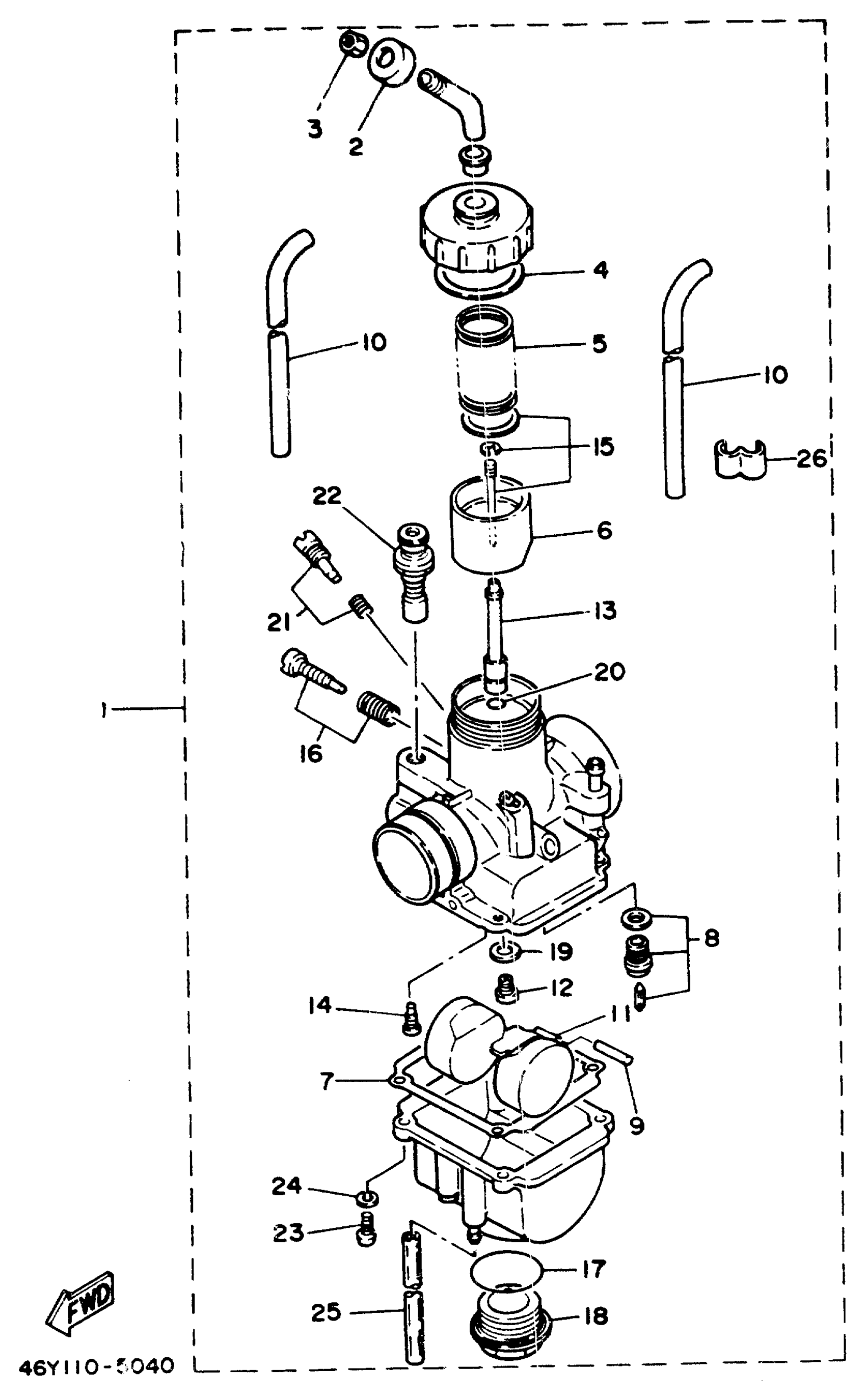

Find the part on the Carburetor diagram for your 1986 Yamaha Trial (TY350S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha Trial (TY350S) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY

46Y-14301-01-00

1
Out of stock

2

. CAP

15A-14118-00-00

1
Out of stock

3

NUT, CABLE ADJUSTING

85L-14161-00-00

1
Out of stock

4

. GASKET

434-14126-00-00

1
Out of stock

5

. SPRING, THRTL VALVE

434-14331-00-00

1
Out of stock

6

. VALVE, THROTTLE 1

1LW-14312-25-00

1
Out of stock

7

GASKET, FLOAT CHAMBER

4ML-14384-00-00

1

$15.83

In stock

8

NEEDLE VALVE SET

46Y-14107-00-00

1

$44.28

In stock

9

. PIN, FLOAT

647-14386-10-00

1
Out of stock

10

PIPE, OVER FLOW

367-14396-00-00

—

$8.49

In stock

11

FLOAT

46Y-14385-00-00

—
Out of stock

12

JET, MAIN (# 140)

288-14343-70-00

1

$9.83

In stock

12

JET, MAIN (# 145)

288-14343-73-00

1

$10.32

In stock

12

JET, MAIN

288-14329-75-00

1
Out of stock

13

. NOZZLE, MAIN

38V-14341-00-00

1
Out of stock

14

. JET, PILOT (#36)

43F-14342-18-00

1
Out of stock

14

JET, PILOT (#38)

43F-14342-19-00

—

$28.69

In stock

14

JET, PILOT #38

43F-14342-68-00

1
Out of stock

15

. NEEDLE SET

38V-1490J-00-00

1
Out of stock

16

THROTTLE SCREW SET

(46Y-14103-00-00)

1
Out of stock

17

O-RING

38V-14397-00-00

—

$5.35

In stock

18

. DRAIN PLUG

38V-14191-00-00

1
Out of stock

19

WASHER, MAIN JET

38V-14153-00-00

—
Out of stock

20

GASKET

360-24512-00-00

—

$8.52

In stock

21

AIR SCREW SET

46Y-14104-00-00

—

$8.15

In stock

22

. PLUNGER, STARTER

38V-14371-00-00

1
Out of stock

23

SCREW, PAN HEAD(GA5)

98580-04014-00

—

$2.78

In stock

24

WASHER, PLAIN (646)

92990-04600-00

—

$0.92

In stock

25

PIPE, OVER FLOW

367-14396-00-00

—

$8.49

In stock

26

. PIPE

44J-14349-00-00

1

$7.46

In stock
