1985 Yamaha Trial (TY350N) Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 1985 Yamaha Trial (TY350N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

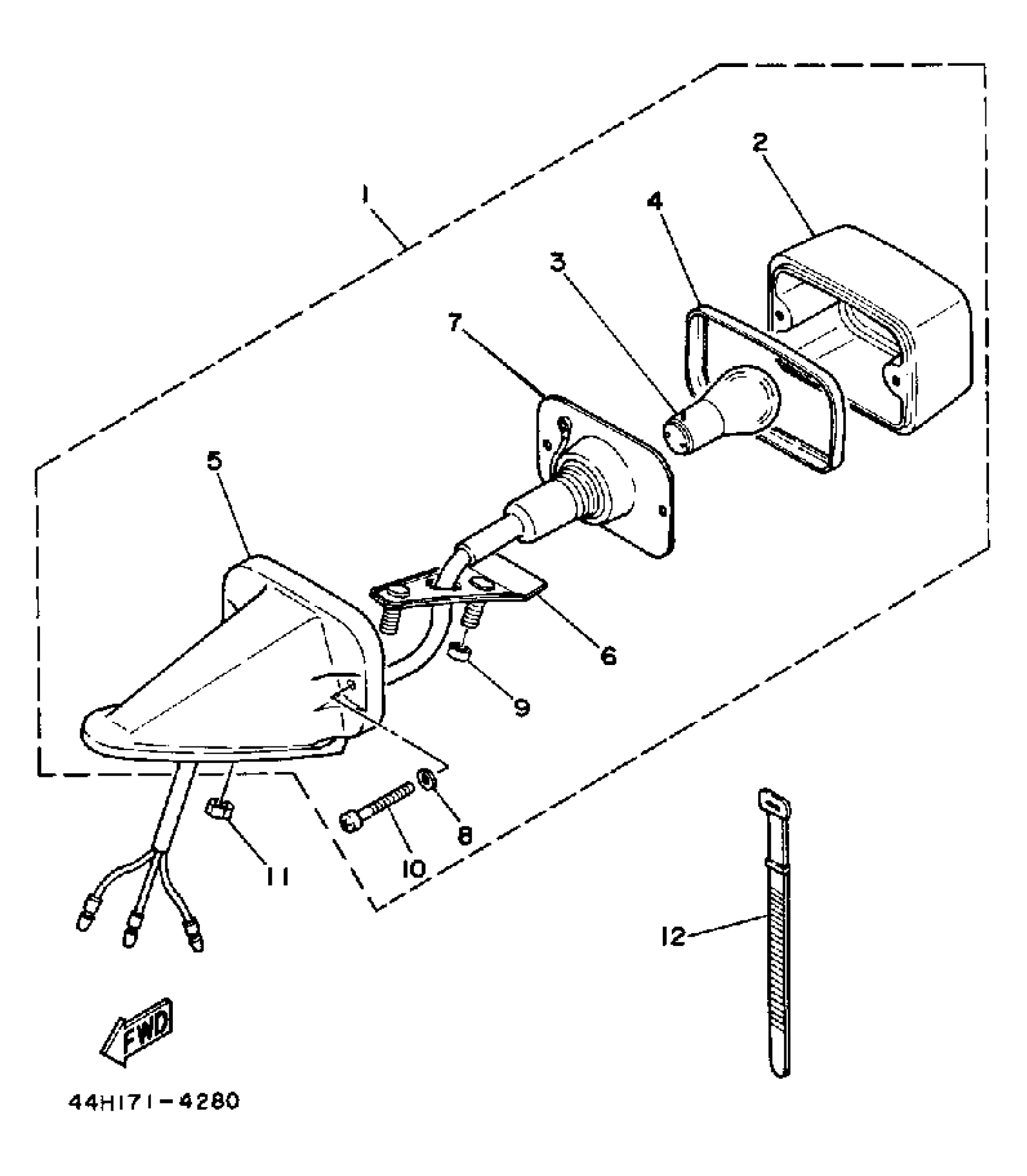

1985 Yamaha Trial (TY350N) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT ASSEMBLY

44H-84500-00-00

1
Out of stock

2

LENS, TAIL LAMP

434-84521-69-00

—
Out of stock

3

BULB,TAIL LAMP(6V10/3W)

122-84514-00-00

1

$4.86

In stock

4

RIM,TAILLIGHT

5AU-83323-01-00

1
Out of stock

5

. BRACKET, TAILLIGHT

434-84519-64-00

1
Out of stock

6

TAILLIGHT ASSEMBLY

434-84500-64-00

1
Out of stock

7

CORD, TAILLIGHT

(44H-84517-00-00)

1
Out of stock

8

WASHER, PLATE 8067717800

90201-05029-00

1

$5.12

In stock

9

COLLAR

(434-84557-60-00)

1
Out of stock

10

SCREW, LENS FITTING

(434-84524-62-00)

1
Out of stock

11

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

12

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock
