1985 Yamaha Trial (TY350N) Generator Diagram

← All diagrams

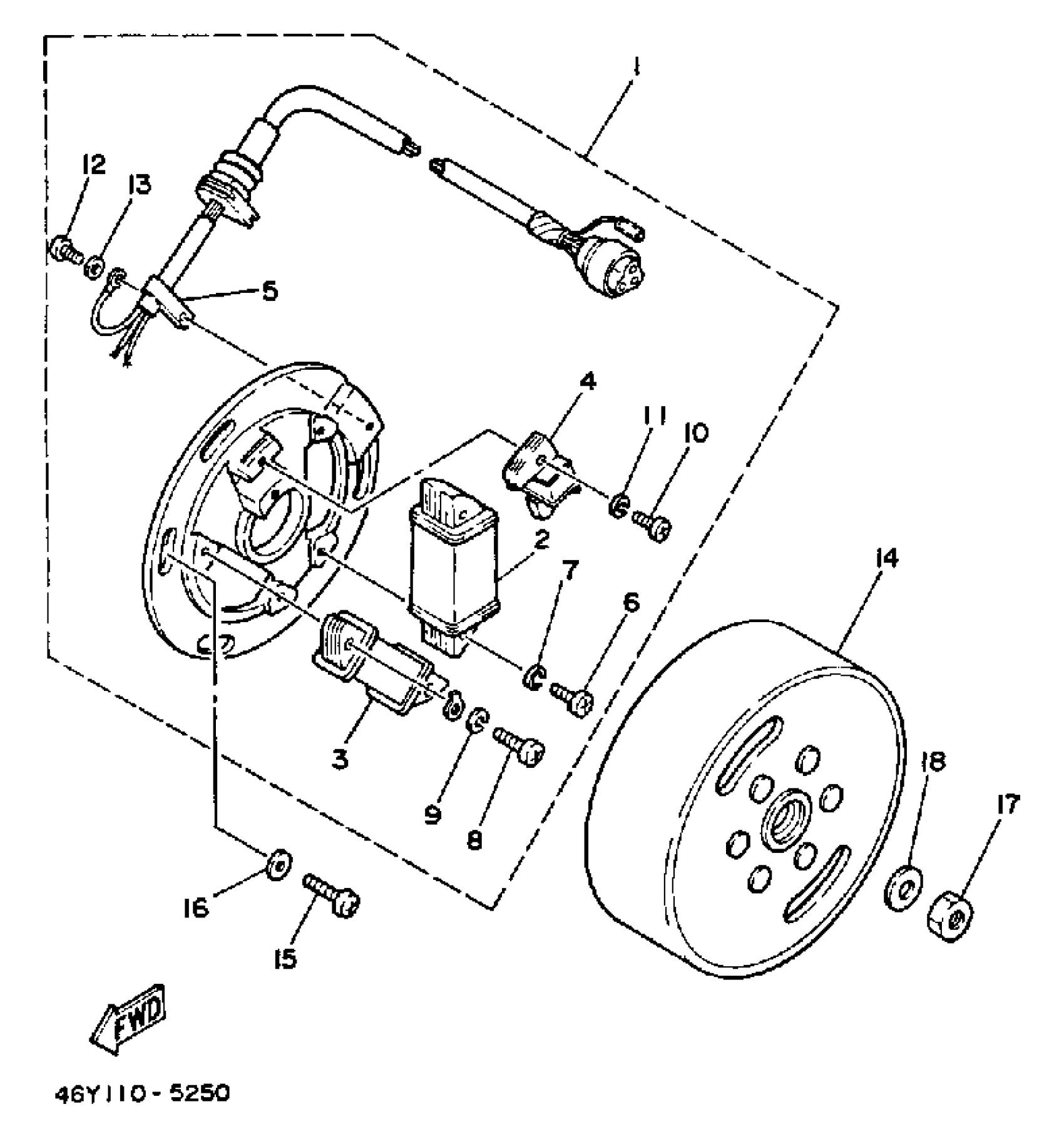

Find the part on the Generator diagram for your 1985 Yamaha Trial (TY350N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Yamaha Trial (TY350N) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR ASSEMBLY

(46Y-85510-20-00)

1
Out of stock

2

. COIL SOURCE 2

2X9-85512-20-00

1
Out of stock

3

COIL, LIGHTING 1

(1W5-85513-20-00)

1
Out of stock

4

. COIL, PULSER

2X9-85580-20-00

1
Out of stock

5

CLAMP, READ

445-81328-20-00

—

$5.35

In stock

6

SCREW, PAN HEAD(4MY)

98507-05018-00

1

$2.48

In stock

7

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

8

SCREW, PANHEAD (A93)

98580-05525-00

1

$1.54

In stock

9

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

10

SCREW, PAN HEAD(GA5)

98580-04014-00

1

$2.78

In stock

11

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

12

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

13

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

14

ROTOR ASSEMBLY

46Y-85550-20-00

1
Out of stock

15

SCREW, PAN

98507-06014-00

1

$6.18

In stock

16

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

17

NUT(55K)

90170-12347-00

—

$8.43

In stock

18

WASHER, PLATE (583)

90201-12593-00

—

$6.82

In stock
