1985 Yamaha Trial (TY350N) Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1985 Yamaha Trial (TY350N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

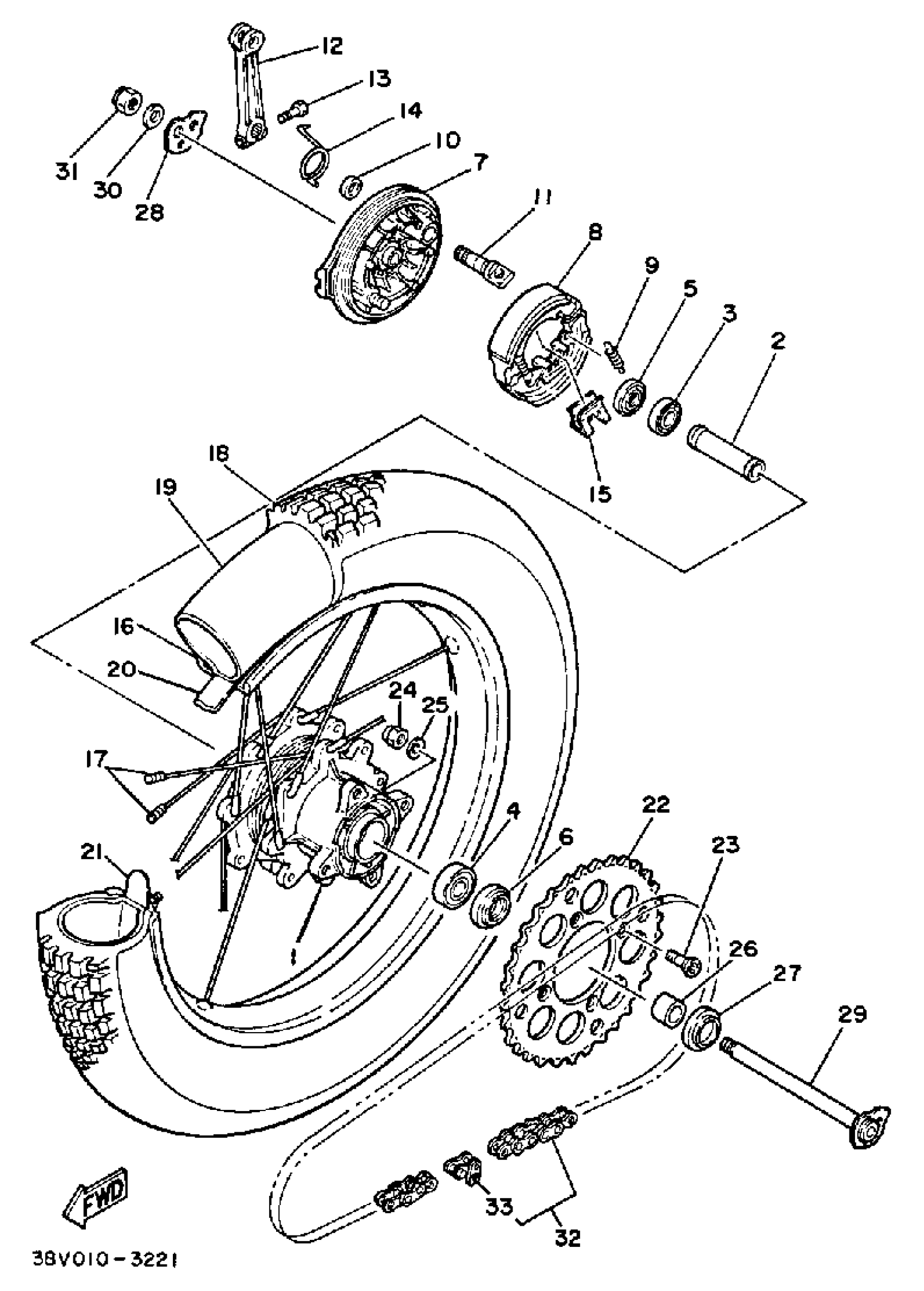

1985 Yamaha Trial (TY350N) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

38V-25311-02-98

1
Out of stock

2

SPACER

90560-15314-00

1
Out of stock

3

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

1
Out of stock

4

BEARING

93306-30212-00

1
Out of stock

5

OIL SEAL (22X35X5)

93104-22018-00

1
Out of stock

6

SEAL,OIL

93106-26005-00

1
Out of stock

7

PLATE, BRAKE SHOE

38V-25321-02-98

1
Out of stock

8

BRAKESHOE SET

22F-W2534-00-00

1
Out of stock

9

SPRING, TENSION (566).

90506-16150-00

1
Out of stock

10

OIL SEAL (2K8)

93109-14021-00

1
Out of stock

11

CAMSHAFT

4GL-25351-00-00

1
Out of stock

12

. LEVER, CAMSHAFT (168-25355-00)

4V5-25355-00-00

1
Out of stock

13

BOLT, HEXAGON (462)

90101-06291-00

1
Out of stock

14

SPRING, TORSION 46Y

90508-26637-00

1
Out of stock

15

CLIP, SHOE

38V-2514H-00-00

1
Out of stock

16

RIM 2.10-18 46Y

(94421-18377-00)

1
Out of stock

17

SPOKE SET, REAR

38V-25304-00-00

1
Out of stock

18

400-18 MICH. TRLS.

94140-186E0-00

1
Out of stock

19

TUBE (5A8)

94212-18188-00

—
Out of stock

20

BAND, RIM (2J4)

94340-18086-00

—
Out of stock

21

SPACER,BEAD

1T1-25394-01-00

1
Out of stock

22

SPROCKET,DRIVN 42T

38V-25442-01-00

1
Out of stock

23

BOLT(3RB)

90109-081G1-00

—
Out of stock

24

NUT, U

95617-08100-00

—
Out of stock

25

WASHER, PLATE(3XP)

90201-086P8-00

—
Out of stock

26

COLLAR 46Y

90387-150K4-00

1
Out of stock

27

COVER, DUST

401-25367-00-00

—
Out of stock

28

PULLER, CHAIN 1

38V-25388-00-00

1
Out of stock

29

AXLE, WHEEL

38V-25381-00-00

1
Out of stock

30

WASHER PLATE (3L6)

90201-14740-00

—
Out of stock

31

NUT, SELF-LOCKING (1J7)

90185-14070-00

—
Out of stock

32

CHAIN

(94580-49096-00)

1
Out of stock

33

. JOINT, CHAIN

94680-49001-00

1
Out of stock
