1985 Yamaha Trial (TY350N) Front Fork Diagram

← All diagrams

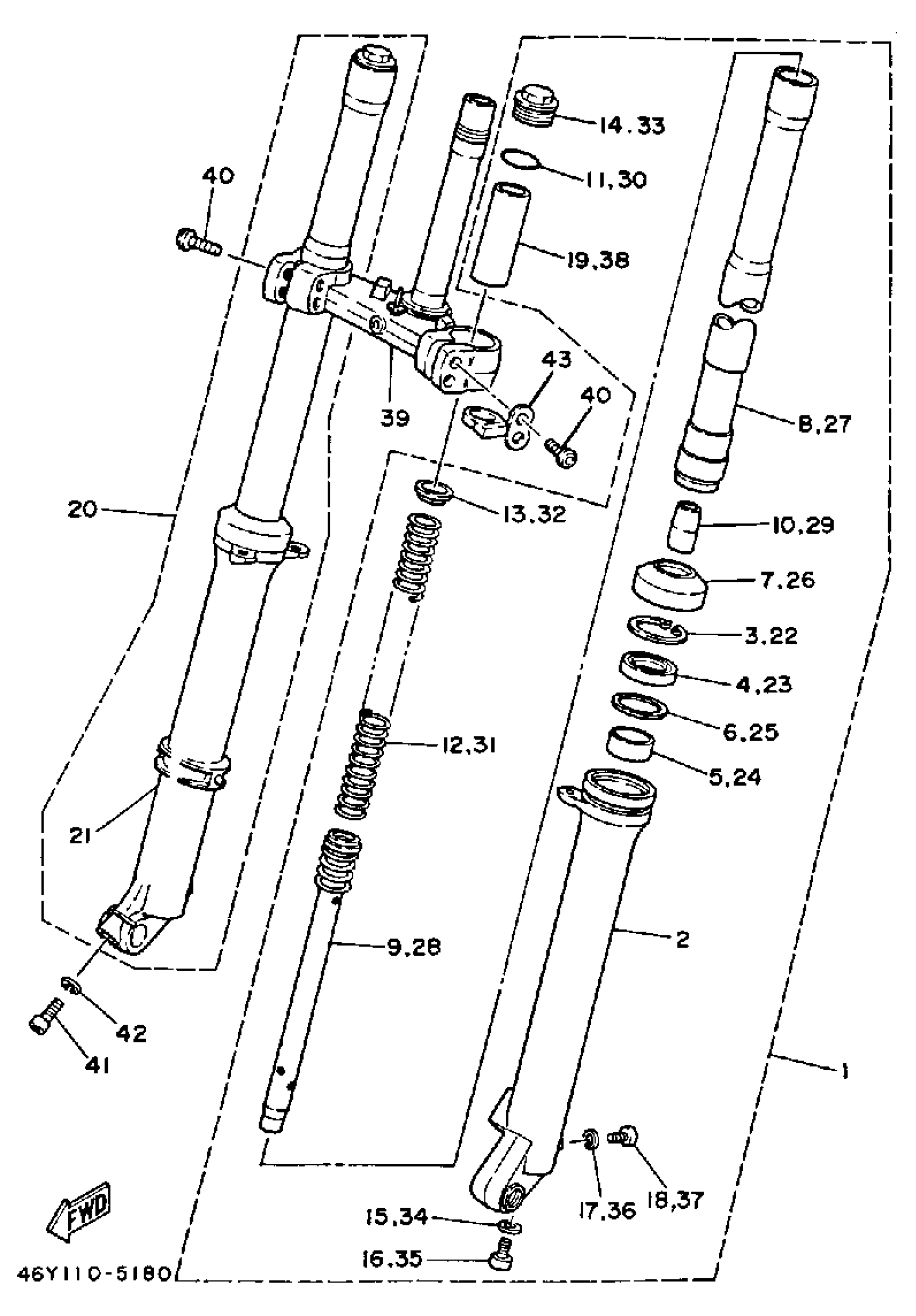

Find the part on the Front Fork diagram for your 1985 Yamaha Trial (TY350N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Yamaha Trial (TY350N) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONTFORK ASSEMBLY LH

(53Y-23102-00-00)

1
Out of stock

2

. OUTER TUBE LH

38V-23126-00-FH

1
Out of stock

3

RING, SNAP

4A1-23156-00-00

1

$4.74

In stock

4

OIL SEAL

48Y-23145-00-00

1
Out of stock

5

METAL, SLIDE 1

30X-23125-00-00

1
Out of stock

6

WASHER, SPRING UPPER

5K5-23149-00-00

1

$7.42

In stock

7

SEAL, DUST

3J2-23144-00-00

—

$29.23

In stock

8

. INNER TUBE

38V-23110-00-00

1
Out of stock

9

CYLINDER, FRTFRK

(38V-23170-00-00)

1
Out of stock

10

TAPER SPINDLE

1W1-23173-L0-00

1

$15.98

In stock

11

O-RING

1W1-23114-L0-00

1
Out of stock

12

. SPRING

38V-23141-00-00

1
Out of stock

13

. SEAT, SPRING UPPER

1W1-23142-L0-00

1
Out of stock

14

. BOLT, CAP

53Y-23111-00-00

1
Out of stock

15

GASKET

509-23158-L0-00

1

$14.34

In stock

16

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

17

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

18

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

19

SPACER

4V5-23118-L1-00

1
Out of stock

20

FRONT FORK ASSEMBLY RH

(53Y-23103-00-00)

1
Out of stock

21

OUTER TUBE RH

(38V-23136-00-FH)

1
Out of stock

22

RING, SNAP

4A1-23156-00-00

1

$4.74

In stock

23

OIL SEAL

48Y-23145-00-00

1
Out of stock

24

METAL, SLIDE 1

30X-23125-00-00

1
Out of stock

25

WASHER, SPRING UPPER

5K5-23149-00-00

1

$7.42

In stock

26

SEAL, DUST

3J2-23144-00-00

—

$29.23

In stock

27

. INNER TUBE

38V-23110-00-00

1
Out of stock

28

CYLINDER, FRTFRK

(38V-23170-00-00)

1
Out of stock

29

TAPER SPINDLE

1W1-23173-L0-00

1

$15.98

In stock

30

O-RING

1W1-23114-L0-00

1
Out of stock

31

. SPRING

38V-23141-00-00

1
Out of stock

32

. SEAT, SPRING UPPER

1W1-23142-L0-00

1
Out of stock

33

. BOLT, CAP

53Y-23111-00-00

1
Out of stock

34

GASKET

509-23158-L0-00

1

$14.34

In stock

35

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

36

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

37

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

38

SPACER

4V5-23118-L1-00

1
Out of stock

39

UNDER BRACKET (46Y-23340-00)

46Y-23340-00-39

1
Out of stock

40

—

$7.02

In stock

41

BOLT, SKT HEAD 46Y

(91311-08028-00)

1
Out of stock

42

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

43

HOLDER, WIRE

3R4-23317-00-00

—

$29.67

In stock
