1985 Yamaha Trial (TY350N) Rear Arm Diagram

← All diagrams

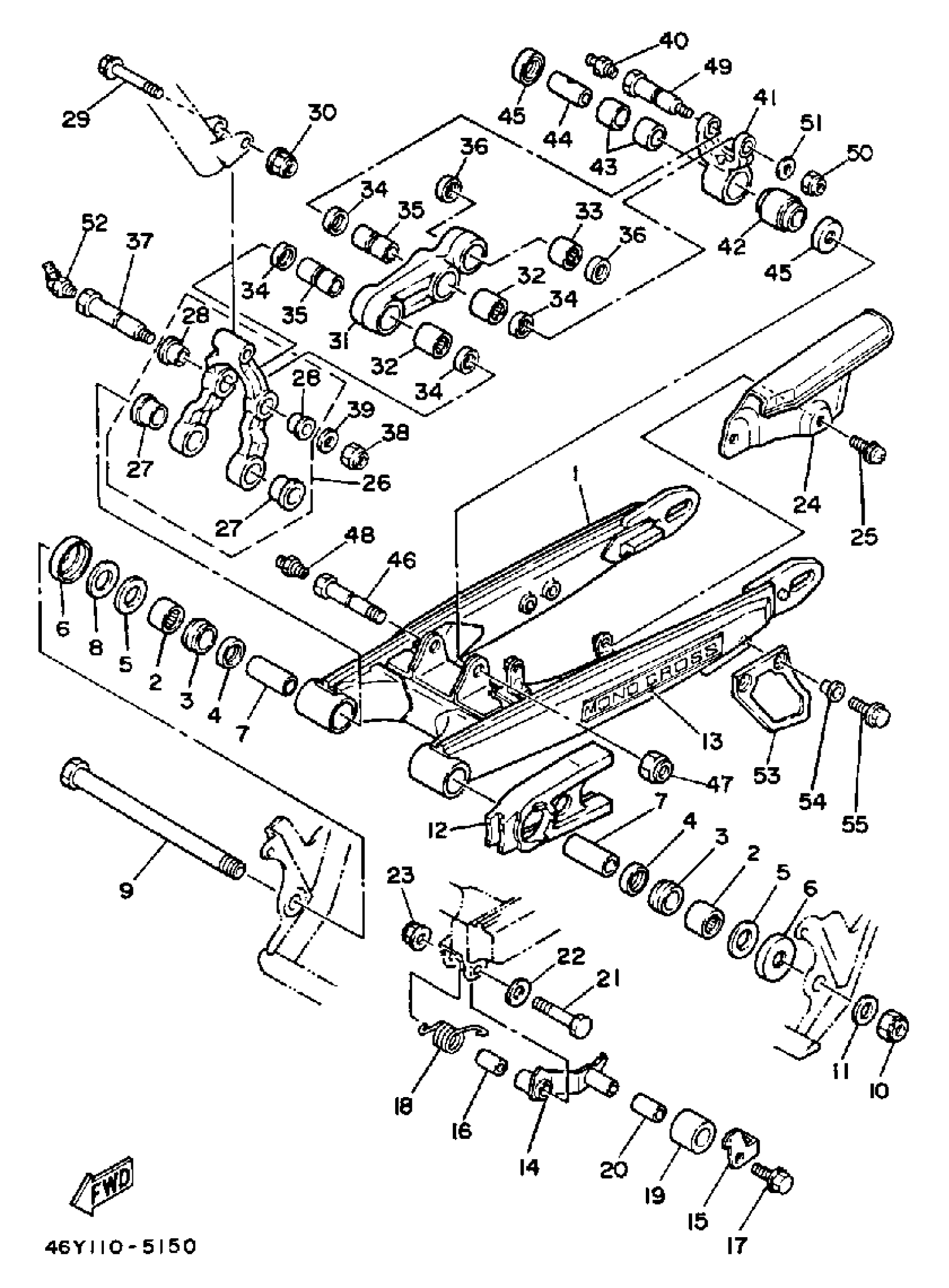

Find the part on the Rear Arm diagram for your 1985 Yamaha Trial (TY350N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Yamaha Trial (TY350N) Rear Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR ARM

(38V-22110-10-FH)

1
Out of stock

2

BEARING, CYLINDRICAL (23X)

93317-32231-00

1
Out of stock

3

BUSH, SOLID (23X)

90380-22111-00

1
Out of stock

4

OIL SEAL (23X)

93106-22019-00

1
Out of stock

5

WASHER, PLATE

90201-222F4-00

1
Out of stock

6

COVER, THRUST

322-22128-01-00

1
Out of stock

7

BUSH, SOLID(38V)

90380-16134-00

—
Out of stock

8

SHIM,REAR ARM

240-22127-00-00

1
Out of stock

9

SHAFT, PIVOT

5X4-22141-01-00

1
Out of stock

10

NUT, SELF-LOCKING

90185-16002-00

1
Out of stock

11

WASHER, PLATE (5X6)

90201-160F6-00

1
Out of stock

12

PROTECTOR, CHAIN

38V-22147-10-00

—
Out of stock

13

EMBLEM, REAR ARM

38V-2218A-00-00

1
Out of stock

14

ARM, TENSIONER

38V-22179-02-FH

1
Out of stock

15

ARM 1

38V-2217M-01-00

1
Out of stock

16

BUSH, SOLID(38V)

90380-08136-00

—
Out of stock

17

BOLT, FLANGE (3JPE)

95024-08016-00

—
Out of stock

18

SPRING, TORSION 46Y

90508-35675-00

1
Out of stock

19

TENSIONER

5X6-22178-00-00

—
Out of stock

20

BUSH

4V4-22184-00-00

—
Out of stock

21

BOLT (2W6)

90101-08428-00

—
Out of stock

22

WASHER, PLATE(49E)

90201-087H6-00

—
Out of stock

23

NUT, SELF-LOCKING

90185-08169-00

—
Out of stock

24

CASE, CHAIN

38V-22311-00-00

1
Out of stock

25

SCREW, W/WASHER

90159-06032-00

—
Out of stock

26

BRACKET, RELAY

(38V-2217Y-00-00)

1
Out of stock

27

BUSH, SOLID 46Y

90381-16052-00

1
Out of stock

28

BUSH, SOLID 46Y

90381-12051-00

1
Out of stock

29

BOLT, WASHR BASD46Y

(90105-08292-00)

1
Out of stock

30

NUT, SELF-LOCKING

90185-08169-00

—
Out of stock

31

ARM, RELAY

(38V-2217A-00-00)

1
Out of stock

32

UNAVAILABLE IN PRICE BOOK

93315-21732-00

1
Out of stock

33

BEARING, CYLIN 46Y

93317-21647-00

1
Out of stock

34

OIL SEAL(38V)

93109-17048-00

—
Out of stock

35

BUSH, SOLID 46Y

90380-12135-00

1
Out of stock

36

OIL SEAL (22W)

93109-16035-00

—
Out of stock

37

BOLT

90109-10702-00

1
Out of stock

38

NUT, SELF LOCKING (23X)

90185-10120-00

—
Out of stock

39

WASHER (7A9)

90201-100F7-00

—
Out of stock

40

NIPPLE, GREASE

93700-06M03-00

1
Out of stock

41

ROD, CONNECTING 1

(38V-2217F-00-00)

1
Out of stock

42

. BUSH, SHOCK ABS LWR

5X6-22226-00-00

1
Out of stock

43

BUSH, BIMETAL FORMED (5X6)

90384-18157-00

—
Out of stock

44

BUSHING, REAR ARM INNER

2J5-22124-00-00

—
Out of stock

45

COVER, THRUST 2

5X6-22129-00-00

—
Out of stock

46

BOLT 46Y

90101-12597-00

1
Out of stock

47

NUT, SELF LOCKING (23X)

90185-12119-00

—
Out of stock

48

NIPPLE, GREASE

93700-06M03-00

1
Out of stock

49

BOLT 46Y

90101-10598-00

1
Out of stock

50

NUT, SELF LOCKING (23X)

90185-10120-00

—
Out of stock

51

WASHER (7A9)

90201-100F7-00

—
Out of stock

52

NIPPLE, GREASE

93700-06005-00

—
Out of stock

53

SUPPORT, CHAIN

38V-22199-00-00

—
Out of stock

54

COLLAR (3L6)

90387-06737-00

—
Out of stock

55

BOLT, FLANGE

95817-06020-00

—
Out of stock
