1976 Yamaha TY250 (TY250C) Kick Starter Diagram

← All diagrams

Find the part on the Kick Starter diagram for your 1976 Yamaha TY250 (TY250C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

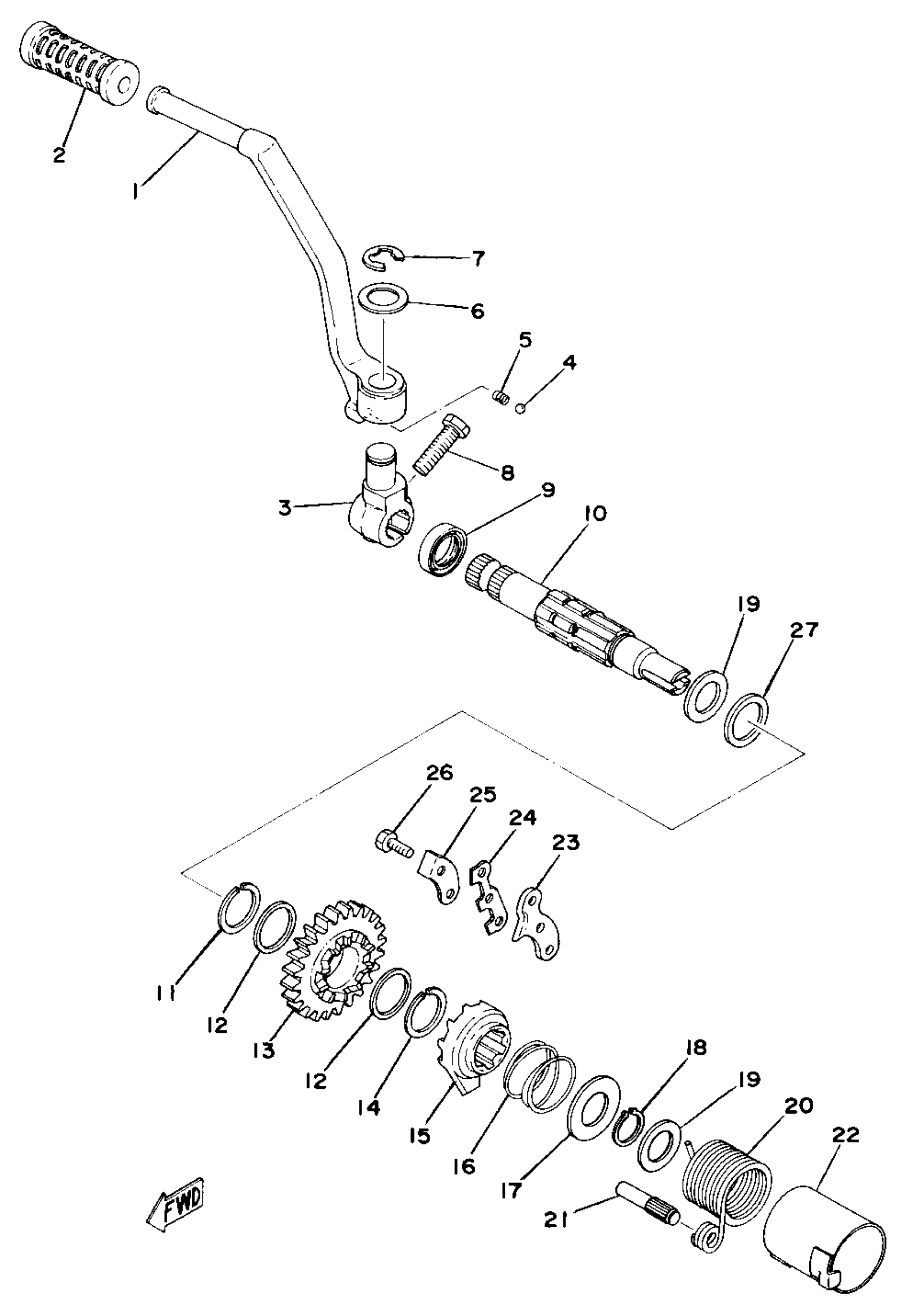

1976 Yamaha TY250 (TY250C) Kick Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANK, KICK

434-15620-00-00

1
Out of stock

2

COVER, KICK LEVER

156-15618-01-00

1

$6.43

In stock

3

CRANK, KICK

434-15620-00-00

1
Out of stock

4

BALL (12R)

93507-32031-00

1
Out of stock

5

SPRING COMPRESSION278156220000

90501-12081-00

1
Out of stock

6

WASHER

90201-17256-00

1
Out of stock

7

CIRCLIP (E-12)

93430-12022-00

1
Out of stock

8

BOLT, HEXAGON

97013-08030-00

1

$3.20

In stock

9

OIL SEAL (20X30X6-648)

93101-20048-00

1

$7.31

In stock

10

AXLE, KICK

(434-15661-00-00)

1
Out of stock

11

WASHER, PLATE(1FK)

90201-256K6-00

—

$3.49

In stock

12

CIRCLIP (4L0)

93440-25084-00

1

$3.96

In stock

13

WASHER, PLATE(59W)

90201-253K0-00

1

$6.18

In stock

14

GEAR, KICK

(434-15641-00-00)

1
Out of stock

15

CIRCLIP

93440-25020-00

1
Out of stock

16

WHEEL, RACHET

583-15671-00-00

—
Out of stock

17

SPRING COMPRESSION363156750000

90501-23143-00

—
Out of stock

18

COVER, SPRING

363-15676-00-00

—
Out of stock

19

CIRCLIP(1EY)

99009-19400-00

—

$6.17

In stock

20

WASHER PLATE 168171160000

90201-20278-00

—
Out of stock

21

SPRING, TORSION

(90508-32208-00)

1
Out of stock

22

STOPPER

(364-15668-00-00)

1
Out of stock

23

GUIDE, SPRING

(434-15664-00-00)

1
Out of stock

24

GUIDE, RATCHET WHEEL

(363-15674-00-00)

1
Out of stock

25

WASHER, LOCK

363-15686-00-00

—
Out of stock

26

STOPPER

434-15668-00-00

—
Out of stock

27

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock
