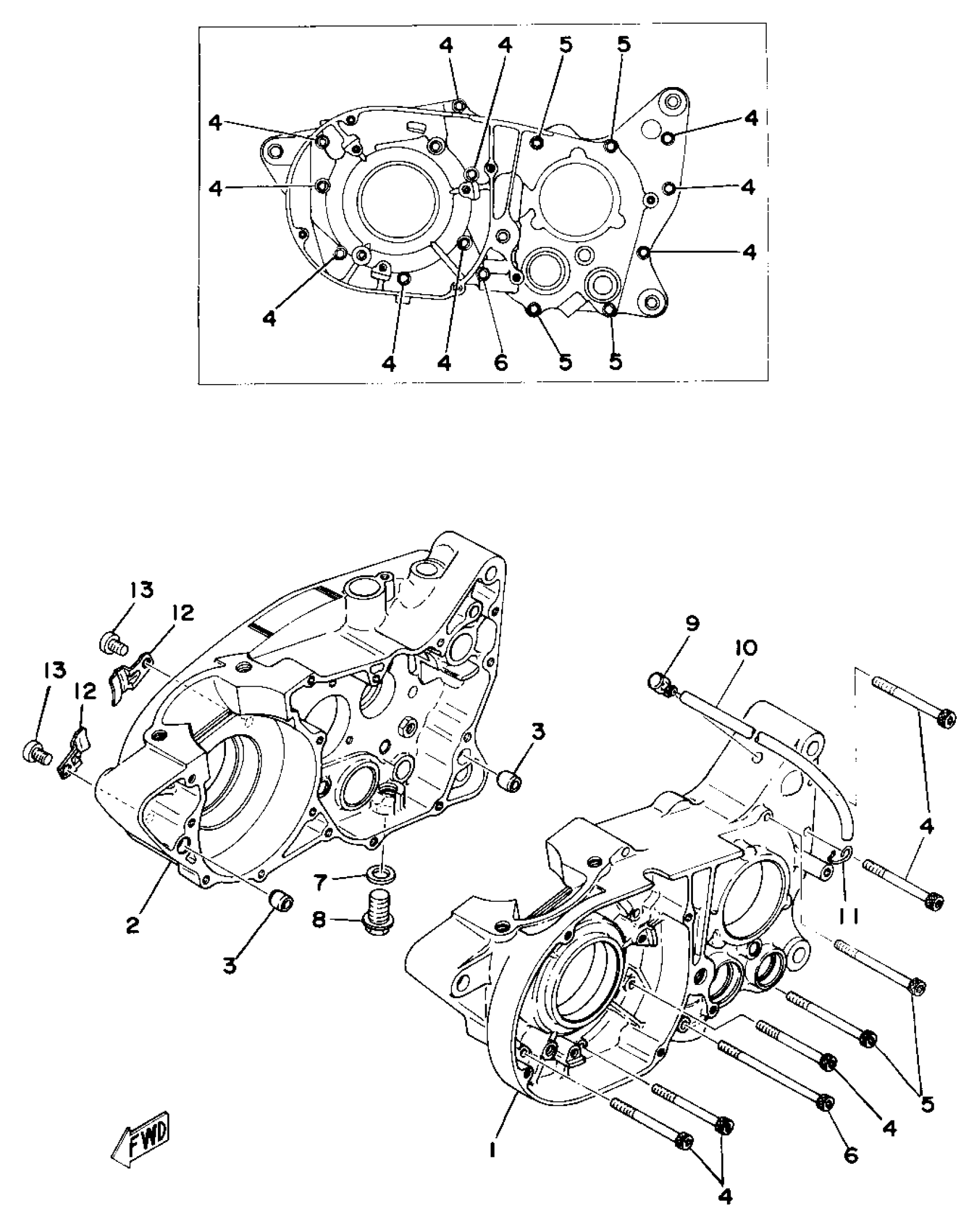

Yamaha TY250C (TY250) 1976 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE 1

(434-15111-01-00)

Unavailable

2

CRANKCASE 2

(434-15121-01-00)

Unavailable

3

PIN, DOWEL

99530-12016-00

$3.85

4

BOLT, SOCKET

91317-06065-00

$3.05

5

BOLT, SOCKET

91317-06075-00

$3.56

6

BOLT

91316-06100-00

Unavailable

7

WASHER, PROTECTOR

4F4-14766-00-00

$5.70

8

BOLT

90109-14385-00

$12.76

9

BREATHER

583-15371-00-00

$5.00

10

HOSE(7EG)

90446-07241-00

$6.93

11

CLAMP 363154850100

90462-05005-00

Unavailable

12

HOLDER

434-15118-00-00

Unavailable

13

SCREW,PAN HEAD

98580-08012-00

Unavailable
