1976 Yamaha TY175 (TY175C) Crankcase Diagram

← All diagrams

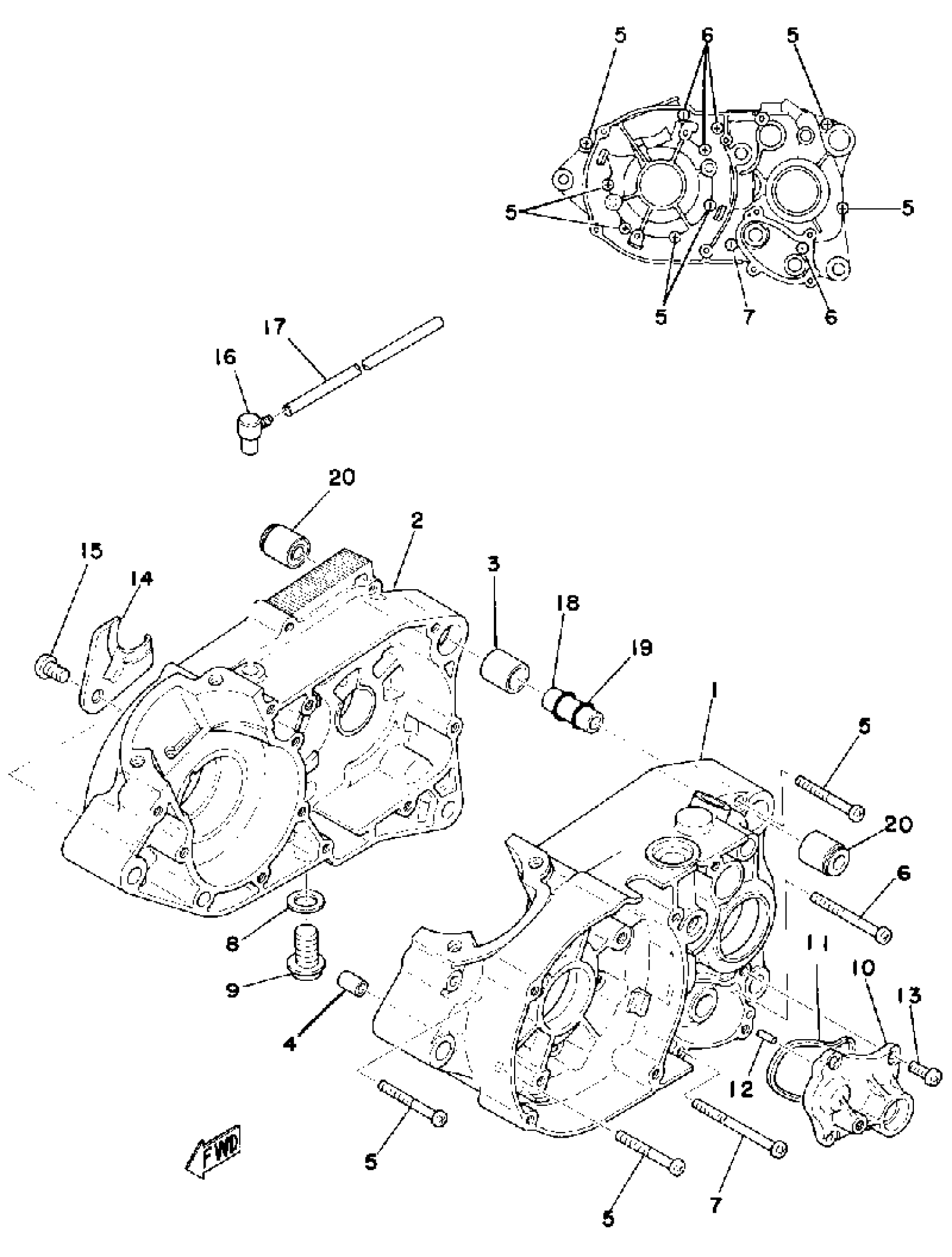

Find the part on the Crankcase diagram for your 1976 Yamaha TY175 (TY175C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha TY175 (TY175C) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE 1

(525-15111-01-00)

1
Out of stock

2

CRANKCASE 2

(525-15121-00-00)

1
Out of stock

3

PIN, DOWEL

99530-20020-00

1
Out of stock

4

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

5

SCREW PAN HEAD

98580-06545-00

1

$5.78

In stock

6

SCREW, PANHED (GC2)

98580-06555-00

1
Out of stock

7

SCREW PAN HEAD

98580-06565-00

—
Out of stock

8

GASKET (3JD1)

90430-12207-00

1

$6.77

In stock

9

1

$6.71

In stock

10

COVER, SHIFTER

437-15419-01-00

1

$77.32

In stock

11

RING, RUBBER

401-15449-00-00

1

$25.49

In stock

12

PIN,DOWEL (603)

93603-12007-00

1

$1.60

In stock

13

SCREW, PAN

98507-06014-00

1

$6.18

In stock

14

HOLDER (R.H)

304-15128-00-00

1

$5.80

In stock

15

SCREW,PAN HEAD

98580-08012-00

1
Out of stock

16

BREATHER

583-15371-00-00

—
Out of stock

17

HOSE (L570)

90445-07MF1-00

1

$8.45

In stock

18

SPACER, ENGINE MOUNT

401-15317-00-00

—

$12.20

In stock

19

O-RING (P95)

93210-11073-00

—
Out of stock

20

DAMPER

90388-08003-00

—

$16.29

In stock
