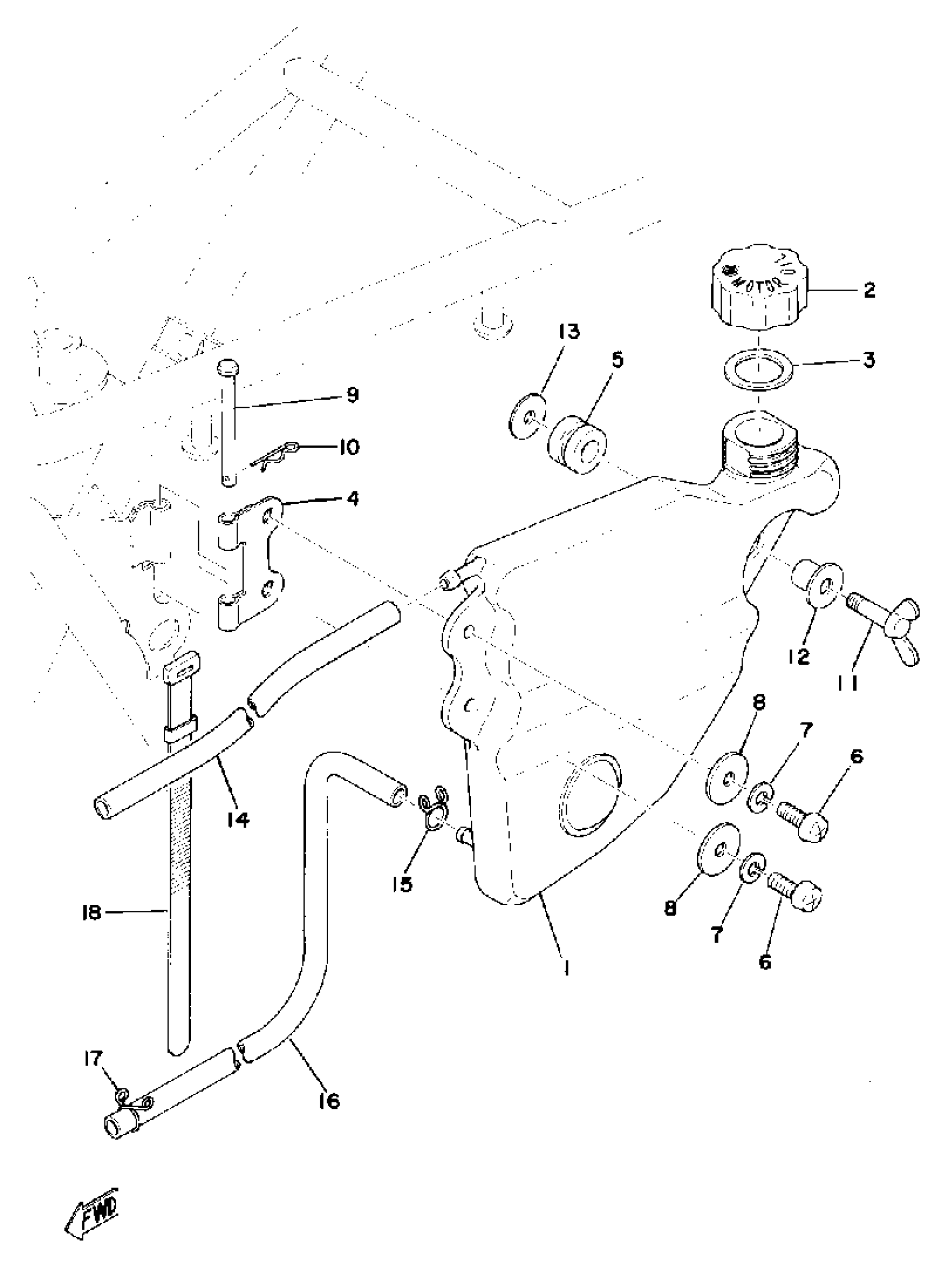

Yamaha TY175C (TY175) 1976 OIL TANK Diagram

#

Description
Price

1

TANK, OIL

(525-21751-00-00)

Unavailable

2

BODY, CAP

434-21771-00-00

$6.17

3

GASKET, CAP (434)

90430-18067-00

$6.94

4

HINGE

(525-21797-00-00)

Unavailable

5

GROMMET 839774310000

90480-14023-00

$4.34

6

SCREW, PAN

98507-06014-00

$5.76

7

WASHER, SPRING

92995-06100-00

$2.95

8

WASHER, PLATE

90201-06380-00

$0.54

9

PIN, CLEVIS

91701-05055-00

$5.70

10

CLIP (156-83525-00)

90468-10050-00

$2.16

11

BOLT, WING (38W)

90122-06021-00

Unavailable

12

COLLAR

90387-06158-00

$5.75

13

NUT, RATCH CLAMP (462)

90179-06013-00

$5.92

14

HOSE (L545)

90445-09361-00

Unavailable

15

CLIP

90467-100A1-00

$5.96

16

HOSE (L1500)

90445-090F6-00

Unavailable

17

CLIP 101235600

90467-08003-00

Unavailable

18

BAND, SWITCH CORD

25G-83936-01-00

Unavailable
