1975 Yamaha TY175 (TY175B) Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1975 Yamaha TY175 (TY175B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

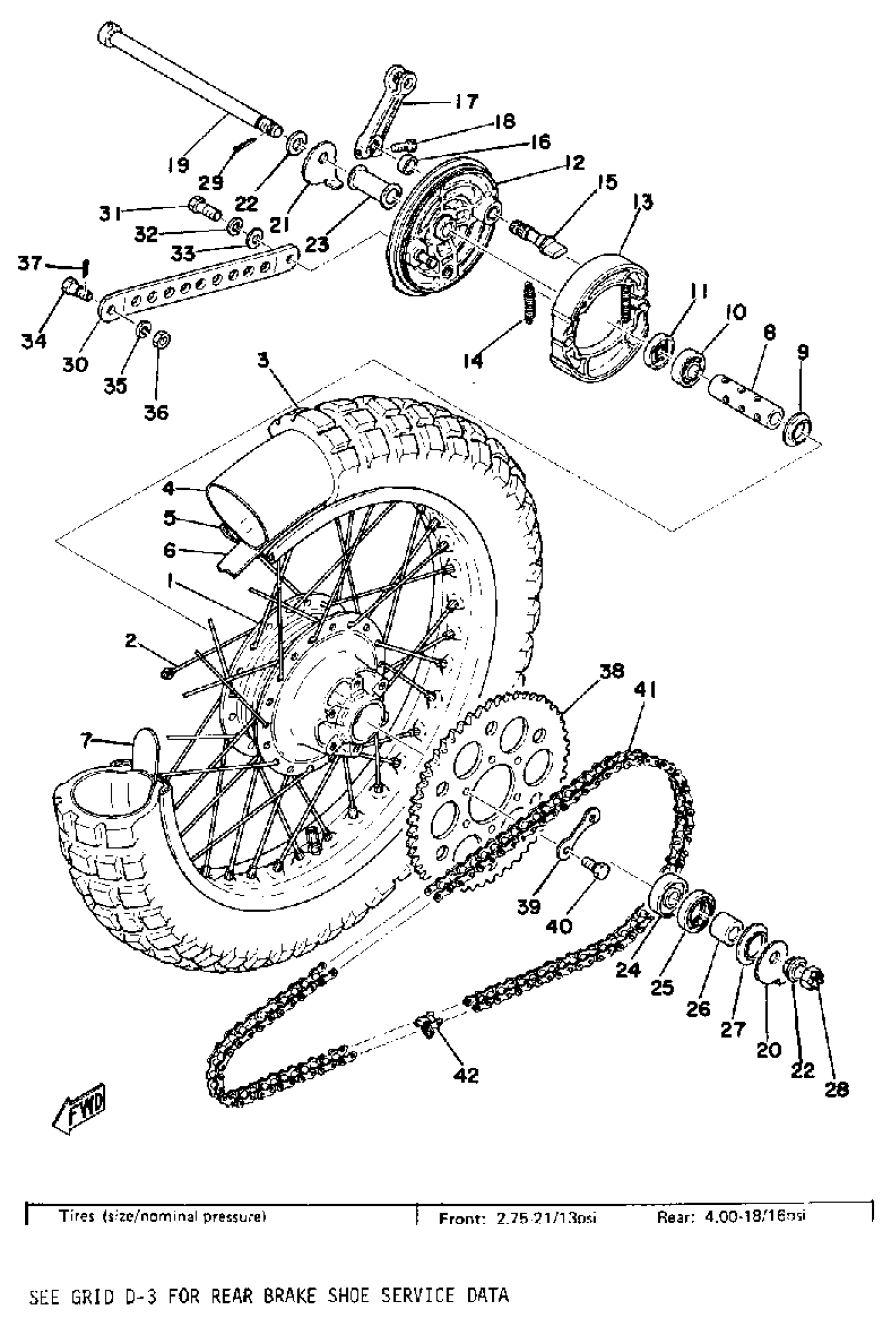

1975 Yamaha TY175 (TY175B) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

(434-25311-01-00)

1
Out of stock

2

SPOKE SET, REAR

434-25304-00-00

1
Out of stock

3

400X18 DUN TRI UNI

(94140-18317-00)

1
Out of stock

4

TUBE (5A8)

94212-18188-00

1
Out of stock

5

RIM 1.85X18

(94418-18154-00)

1
Out of stock

6

BAND, RIM (2J4)

94340-18086-00

1
Out of stock

7

SPACER, BEAD

1T2-25394-00-00

—
Out of stock

8

SPACER

90560-15314-00

1
Out of stock

9

FLANGE, SPACER

146-25115-00-00

1
Out of stock

10

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

1
Out of stock

11

OIL SEAL (22X35X5)

93104-22018-00

1
Out of stock

12

PLATE, BRAKE SHOE

(434-25321-01-00)

1
Out of stock

13

BRAKE SHOE SET-2PCS

437-W2536-00-00

1
Out of stock

14

SPRING (5T9)

90506-17328-00

—
Out of stock

15

CAMSHAFT

2RH-25351-00-00

1
Out of stock

16

SEAL, CAM SHAFT

148-25359-00-00

—
Out of stock

17

LEVER, CAMSHAFT

434-25355-01-00

1
Out of stock

18

BOLT, HEXAGON

97017-06020-00

—
Out of stock

19

AXLE, WHEEL

(525-25381-00-00)

1
Out of stock

20

PULLER, CHAIN 1

(525-25388-00-00)

1
Out of stock

21

PULLER, CHAIN 2

(525-25389-00-00)

1
Out of stock

22

WASHER (525)

90201-15238-00

—
Out of stock

23

COLLAR

90387-15490-00

1
Out of stock

24

BEARING

93306-30212-00

—
Out of stock

25

SEAL,OIL

93106-26005-00

—
Out of stock

26

COLLAR

(90387-15489-00)

1
Out of stock

27

COVER, DUST

401-25367-00-00

—
Out of stock

28

NUT, CASTLE(2UJ)

90171-14056-00

—
Out of stock

29

PIN, COTTER

91490-30030-00

—
Out of stock

30

BAR, TENSION

434-25371-01-00

1
Out of stock

31

BOLT

(90101-10254-00)

1
Out of stock

32

YBS67-10 WASHER, SPRING

92990-10100-00

—
Out of stock

33

WASHER, PLATE

92990-10600-00

1
Out of stock

34

BOLT 1092537300

90109-08063-00

—
Out of stock

35

YBS67-8 WASHER, SPRING

92990-08100-00

—
Out of stock

36

. NUT

95380-08700-00

1
Out of stock

37

PIN, COTTER

91490-25020-00

—
Out of stock

38

SPROCKET, DRIVN 51T

525-25451-00-00

1
Out of stock

39

WASHER, LOCK

22W-25412-00-00

—
Out of stock

40

BOLT, FITTING

90109-08377-00

1
Out of stock

41

SET, CHAIN

94A40-07114-00

1
Out of stock

42

JOINT, CHAIN(3KX)

94681-64001-00

—
Out of stock
