1975 Yamaha TY175 (TY175B) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1975 Yamaha TY175 (TY175B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

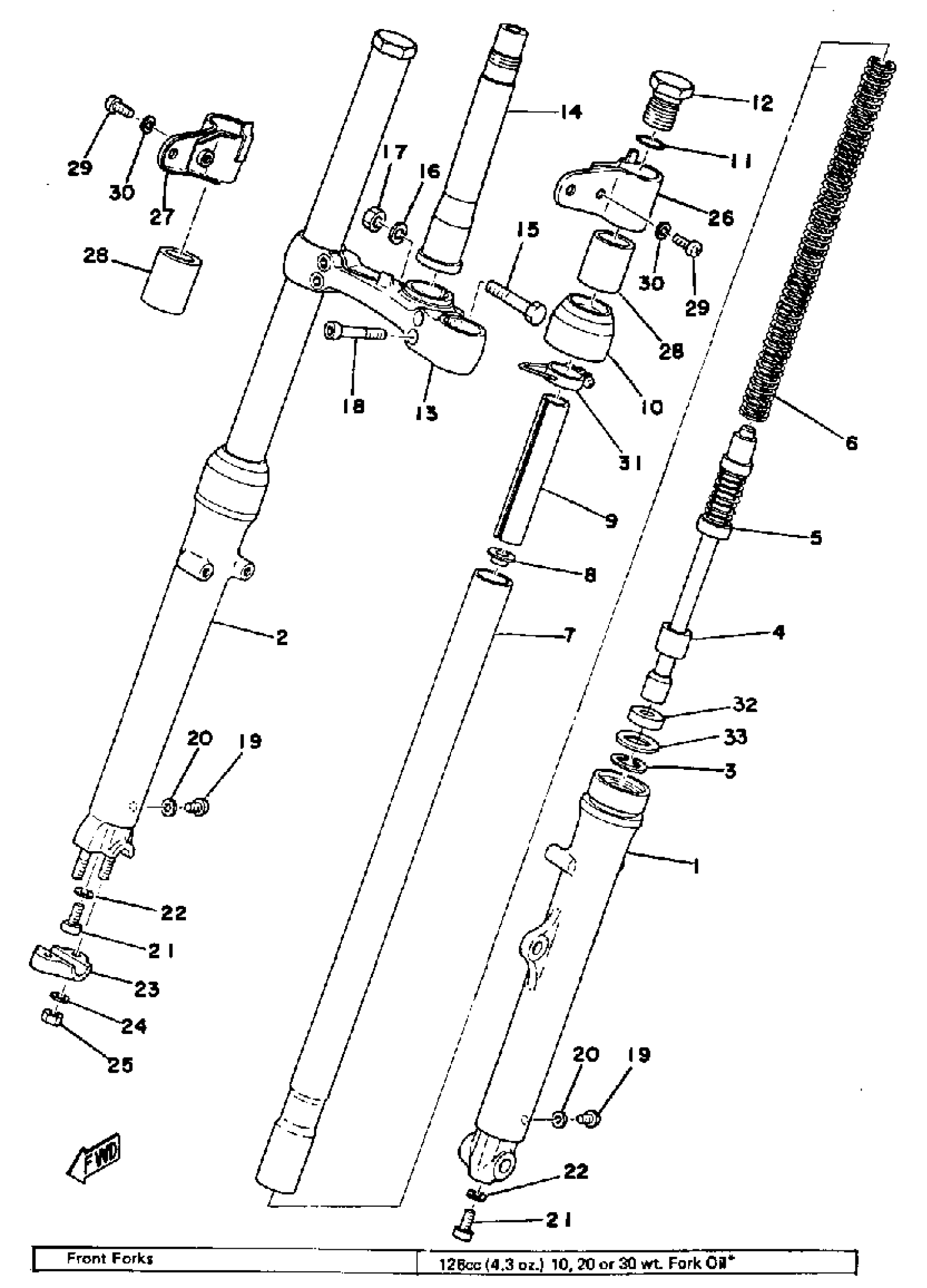

1975 Yamaha TY175 (TY175B) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(525-23101-01-00)

1
Out of stock

1

TUBE, OUTER 1

(525-23126-00-00)

1
Out of stock

2

TUBE, OUTER 2

(525-23136-00-00)

1
Out of stock

3

CIRCLIP

(535-23183-00-00)

1
Out of stock

4

PISTON, FRONT FORK

(535-23171-00-00)

1
Out of stock

5

CYLINDER, FRTFRK

(525-23170-00-00)

1
Out of stock

6

SPRING, FRONT FORK

525-23141-01-00

1
Out of stock

7

TUBE, INNER 1

(525-23124-00-00)

1
Out of stock

8

SEAT, SPRING UPPER

(304-23142-50-00)

1
Out of stock

9

SPACER

(315-23118-50-00)

1
Out of stock

10

SEAL, DUST

535-23144-00-00

—

$28.69

In stock

11

PACKING(O-RING)

146-23114-00-00

1
Out of stock

12

BOLT, CAP

(2K5-23111-00-00)

1
Out of stock

13

BRACKET, LOWER

(525-23345-00-00)

1
Out of stock

14

SHAFT, STEERING

(516-23341-31-00)

1
Out of stock

15

BOLT 2

(322-23356-00-00)

1
Out of stock

16

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

17

NUT

(322-23357-00-00)

1
Out of stock

18

BOLT 1

(322-23346-00-00)

1
Out of stock

19

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

20

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

21

BOLT,SOCKET

91314-08020-00

—

$6.17

In stock

22

GASKET

(214-23158-00-00)

1
Out of stock

23

. HOLDER, AXLE

315-23167-51-00

1
Out of stock

24

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

25

NUT, HEXAGON

(90170-08176-00)

1
Out of stock

26

COVER, UPPER 1

(525-23121-00-93)

1
Out of stock

27

COVER, UPPER 2

(525-23131-00-93)

1
Out of stock

28

GASKET

(525-23163-00-00)

1
Out of stock

29

SCREW, PAN HEAD(6E5)

97880-06018-00

1

$4.19

In stock

30

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

31

HOLDER, CABLE 1

(525-23318-01-00)

1
Out of stock

32

OIL SEAL

137-23145-01-00

—

$38.06

In stock

33

WASHER, OIL SEAL

(315-23146-50-00)

1
Out of stock
