FRONT WHEEL

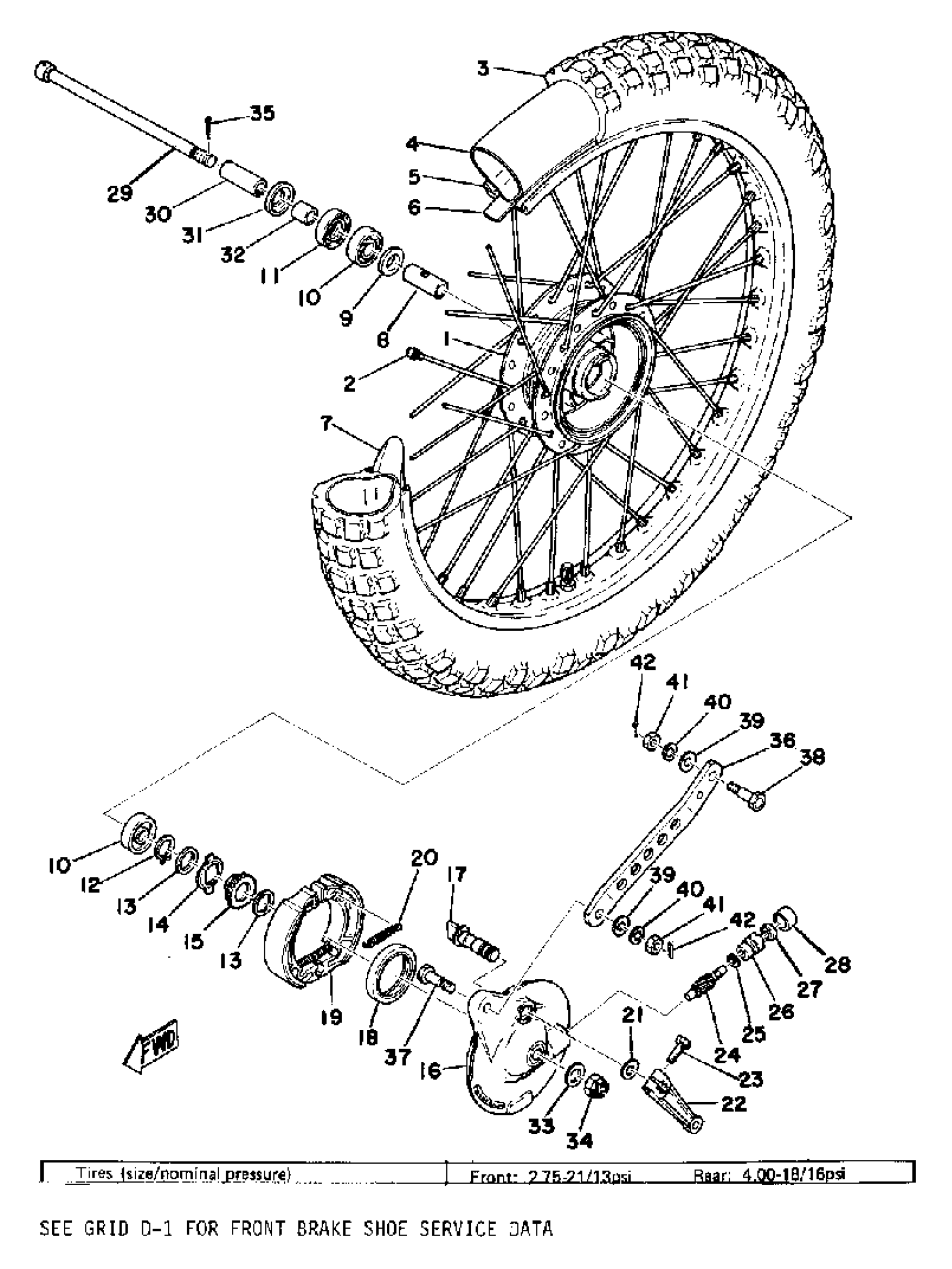

1975 Yamaha TY175 (TY175B) Front Wheel Diagram
Find the part on the Front Wheel diagram for your 1975 Yamaha TY175 (TY175B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
HUB, FRONT
(248-25111-00-38)
2
SPOKE SET, FRONT
345-25104-01-00
2
SPOKE SET, INNER 1
(345-25196-90-00)
2
SPOKE SET, OUTER 1
(345-25197-90-00)
3
275X21 DUN TU ET
(94127-21151-00)
4
TUBE (2.75-21)(2YY)
94227-21293-00
5
RIM 1.40X21
(94414-21155-00)
6
BAND, RIM
(94327-21024-00)
10
BEARING
93306-30102-00
12
CIRCLIP(1AR)
99009-20400-00
13
WASHER, PLATE 1832514700
90201-20269-00
14
CLUTCH, METER
183-25149-00-00
15
GEAR, DRIVE
37A-25135-00-00
16
PLATE, BRAKE SHOE
(434-25121-02-00)
17
CAMSHAFT
(434-25151-00-00)
18
SEAL,OIL
93105-47007-00
19
BRAKESHOE SET
22F-W2534-00-00
21
SEAL, CAMSHAFT
137-25159-00-00
22
LEVER, CAMSHAFT 1 (401-25155-00)
401-25155-11-00
24
GEAR, METER
37A-25138-00-00
30
COLLAR
90387-12100-00
31
COVER, HUB DUST
2K5-25118-00-00
36
BAR, TENSION
(434-25171-01-00)
37
BOLT
(90109-08234-00)
38
BOLT
(90109-08380-00)
