1975 Yamaha TY175 (TY175B) Clutch Diagram

← All diagrams

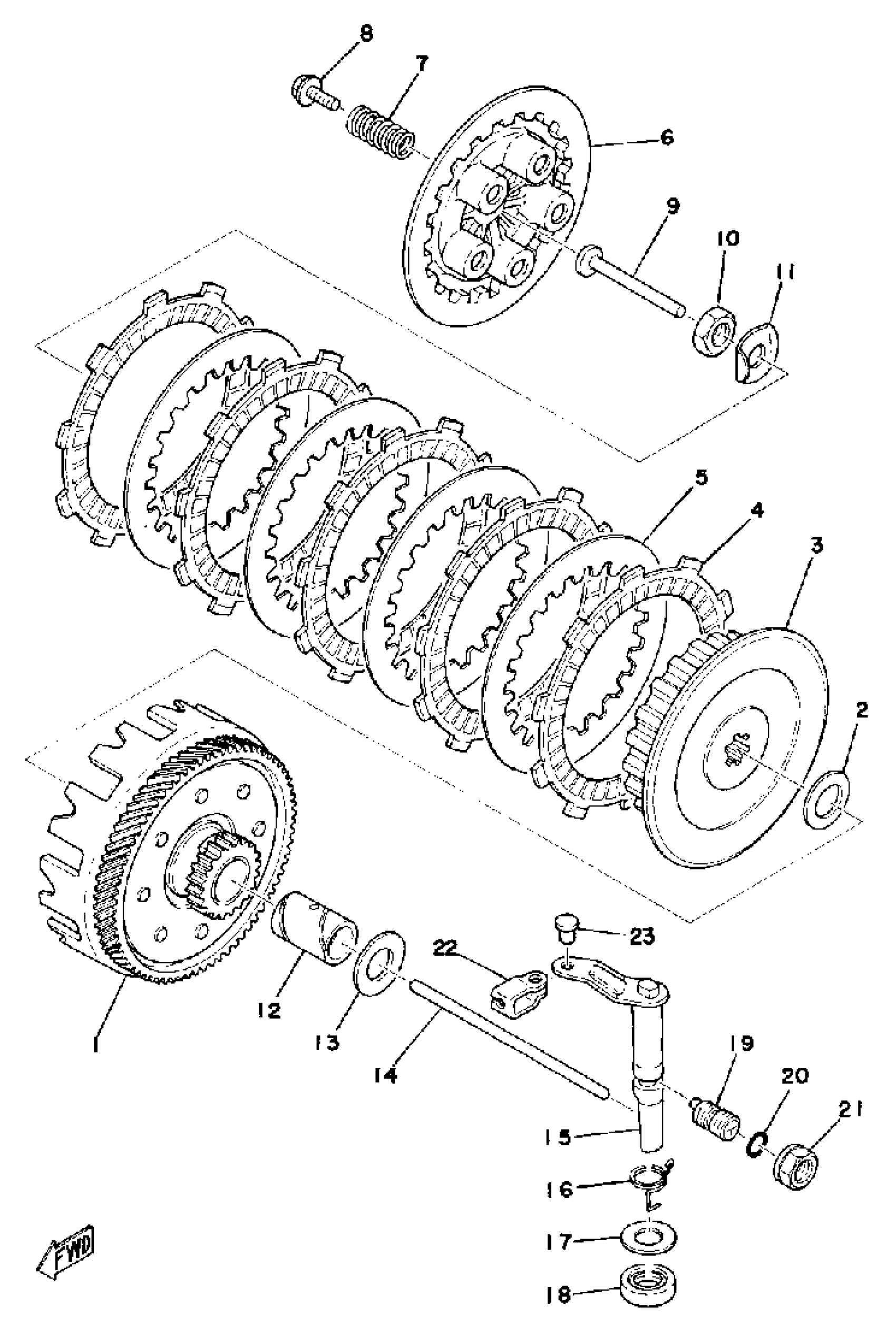

Find the part on the Clutch diagram for your 1975 Yamaha TY175 (TY175B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Yamaha TY175 (TY175B) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

. PRI DRIVEN GEAR (74T)

525-16150-00-00

1
Out of stock

1

CLUTCH ASSEMBLY

(525-16301-00-00)

1
Out of stock

2

PLATE, THRUST

122-16164-00-00

1

$7.08

In stock

3

. BOSS, CLUTCH

525-16371-02-00

1
Out of stock

4

PLATE, FRICTION

537-16321-00-00

1

$15.04

In stock

5

PLATE, CLUTCH 2

137-16325-80-00

1
Out of stock

6

. PLATE, PRESSURE 1

525-16351-00-00

1
Out of stock

7

1

$6.17

In stock

8

BOLT, HEXAGON WITH WASHER(353)

90119-05001-00

1
Out of stock

9

ROD,PUSH (1)

137-16356-00-00

1

$28.05

In stock

10

NUT, HEXAGON 1371637700

90170-12060-00

1

$8.29

In stock

11

WASHER, LOCK (21T)

90215-12211-00

1

$6.17

In stock

12

SPACER (525)

90560-17147-00

—

$25.35

In stock

13

WASHER, PLATE(2YY)

90201-180P2-00

1
Out of stock

14

ROD, PUSH 2

1W1-16357-00-00

1
Out of stock

14

BALL

93503-16003-00

—

$2.14

In stock

14

PUSH ROD ASSEMBLY

99999-00910-00

1
Out of stock

15

PUSH LEVER ASSEMBLY

525-16380-00-00

1
Out of stock

16

SPRING, TORSION

90508-14132-00

1
Out of stock

17

WASHER PLATE 150251530000

90201-14217-00

—
Out of stock

18

OIL SEAL (14X25X5-2H7)

93104-14059-00

—
Out of stock

19

SCREW

90149-12097-00

1
Out of stock

20

O-RING (611)

93210-10096-00

—

$3.11

In stock

21

NUT

90179-12197-00

1
Out of stock

22

JOINT

214-16389-00-00

—
Out of stock

23

TOOL

UNA-VAILA-BL-EI

1
Out of stock
