1975 Yamaha TY175 (TY175B) Transmission Diagram

← All diagrams

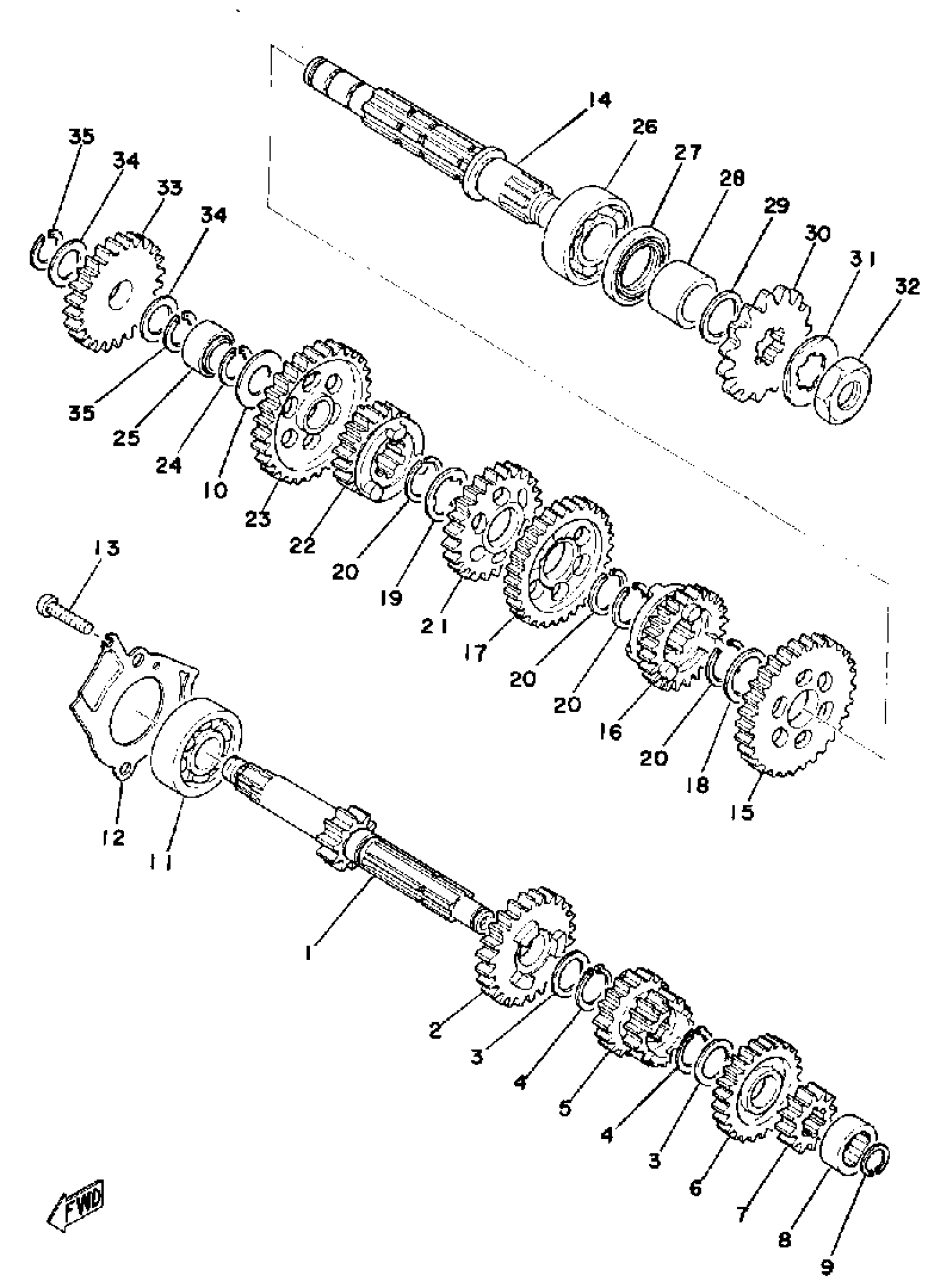

Find the part on the Transmission diagram for your 1975 Yamaha TY175 (TY175B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Yamaha TY175 (TY175B) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

(525-17411-00-00)

1
Out of stock

2

GEAR, 5TH PINION

(525-17151-00-00)

1
Out of stock

3

WASHER, PLATE (525)

90201-17545-00

1

$6.68

In stock

4

CIRCLIP (525)

93410-17037-00

1

$6.68

In stock

5

GEAR, 3RD PINION

(525-17131-00-00)

1
Out of stock

6

GEAR, 6TH PINION

(525-17161-00-00)

1
Out of stock

7

GEAR, 2ND PINION

(525-17121-00-00)

1
Out of stock

8

BEARING, CYLINDER.#18

(93318-21305-00)

1
Out of stock

9

CIRCLIP, OUTER

(93440-13042-00)

1
Out of stock

10

SHIM, DRIVE AXLE

164-17427-00-06

1

$5.15

In stock

11

BEARING(4HM)

93306-30317-00

1

$33.54

In stock

12

PLATE, COVER

1G8-17471-00-00

1
Out of stock

13

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

14

AXLE, DRIVE

(525-17421-00-00)

1
Out of stock

15

GEAR, 2ND WHEEL

(525-17221-00-00)

1
Out of stock

16

GEAR, 6TH WHEEL

(525-17261-00-00)

1
Out of stock

17

GEAR, 4TH WHEEL

(525-17241-01-00)

1
Out of stock

18

WASHER PLATE 132172160000

90201-20266-00

—
Out of stock

19

WASHER

90209-16133-00

1
Out of stock

20

CIRCLIP (525)

93410-20038-00

—

$2.62

In stock

21

GEAR, 3RD WHEEL

(525-17231-01-00)

1
Out of stock

22

GEAR, 5TH WHEEL

(525-17251-00-00)

1
Out of stock

23

GEAR, 1ST WHEEL

(525-17211-00-00)

1
Out of stock

24

CIRCLIP

93440-15012-00

—
Out of stock

25

BEARING, CYLINDRICAL(2TV)

93311-31567-00

—
Out of stock

26

BEARING(1GJ)

93306-20458-00

—

$36.19

In stock

27

OIL SEAL (26X38X5-181)

93102-26042-00

—

$4.20

In stock

28

COLLAR (525)

90387-20491-00

—

$13.71

In stock

29

WASHER PLATE 132172160000

90201-20266-00

—
Out of stock

30

DRIVE SPROCKET ASSY (12T)

3TU-17460-00-00

—
Out of stock

30

SPROCKET, DRIVE (13T)

93822-13213-00

—

$19.66

In stock

30

SPROCKET,DRIVE 14T(5N01746141)

93822-14043-00

—
Out of stock

31

WASHER, LOCK (1L8)

90215-16127-00

—

$8.91

In stock

32

NUT,SPEC'L SHAPE

90179-16018-00

—

$11.26

In stock

33

GEAR, KICK IDLE

525-15651-00-00

—

$40.08

In stock

34

SHIM, MAIN AXLE 0.6MM

137-17417-00-06

—
Out of stock

35

CIRCLIP

93440-15012-00

—
Out of stock
