1975 Yamaha TY175 (TY175B) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1975 Yamaha TY175 (TY175B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

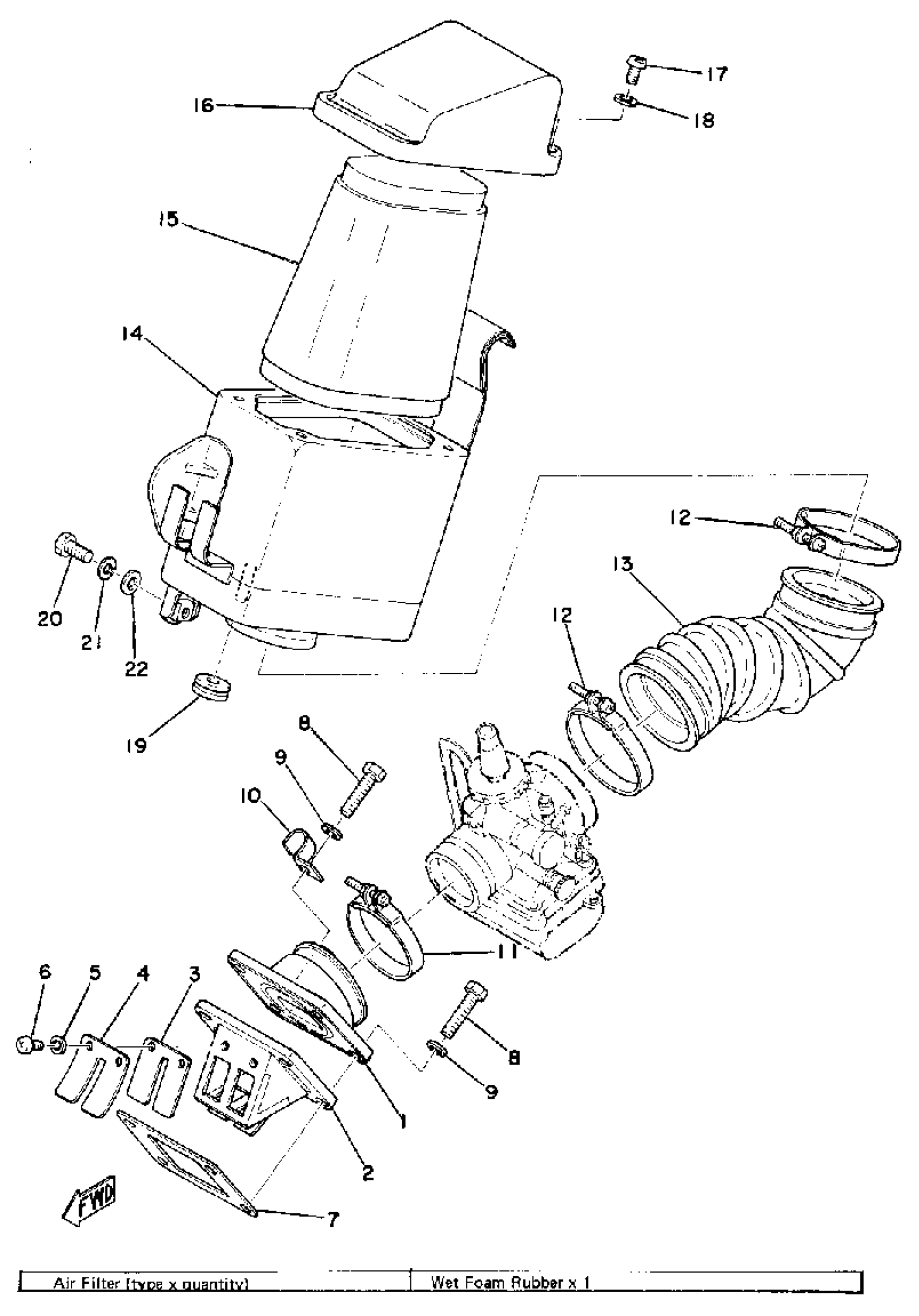

1975 Yamaha TY175 (TY175B) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR

(525-13565-01-00)

1
Out of stock

2

REED VALVE ASSY

53V-13610-00-00

1
Out of stock

3

VALVE, REED

314-13613-01-00

—

$32.53

In stock

4

. STOPPER, REED VALVE

10X-13616-00-00

1
Out of stock

5

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

6

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

7

GASKET, VALVE SEAT

87A-13621-00-00

1

$7.97

In stock

8

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

CLAMP 363154850100

90462-05005-00

—

$6.92

In stock

11

CLAMP, HOSE (5H0)

90460-43179-00

1

$16.69

In stock

12

CLAMP HOSE 304144550000

90460-51059-00

1

$14.64

In stock

13

JOINT, AIR CLNR 1

525-14453-00-00

1
Out of stock

14

CASE, AIR CLEANER 1

(525-14411-00-00)

1
Out of stock

15

ELEMENT, AIR CLEANER

525-14451-02-00

1
Out of stock

16

CAP, CLEANER CASE 1

(525-14412-01-00)

1
Out of stock

17

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

18

YBS66-4 WASHER, PLAIN

92990-04200-00

—

$1.10

In stock

19

GROMMET 214217460000

90480-10091-00

—

$6.45

In stock

20

BOLT (661)

97013-06012-00

—

$4.71

In stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

22

WASHER, PLATE

90201-06380-00

—

$0.57

In stock
