1973 Yamaha TX750 (TX750) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1973 Yamaha TX750 (TX750), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

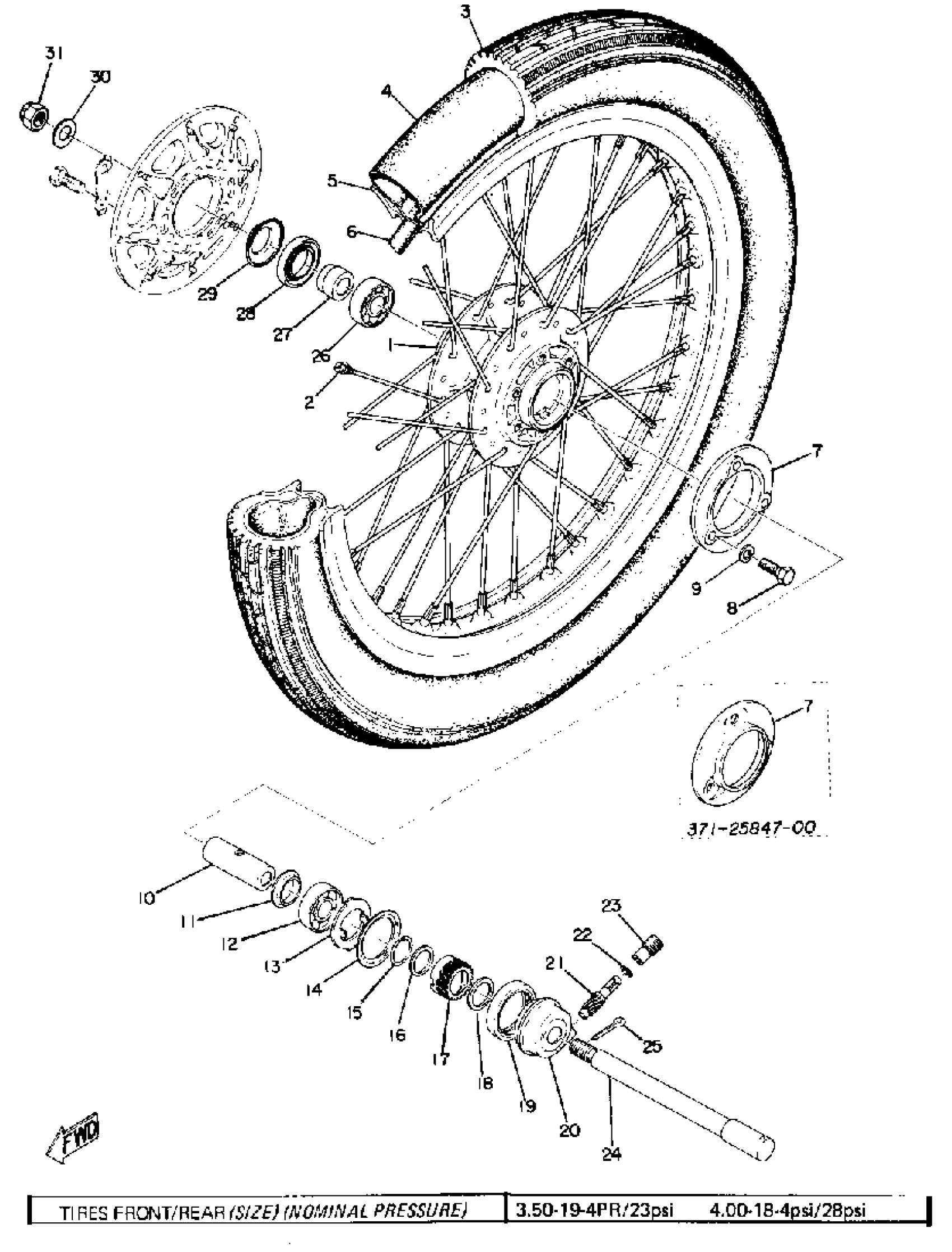

1973 Yamaha TX750 (TX750) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

341-25111-01-00

1
Out of stock

2

SPOKE SET, FRONT

341-25104-00-00

1
Out of stock

2

SPOKE SET, INNER 1

(341-25196-90-00)

1
Out of stock

2

SPOKE SET, OUTER 1

(341-25197-90-00)

1
Out of stock

3

350H19BS S21F 4PLY

(94135-19345-00)

1
Out of stock

4

TUBE(42X)

94210-19222-00

1

$46.48

In stock

5

RIM 1.85X19

(94418-19145-00)

1
Out of stock

6

BAND, RIM

94327-19111-00

1

$12.51

In stock

7

COVER, HOUSING

(341-25847-01-00)

1
Out of stock

7

COVER, HOUSING

(371-25847-00-00)

1
Out of stock

8

BOLT (341-25411-00)

90109-08367-00

1
Out of stock

8

SCREW, PAN HEAD

98580-08016-00

1
Out of stock

9

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

10

SPACER 341251170100

90560-17126-00

1
Out of stock

11

FLANGE, SPACER

146-25315-00-00

1

$6.38

In stock

12

BEARING(4HM)

93306-30317-00

—

$33.54

In stock

13

CLUTCH, METER (371,447)

341-25149-00-00

—
Out of stock

14

RETAINER, CLUTCH (371,447)

341-25846-00-00

—
Out of stock

15

RING, STOP

341-25137-00-00

1
Out of stock

16

WASHER PLATE 341251470000

90201-25286-00

—
Out of stock

17

GEAR, DRIVE

341-25135-01-00

1
Out of stock

18

WASHER PLATE 152172260000

90201-25490-00

—
Out of stock

19

OIL SEAL (28X47X7-102)

93102-28022-00

—

$12.63

In stock

20

HOUSING, GEAR

341-25191-01-00

1
Out of stock

21

GEAR, METER

306-25138-00-00

1
Out of stock

22

SHIM, ROD

102-18416-00-00

1
Out of stock

23

BUSH

306-25136-00-00

1
Out of stock

24

AXLE, WHEEL

99999-04072-00

—
Out of stock

25

PIN, COTTER

91490-30030-00

—

$7.15

In stock

26

BRG,R-B 6303 47MM 115G NK

93306-30302-00

—

$39.88

In stock

27

COLLAR

90387-17433-00

1
Out of stock

28

OIL SEAL (45X56X6)

93105-45017-00

—
Out of stock

29

COVER, HUB DUST

341-25118-00-00

1
Out of stock

30

WASHER, PLAIN

92990-14200-00

—

$1.71

In stock

31

NUT, CASTLE(2UJ)

90171-14056-00

—

$10.57

In stock
