1973 Yamaha TX750 (TX750) Seat Diagram

← All diagrams

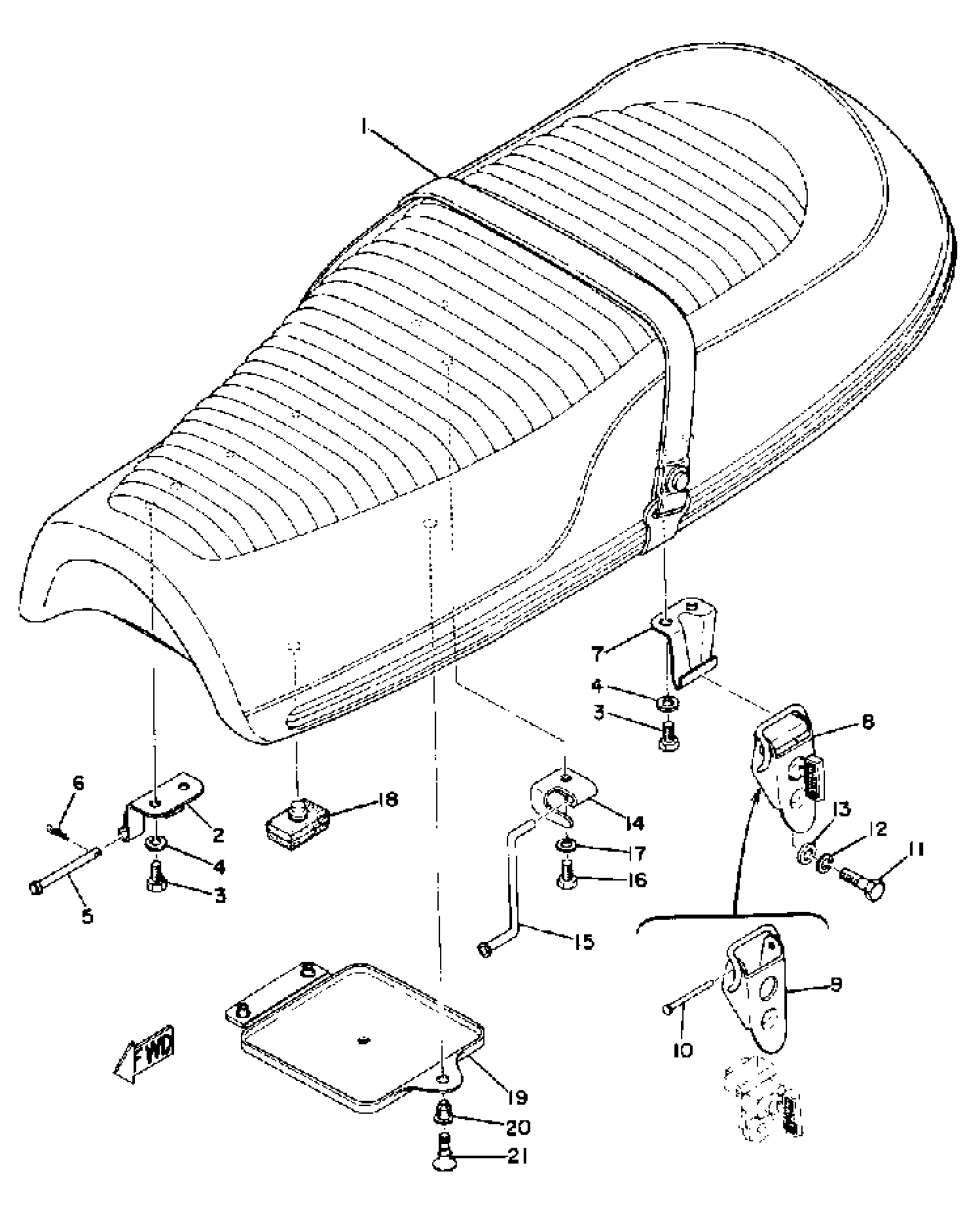

Find the part on the Seat diagram for your 1973 Yamaha TX750 (TX750), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha TX750 (TX750) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DOUBLE SEAT ASSEMBLY

(341-24730-02-00)

1
Out of stock

1

COVER, DOUBLE SEAT

(341-24731-00-00)

1
Out of stock

2

HINGE, SEAT

307-24726-00-33

1
Out of stock

3

BOLT (661)

97013-06012-00

1

$4.71

In stock

4

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

5

PIN, CLEVIS

91701-05055-00

1
Out of stock

6

CLIP (156-83525-00)

90468-10050-00

1

$2.31

In stock

7

BRACKET, SEAT

(341-24728-00-00)

1
Out of stock

8

SEAT LEVER ASSY

1K8-24705-00-00

—

$77.71

In stock

9

LEVER, SEAT

(341-24776-00-33)

1
Out of stock

10

PIN, SEAT FITTING

(341-24727-00-00)

1
Out of stock

10

PIN

(90243-04015-00)

1
Out of stock

11

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

14

BRACKET, SEAT

(278-24748-00-00)

1
Out of stock

15

STOPPER

(276-24768-00-00)

1
Out of stock

16

BOLT (661)

97013-06012-00

1

$4.71

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

DAMPER, SEAT

214-24724-00-00

—

$6.72

In stock

19

LID

2R6-28185-00-00

1
Out of stock

20

GROMMET (341-28187-00)

90480-06007-00

1
Out of stock

21

PLUNGER

341-28188-00-00

1
Out of stock
