1973 Yamaha TX750 (TX750) Box - Side Cover Left Diagram

← All diagrams

Find the part on the Box - Side Cover Left diagram for your 1973 Yamaha TX750 (TX750), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

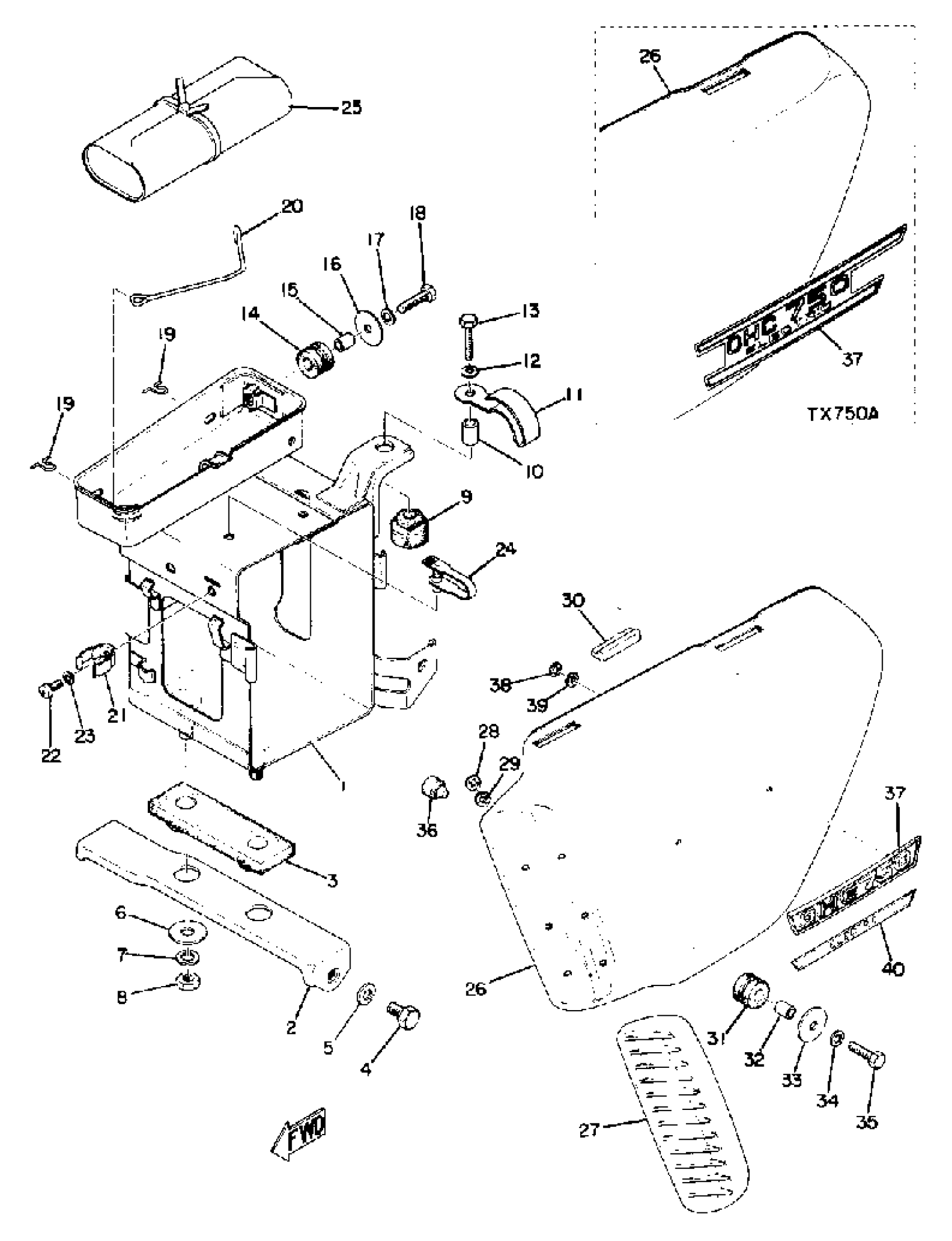

1973 Yamaha TX750 (TX750) Box - Side Cover Left Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOX

(341-21170-01-33)

1
Out of stock

2

STAY, FLT CHMBR MNT

(341-21166-01-00)

1
Out of stock

3

DAMPER

(341-21747-00-00)

1
Out of stock

4

BOLT, HEXAGON

97013-08016-00

1

$1.32

In stock

5

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

6

WASHER, PLATE (5J0)

90201-085E6-00

1
Out of stock

7

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

8

NUT(6L2)

95333-08600-00

1

$3.20

In stock

9

DAMPER

(341-21746-00-00)

1
Out of stock

10

COLLAR(2UJ)

90387-061V1-00

1

$6.46

In stock

11

HOOK, HELMET

(341-24818-00-00)

1
Out of stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

BOLT(JF7)

97080-06030-00

1

$3.45

In stock

14

GROMMET 839774310000

90480-14023-00

1

$4.74

In stock

15

COLLAR (J10)

90387-06026-00

1

$6.91

In stock

16

WASHER, PLATE 1012832300

90201-06066-00

—
Out of stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

19

HOOK, TOOL BAND

256-21366-00-00

1
Out of stock

20

BAND, TOOL

(341-21376-00-00)

1
Out of stock

21

CLAMP

(90465-07006-00)

1
Out of stock

22

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock

23

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

24

BAND

(341-21647-00-00)

1
Out of stock

25

TOOL KIT

3J3-W2810-00-00

1
Out of stock

26

COVER, SIDE 1

341-21711-00-52

1
Out of stock

26

COVER, SIDE 1

(341-21711-01-R6)

1
Out of stock

27

MOLD 1 (341-21781-00-98)

341-21781-00-00

1
Out of stock

28

NUT SPRING 116283170100

90183-04005-00

—

$0.74

In stock

29

WASHER PLATE 174283160000

90202-04003-00

—

$6.69

In stock

30

DAMPER

(341-21717-00-00)

1
Out of stock

31

GROMMET 839774310000

90480-14023-00

1

$4.74

In stock

32

COLLAR (J10)

90387-06026-00

1

$6.91

In stock

33

WASHER, PLATE 1012832300

90201-06066-00

—
Out of stock

34

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

35

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

36

DAMPER, LOCATING 1

(137-21778-00-00)

1
Out of stock

37

EMBLEM 4

(341-21784-00-00)

1
Out of stock

37

EMBLEM 7

341-21787-02-00

1
Out of stock

38

NUT SPRING 116283170100

90183-04005-00

—

$0.74

In stock

39

WASHER PLATE 174283160000

90202-04003-00

—

$6.69

In stock

40

EMBLEM 5

341-21785-00-00

1
Out of stock
