1973 Yamaha TX750 (TX750) Frame Diagram

← All diagrams

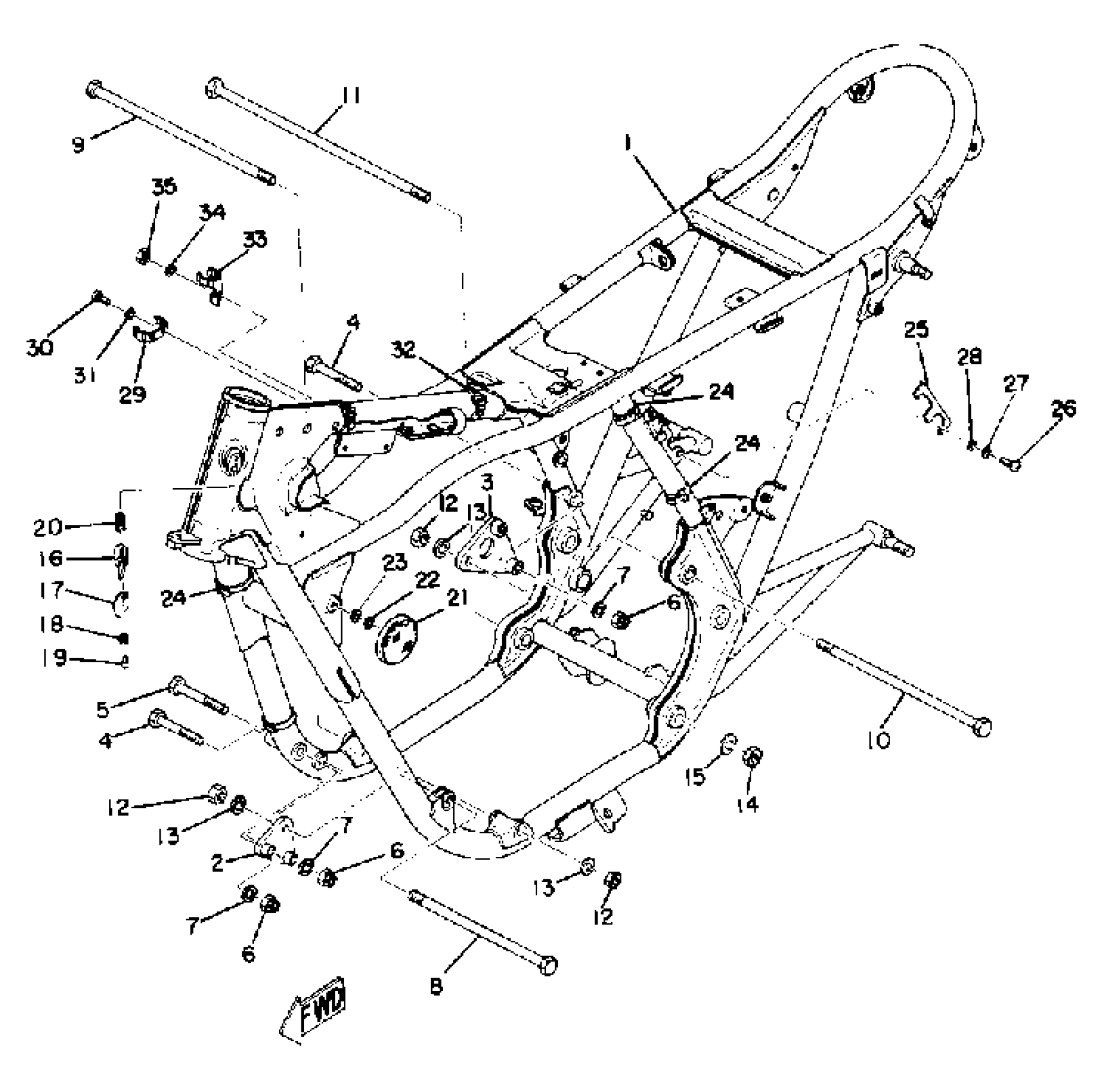

Find the part on the Frame diagram for your 1973 Yamaha TX750 (TX750), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha TX750 (TX750) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(341-21110-06-33)

1
Out of stock

2

BRACKET, FRT UPR 2

(341-21416-00-00)

1
Out of stock

3

BRACKET, REAR UPR 1

(341-21425-00-00)

1
Out of stock

4

BOLT

97021-08065-00

1
Out of stock

5

BOLT(6TC)

97027-08070-00

—

$6.88

In stock

6

NUT, U

95617-08100-00

1

$6.78

In stock

7

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

8

BOLT

90105-10042-00

1
Out of stock

9

BOLT, WASHER BASED

(90105-10047-00)

1
Out of stock

10

BOLT, WASHER BASED

(90105-10046-00)

1
Out of stock

11

BOLT, WASHER BASED (90101-12110)

90105-12049-00

1
Out of stock

12

NUT(3BM)

95314-10600-00

1

$1.74

In stock

13

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

14

NUT(3DM)

95304-12600-00

1

$6.68

In stock

15

YBS67-12 WASHER,SPRING

92990-12100-00

1

$6.68

In stock

16

STEERING LOCK ASSY

341-23408-01-00

1
Out of stock

17

CAP, HANDLE LOCK

(134-23484-10-00)

1
Out of stock

18

WASHER, WAVE

90206-04003-00

1
Out of stock

19

RIVET 214234830000

90269-04003-00

—

$6.88

In stock

20

SPRING, CONICAL

90502-08005-00

1
Out of stock

21

REFLECTOR, FRONT 1

355-85111-01-00

—
Out of stock

22

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

23

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

24

BAND

341-26397-01-00

1
Out of stock

25

CLAMP, COUPLER

(341-82524-00-00)

1
Out of stock

26

SCREW, PAN HEAD(GA5)

98580-04014-00

—

$2.78

In stock

27

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

28

YBS66-4 WASHER, PLAIN

92990-04200-00

—

$1.10

In stock

29

CLAMP

(90465-07004-00)

1
Out of stock

30

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock

31

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

32

BAND, SWITCH CORD

25G-83936-01-00

—

$4.12

In stock

33

CLAMP, COUPLER

(341-82525-00-00)

1
Out of stock

34

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

35

NUT(650)

95380-06700-00

—

$6.17

In stock
