Find the part on the OIL Pump diagram for your 1973 Yamaha TX750 (TX750), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

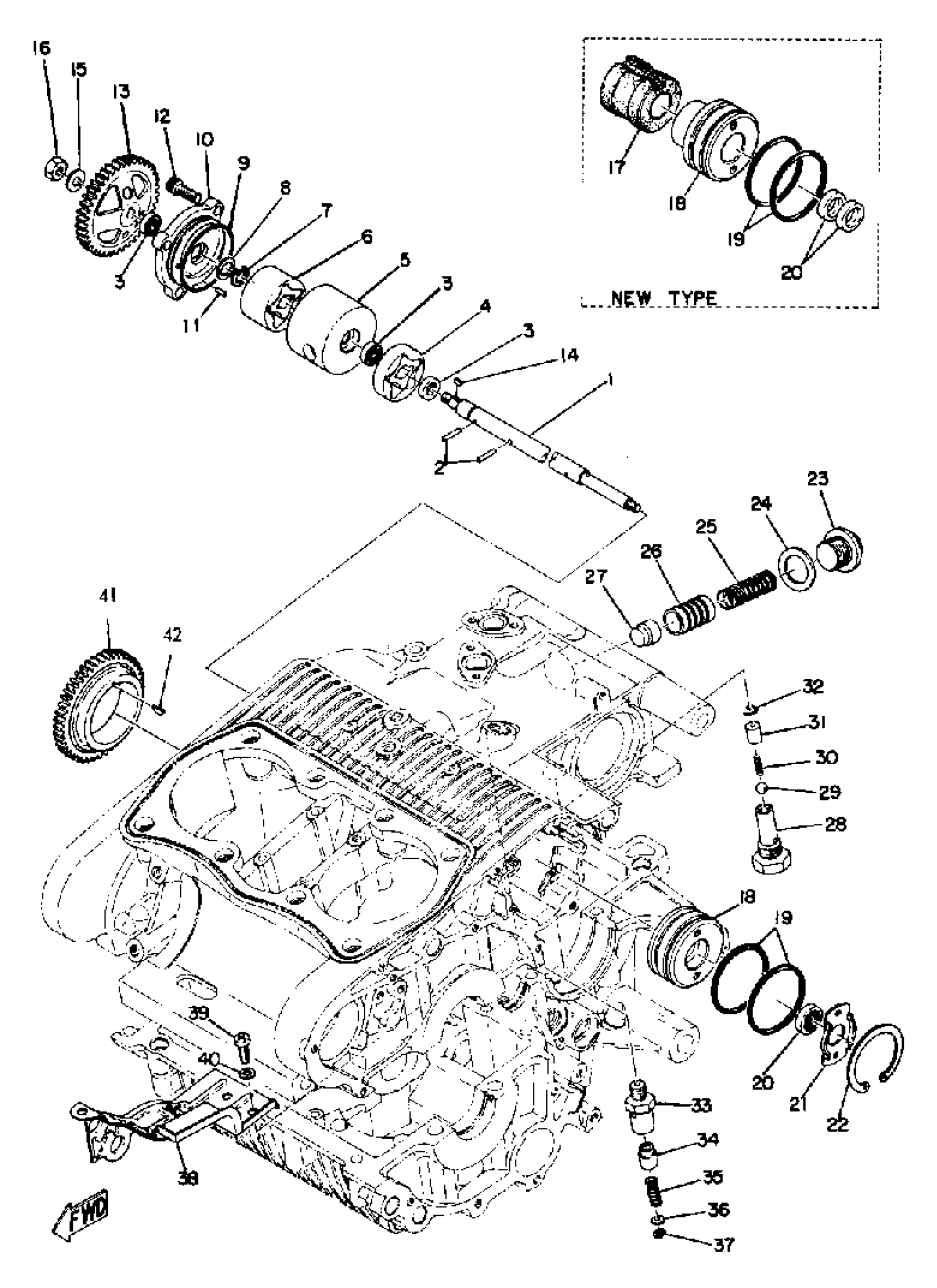

1973 Yamaha TX750 (TX750) OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, PUMP

(341-13314-02-00)

1
Out of stock

1

COVER ASSEMBLY

(341-13450-00-00)

1
Out of stock

2

PIN,DOWEL

93603-17070-00

1

$3.03

In stock

3

OIL SEAL (11X15X3-341)

93104-11038-00

1
Out of stock

4

ROTOR ASSEMBLY 1

(341-13310-02-00)

1
Out of stock

5

HOUSING, ROTOR

(341-13336-01-00)

1
Out of stock

6

ROTOR ASSEMBLY 2

341-13320-02-00

1
Out of stock

7

CIRCLIP (341)

93440-11024-00

1
Out of stock

8

WASHER, PLATE

(90201-11154-00)

1
Out of stock

9

O-RING

93210-48210-00

1
Out of stock

10

COVER, PUMP

(341-13316-01-00)

1
Out of stock

11

. PIN, DOWEL

93603-08072-00

1
Out of stock

12

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

13

GEAR, PUMP DRIVEN

(341-13325-01-00)

1
Out of stock

14

KEY, STRAIGHT

90282-03003-00

1
Out of stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

NUT(650)

95380-06700-00

—

$6.17

In stock

17

PLUG

(341-13455-00-00)

1
Out of stock

18

COVER, ROTOR FILTER

(341-13452-03-00)

1
Out of stock

19

O-RING (256)

93210-45150-00

—
Out of stock

20

. OIL SEAL, S-TYPE

93101-11063-00

1
Out of stock

21

PLATE, ROTOR FILTER

(341-13453-00-00)

1
Out of stock

22

CIRCLIP, R-TYPE

(93420-50012-00)

1
Out of stock

23

PLUG, STRAIGHT SCRW

(90340-20011-00)

1
Out of stock

24

GASKET

(341-13477-01-00)

1
Out of stock

25

SPRING, COMPRESSION (341-13469-00)

90501-08044-00

1
Out of stock

26

PLUNGER, OIL PUMP

(341-13468-01-00)

1
Out of stock

27

SEAT, VALVE

(341-13479-01-00)

1
Out of stock

28

BOLT, UNION

(90401-16009-00)

1
Out of stock

29

BALL

93501-04011-00

—
Out of stock

30

SPRING, COMPRESSION

(90501-07030-00)

1
Out of stock

31

PLUG

(341-13497-00-00)

1
Out of stock

32

CIRCLIP, INNER (341-13486-00)

93450-08036-00

1
Out of stock

33

SCREW, SPEC''L SHAPE (341-13495-00)

90149-10069-00

1
Out of stock

34

PLUNGER, RELIEF

(341-13483-00-00)

1
Out of stock

35

SPRING, COMPRESSION

(90501-10069-00)

1
Out of stock

36

SHIM

(341-13485-00-00)

1
Out of stock

37

CIRCLIP, R-TYPE

(93420-11030-00)

1
Out of stock

38

PLATE, BAFFLE

(341-13317-02-00)

1
Out of stock

39

SCREW, PAN

98507-06014-00

—

$6.18

In stock

40

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

41

GEAR, PUMP DRIVE

(341-13324-02-00)

1
Out of stock

42

KEY, WOODRUFF

90280-03023-00

1
Out of stock
