1973 Yamaha TX750 (TX750) Crank - Piston Diagram

← All diagrams

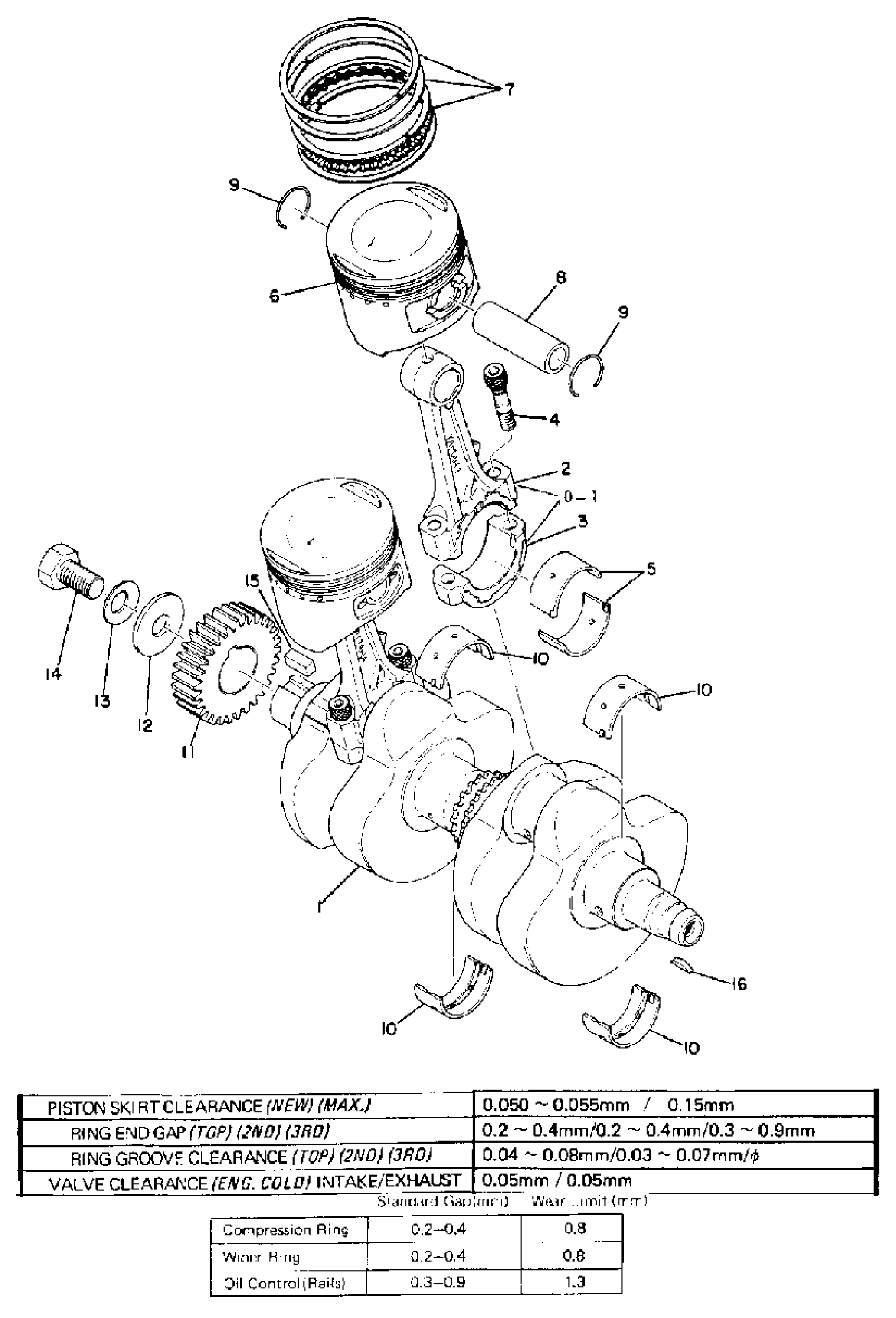

Find the part on the Crank - Piston diagram for your 1973 Yamaha TX750 (TX750), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha TX750 (TX750) Crank - Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT

(341-11411-12-00)

1
Out of stock

1

CONNECTING ROD ASSEMBLY

(341-11650-02-00)

1
Out of stock

4

BOLT, CON ROD

(341-11654-01-00)

1
Out of stock

5

PLANE BRNG, CON ROD

(341-11656-00-00)

1
Out of stock

5

PLANE BRNG, CON ROD

(341-11656-10-00)

1
Out of stock

5

PLANE BRNG, CON ROD

341-11656-20-00

1
Out of stock

5

PLANE BRNG, CON ROD

(341-11656-30-00)

1
Out of stock

5

PLANE BRNG, CON ROD

(341-11656-40-00)

1
Out of stock

6

PISTON STD

(341-11631-22-96)

1
Out of stock

6

PISTON 1 O/S 0.25 (341-11635-21)

341-11635-22-00

1
Out of stock

6

PISTON 2 O/S 0.50

341-11636-22-00

1
Out of stock

6

PISTON 3 O/S 0.75

(341-11637-22-00)

1
Out of stock

6

PISTON 4 O/S 1.00

(341-11638-22-00)

1
Out of stock

7

PISTON RINGSET STD

341-11610-01-00

1
Out of stock

7

PISTON RINGSET 1ST

341-11610-11-00

1
Out of stock

7

PISTON RINGSET 2ND

341-11610-21-00

1
Out of stock

7

PISTON RINGSET 3RD

(341-11610-31-00)

1
Out of stock

7

PISTON RINGSET 4TH

(341-11610-41-00)

1
Out of stock

8

PIN, PISTON

583-11633-00-00

—

$15.86

In stock

9

CIRCLIP 341116340000

93450-22027-00

—

$6.00

In stock

10

PLANE BRNG, CRSF 1

341-11416-00-00

1
Out of stock

10

PLANE BRNG, CRSF 1

(341-11416-10-00)

1
Out of stock

10

PLANE BRNG, CRSF 1

341-11416-20-00

1
Out of stock

10

PLANE BRNG, CRSF 1

(341-11416-30-00)

1
Out of stock

10

PLANE BRNG, CRSF 1

(341-11416-40-00)

1
Out of stock

11

GEAR, PRI DRIVE

(341-16111-00-52)

1
Out of stock

11

GEAR, PRI DRIVE

(341-16111-00-52)

1
Out of stock

11

GEAR, PRI DRIVE

(341-16111-00-54)

1
Out of stock

11

GEAR, PRI DRIVE

(341-16111-00-54)

1
Out of stock

11

GEAR, PRI DRIVE

(341-16111-00-56)

1
Out of stock

11

GEAR, PRI DRIVE

(341-16111-00-56)

1
Out of stock

11

GEAR, PRI DRIVE

(341-16111-00-58)

1
Out of stock

11

GEAR, PRI DRIVE

(341-16111-00-58)

1
Out of stock

11

GEAR, PRI DRIVE

(341-16111-00-60)

1
Out of stock

11

GEAR, PRI DRIVE

(341-16111-00-60)

1
Out of stock

11

GEAR, PRI DRIVE

(341-16111-00-62)

1
Out of stock

11

GEAR, PRI DRIVE

(341-16111-00-62)

1
Out of stock

11

GEAR, PRI DRIVE

(341-16111-01-24)

1
Out of stock

11

GEAR, PRI DRIVE

(341-16111-01-24)

1
Out of stock

11

GEAR, PRI DRIVE

(341-16111-01-25)

1
Out of stock

11

GEAR, PRI DRIVE

(341-16111-01-25)

1
Out of stock

11

GEAR, PRI DRIVE

(341-16111-01-26)

1
Out of stock

11

GEAR, PRI DRIVE

(341-16111-01-26)

1
Out of stock

11

GEAR, PRI DRIVE

(341-16111-01-27)

1
Out of stock

11

GEAR, PRI DRIVE

(341-16111-01-27)

1
Out of stock

11

GEAR, PRI DRIVE

(341-16111-01-28)

1
Out of stock

11

GEAR, PRI DRIVE

(341-16111-01-28)

1
Out of stock

12

WASHER, PLATE

(90201-14228-00)

1
Out of stock

13

WASHER, CONICAL SPR

(90208-14017-00)

1
Out of stock

14

BOLT, HEXAGON

(97301-14025-00)

1
Out of stock

15

KEY, STRAIGHT (584)

90282-07023-00

—
Out of stock

16

KEY,WOODRUFF

90280-04005-00

1
Out of stock
