1973 Yamaha TX750 (TX750) Crankcase Diagram

← All diagrams

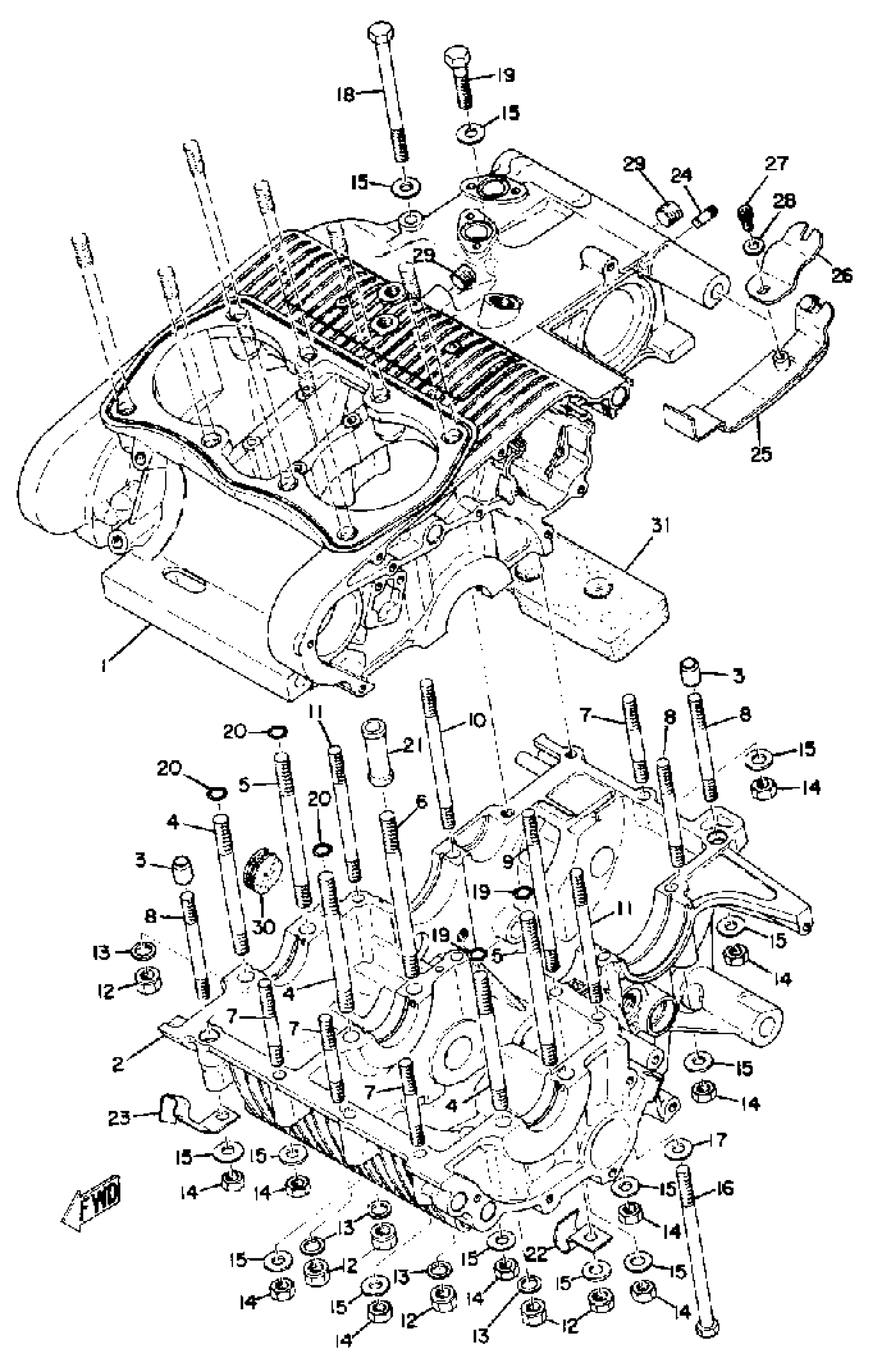

Find the part on the Crankcase diagram for your 1973 Yamaha TX750 (TX750), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha TX750 (TX750) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

PARTS KIT 750

(341-15000-00-00)

1
Out of stock

1

CRANKCASE ASSEMBLY

(341-15100-Y7-00)

1
Out of stock

3

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

4

BOLT, STUD

(90116-10090-00)

1
Out of stock

5

BOLT, STUD

(90116-10091-00)

1
Out of stock

6

BOLT, STUD

(90116-10092-00)

1
Out of stock

7

BOLT, STUD (341-15194-00)

90116-08154-00

1
Out of stock

8

BOLT STUD 276113610000

90116-08065-00

1
Out of stock

9

BOLT, STUD

(90116-08073-00)

1
Out of stock

10

BOLT, STUD

(90116-08070-00)

1
Out of stock

11

BOLT, STUD (1A1)

90116-08232-00

1
Out of stock

12

NUT, SPEC''L SHAPE

(90179-10175-00)

1
Out of stock

13

WASHER PLATE 256111740000

90201-10131-00

1

$6.97

In stock

14

NUT(6L2)

95333-08600-00

1

$3.20

In stock

15

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

16

BOLT, HEXAGON

97027-08140-00

—
Out of stock

17

WASHER, PLATE 3411117500

90201-08087-00

—

$3.13

In stock

18

BOLT, FLANGE(2UJ)

95814-08110-00

—

$5.66

In stock

19

BOLT

97014-08040-00

—

$5.26

In stock

20

O-RING (341)

93210-09192-00

—

$4.35

In stock

21

COLLAR (341-15337-00)

90387-10092-00

1
Out of stock

22

CLAMP

(90462-08013-00)

1
Out of stock

23

CLAMP

(90465-08008-00)

1
Out of stock

24

CONNECTOR, SCTN PPE

(341-13115-10-00)

1
Out of stock

25

GUIDE, CHAIN

(341-17466-01-00)

1
Out of stock

26

GUIDE, CHAIN 1

(341-17467-00-00)

1
Out of stock

27

BOLT,SOCKET

91317-06010-00

—

$6.91

In stock

28

WASHER, PLATE (371)

90201-06431-00

—
Out of stock

29

PLUG, BLIND 1

(341-15167-90-00)

1
Out of stock

29

PLUG, TAPER SCREW

(90344-52001-00)

1
Out of stock

30

PLUG, SPEC''L SHAPE

(90338-23001-00)

1
Out of stock

31

DUMMY, RUBBER

(341-15108-00-00)

1
Out of stock
