1973 Yamaha TX750 (TX750) Kick Starter Diagram

← All diagrams

Find the part on the Kick Starter diagram for your 1973 Yamaha TX750 (TX750), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

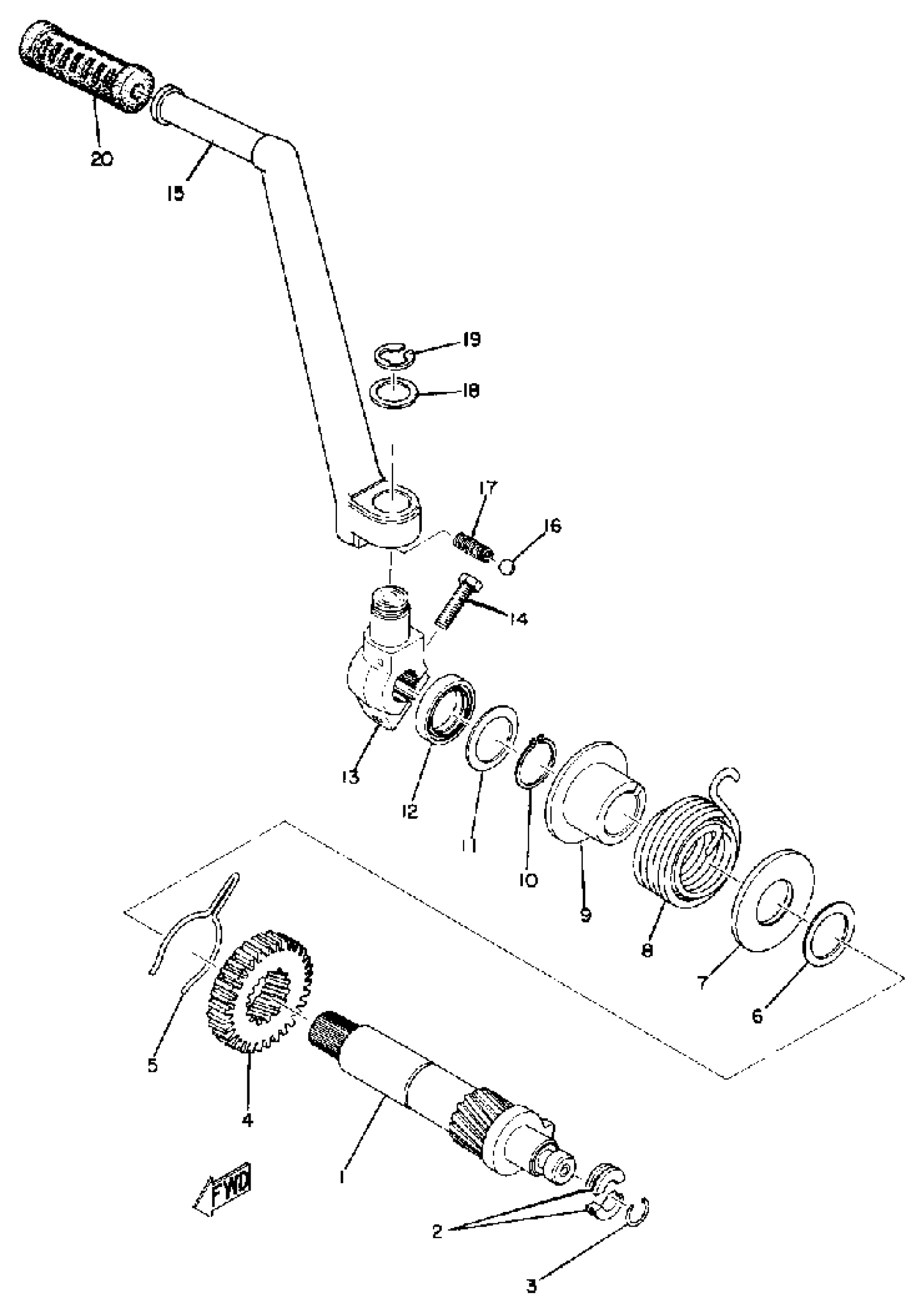

1973 Yamaha TX750 (TX750) Kick Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK AXLE ASSEMBLY

(256-15660-02-00)

1
Out of stock

2

HOLDER, KICK GEAR

(256-15654-00-00)

1
Out of stock

3

CLIP

(256-15673-00-00)

1
Out of stock

4

GEAR, KICK

306-15641-01-00

1
Out of stock

5

CLIP

(90468-26044-00)

1
Out of stock

6

SHIM (0.5MM)

611-45567-00-05

1
Out of stock

7

SPACER (856-23858-00)

90560-25048-00

1
Out of stock

8

SPRING, TORSION

90508-32062-00

1
Out of stock

9

GUIDE, SPRING

256-15664-01-00

1
Out of stock

10

CIRCLIP (256)

93410-25017-00

1
Out of stock

11

WASHER, PLATE(1FK)

90201-256K6-00

—

$3.49

In stock

12

OIL SEAL (25X35X7-256)

93102-25064-00

1
Out of stock

13

BOSS, KICK CRANK (256-15621-00)

341-15621-00-00

1
Out of stock

14

BOLT, HEXAGON

97013-08030-00

1

$3.20

In stock

15

CRANK, KICK

(341-15611-00-93)

1
Out of stock

16

BALL

93505-16006-00

—

$2.22

In stock

17

SPRING, COMPRESSION

(90501-15091-00)

1
Out of stock

18

WASHER

90201-17256-00

1
Out of stock

19

CIRCLIP (E-12)

93430-12022-00

1
Out of stock

20

COVER, KICK LEVER

214-15618-00-00

—

$6.72

In stock
