1974 Yamaha TX650 (TX650A) Headlight XS650C Diagram

← All diagrams

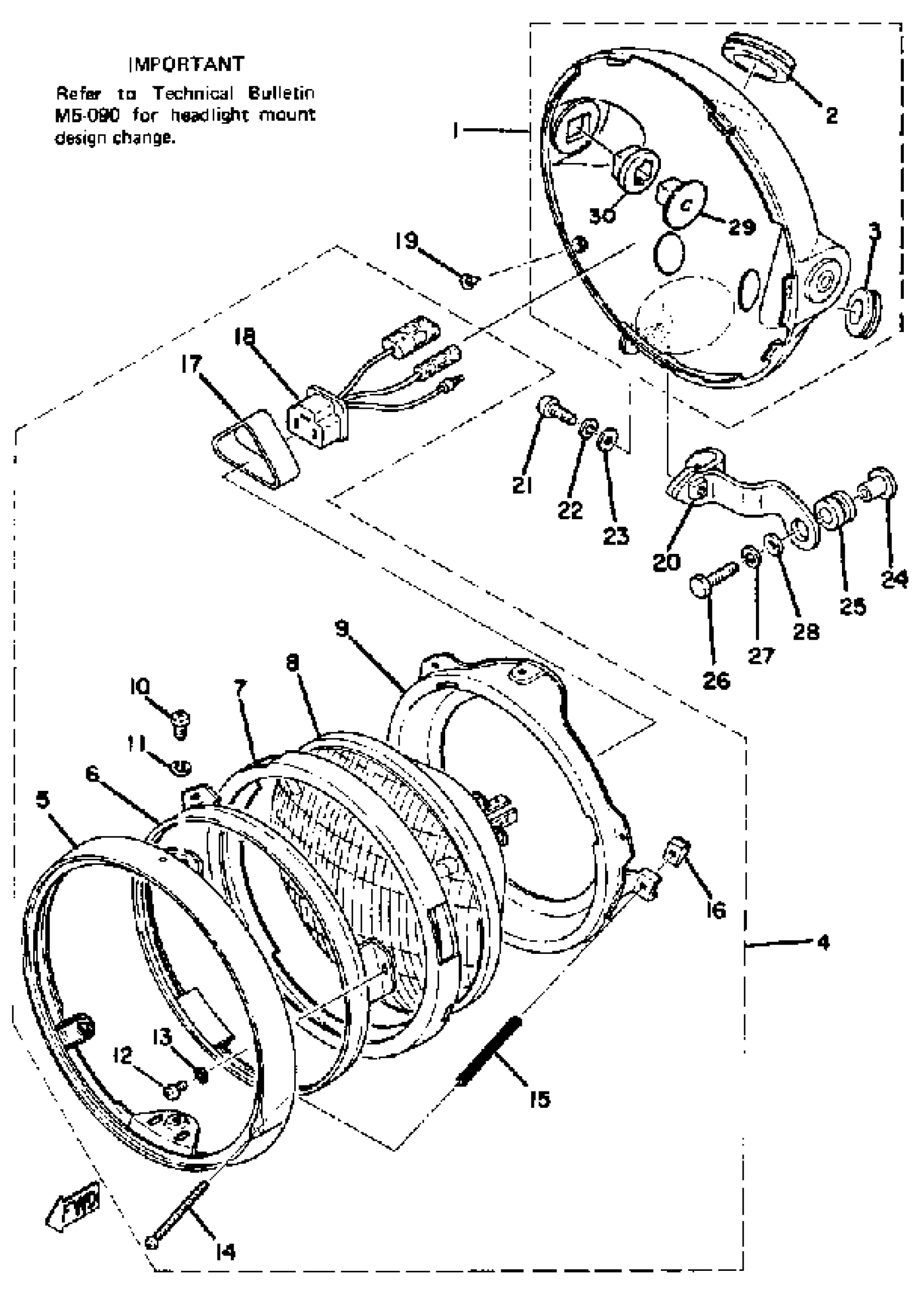

Find the part on the Headlight XS650C diagram for your 1974 Yamaha TX650 (TX650A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha TX650 (TX650A) Headlight XS650C Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSEMBLY

584-84330-61-93

1
Out of stock

2

GROMMET, WIREHARNESS

214-84153-60-00

1
Out of stock

3

GROMMET (L)

150-84153-00-00

1

$17.41

In stock

5

RIM, HEAD LAMP

341-84315-40-00

1
Out of stock

6

. RING, RETAINING

447-84395-60-00

1
Out of stock

7

. GASKET, LENS

447-84322-60-00

1
Out of stock

8

. LENS ASSEMBLY

341-84320-60-00

1
Out of stock

9

RING,MOUNTING

447-84394-69-00

1
Out of stock

10

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

11

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

12

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

13

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

14

SCREW 214841316100

90157-04001-00

1

$5.35

In stock

15

SPRING, COMPRESSION (ITALY)

447-84332-60-00

1

$9.22

In stock

16

NUT, ADJUST

198-84334-60-00

1

$6.43

In stock

17

. COVER, SOCKET

341-84397-61-00

1
Out of stock

18

SOCKET

371-84312-60-00

—

$26.52

In stock

19

SCREW, OVAL HEAD (1A0)

90152-05005-00

—

$2.82

In stock

20

STAY, HEADLIGHT 1

(447-84318-01-00)

1
Out of stock

21

SCREW, PAN HEAD(6E5)

97880-06018-00

1

$4.19

In stock

22

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

23

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

24

COLLAR

90387-06158-00

—

$6.17

In stock

25

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock

26

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

27

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

28

WASHER, PLATE 1012832300

90201-06066-00

—
Out of stock

29

COLLAR, BODY FTNG

214-84145-60-00

1
Out of stock

30

HEAD LAMP IMPRO KI

(447-84000-00-00)

1
Out of stock

30

DAMPER, HEADLIGHT

(447-84345-60-00)

1
Out of stock
