1973 Yamaha TX500 (TX500) Shifter 1 Diagram

← All diagrams

Find the part on the Shifter 1 diagram for your 1973 Yamaha TX500 (TX500), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

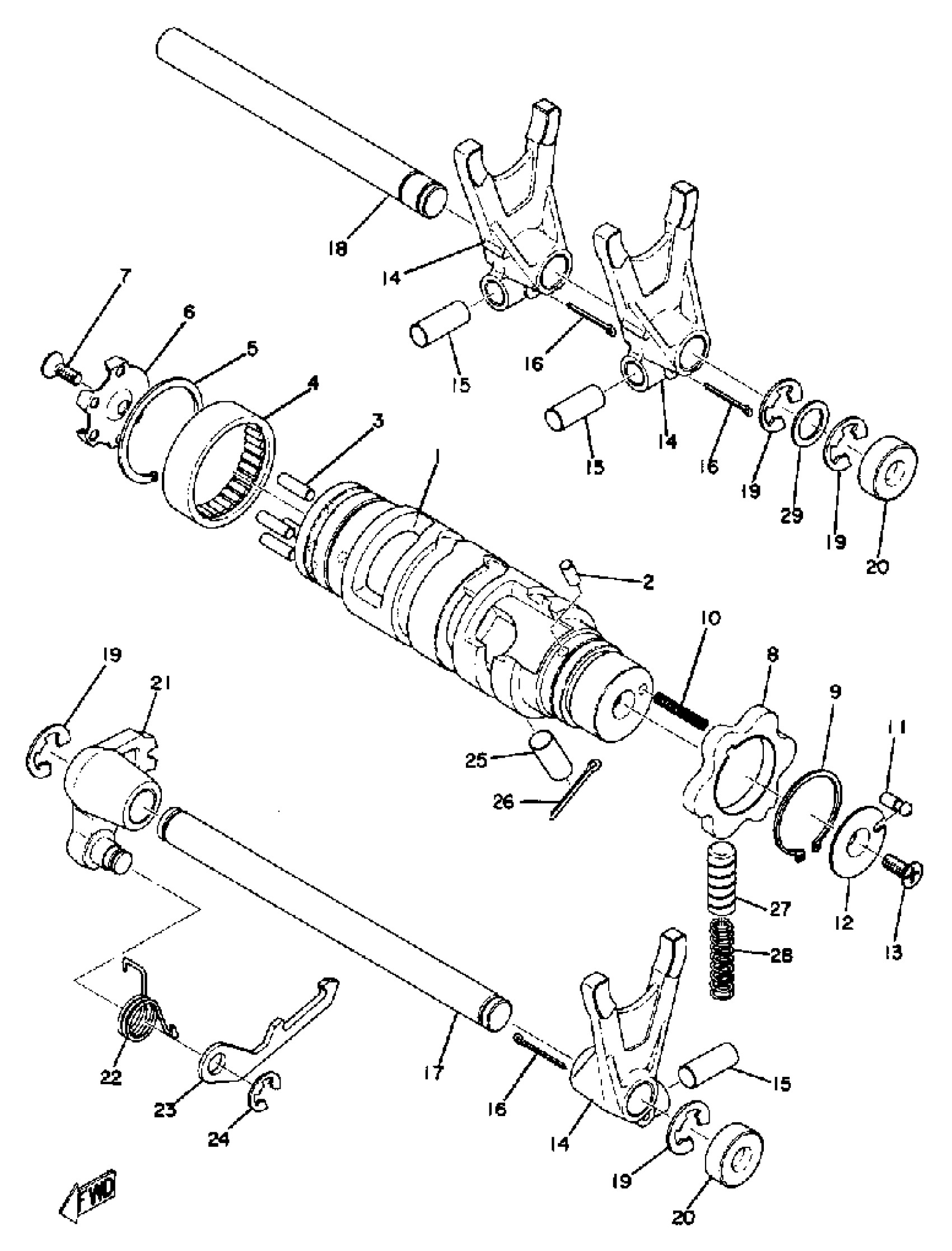

1973 Yamaha TX500 (TX500) Shifter 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAM, SHIFT

(371-18541-00-00)

1
Out of stock

2

PIN, DOWEL (278)

93604-08071-00

1

$6.17

In stock

3

PIN, DOWEL(4SS)

93604-18251-00

1
Out of stock

4

BRG,CYL-CAL ROLLER 22G NT

93315-23612-00

1
Out of stock

5

CIRCLIP (371)

93440-34025-00

1
Out of stock

6

PLATE, SIDE 1

(371-18561-00-00)

1
Out of stock

7

SCREW, FLAT

98707-05012-00

1
Out of stock

8

PLATE, STOPPER

360-18141-01-00

1
Out of stock

9

CIRCLIP(4A6)

99009-30400-00

1

$6.55

In stock

10

1

$6.17

In stock

11

POINT, NEUTRAL

4UN-18542-00-00

1

$8.44

In stock

12

PLATE, SIDE 2

278-18566-00-00

1
Out of stock

13

SCREW, FLAT

98707-05012-00

1
Out of stock

14

FORK, SHIFT 1

(371-18511-00-00)

1
Out of stock

15

PIN, STRAIGHT

90250-08017-00

1
Out of stock

16

PIN, COTTER(6L5)

91490-25030-00

—

$2.85

In stock

17

BAR, SHIFT FORK GUIDE 1

278-18531-00-00

1
Out of stock

18

BAR, SHIF FRK GDE 2

(278-18535-00-00)

1
Out of stock

19

CIRCLIP

99006-10600-00

—

$6.91

In stock

20

PLUG(3AJ)

90338-22207-00

—

$3.92

In stock

21

LEVER, SHIFT 2

371-18122-01-00

1
Out of stock

22

SPRING, TORSION

(90508-08009-00)

1
Out of stock

23

LEVER, SHIFT 3

(371-18151-00-00)

1
Out of stock

24

CIRCLIP

99080-07600-00

1

$2.89

In stock

25

PIN, STRAIGHT

(90250-08022-00)

1
Out of stock

26

PIN, COTTER(6L5)

91490-25030-00

—

$2.85

In stock

27

STOPPER, CAM

278-18547-02-00

1
Out of stock

28

SPRING, COMPRESSION

90501-10196-00

1
Out of stock

29

WASHER, PLATE

(90201-12161-00)

1
Out of stock
