1973 Yamaha TX500 (TX500) Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1973 Yamaha TX500 (TX500), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

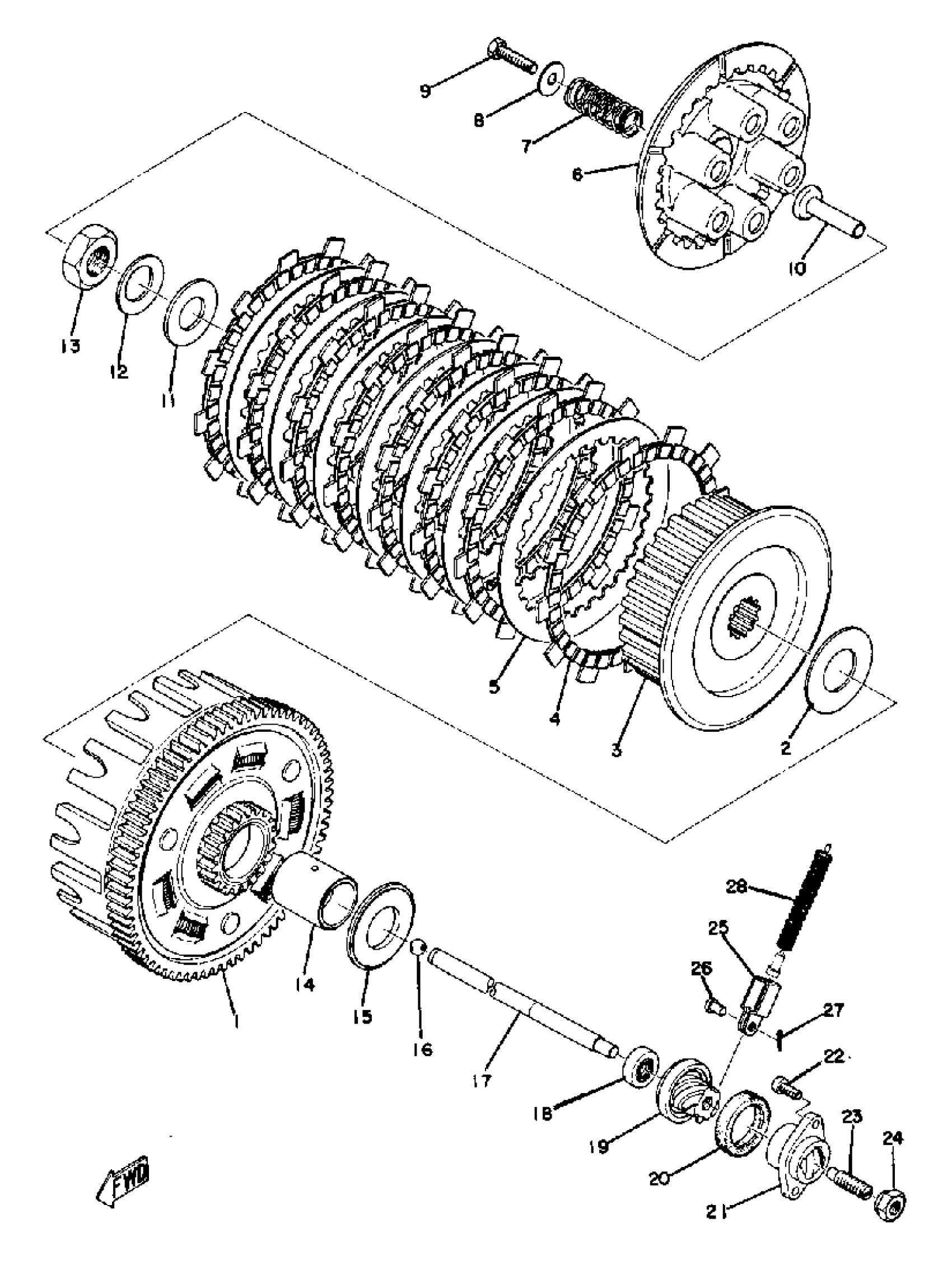

1973 Yamaha TX500 (TX500) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRI DRVN GEAR

(1A8-16150-00-00)

1
Out of stock

1

CLUTCH ASSEMBLY

(1A8-16301-00-00)

1
Out of stock

2

PLATE, THRUST (2)

170-16164-00-00

1
Out of stock

3

BOSS, CLUTCH

(371-16371-00-00)

1
Out of stock

4

PLATE, FRICTION

4H7-16321-02-00

1

$20.06

In stock

5

PLATE, CLUTCH 2

371-16325-10-00

—
Out of stock

6

PLATE, PRESSURE 1

(371-16351-00-00)

1
Out of stock

7

SPRING,COMPRESSION 2561633310

90501-23142-00

1
Out of stock

8

WASHER, PLATE

90201-06020-00

1

$6.28

In stock

9

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

10

ROD, PUSH

174-16356-00-00

1
Out of stock

11

WASHER (6E5)

92990-18200-00

1

$2.23

In stock

12

SPRING

214-16119-00-00

—
Out of stock

13

NUT

90170-18089-00

1
Out of stock

14

SPACER

278-16181-01-00

1
Out of stock

15

PLATE, THRUST 1

(278-16154-00-00)

1
Out of stock

16

BALL

93505-16006-00

—

$2.22

In stock

17

ROD, PUSH 2

371-16357-02-00

1
Out of stock

18

OIL SEAL(12E)

93109-08061-00

—

$5.68

In stock

19

PUSH LEVER ASSEMBLY

371-16340-00-00

1
Out of stock

20

SEAL, DUST

214-16347-01-00

1
Out of stock

21

HOUSING, PUSH SCREW

371-16396-00-00

1
Out of stock

22

SCREW,PAN HEAD (646)

98580-05012-00

—

$5.60

In stock

23

BOLT SET 256163430100

90113-08021-00

—
Out of stock

24

NUT

90179-08179-00

—
Out of stock

25

JOINT

214-16389-00-00

—
Out of stock

26

PIN W/HOLE 214163790000

90240-06005-00

—

$10.66

In stock

27

. PIN, COTTER

91401-10015-00

1
Out of stock

28

SPRING, COMPRESSION (371-16345-00)

90501-08209-00

1
Out of stock
