1974 Yamaha TW433F Tachometer Unit Diagram

← All diagrams

Find the part on the Tachometer Unit diagram for your 1974 Yamaha TW433F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

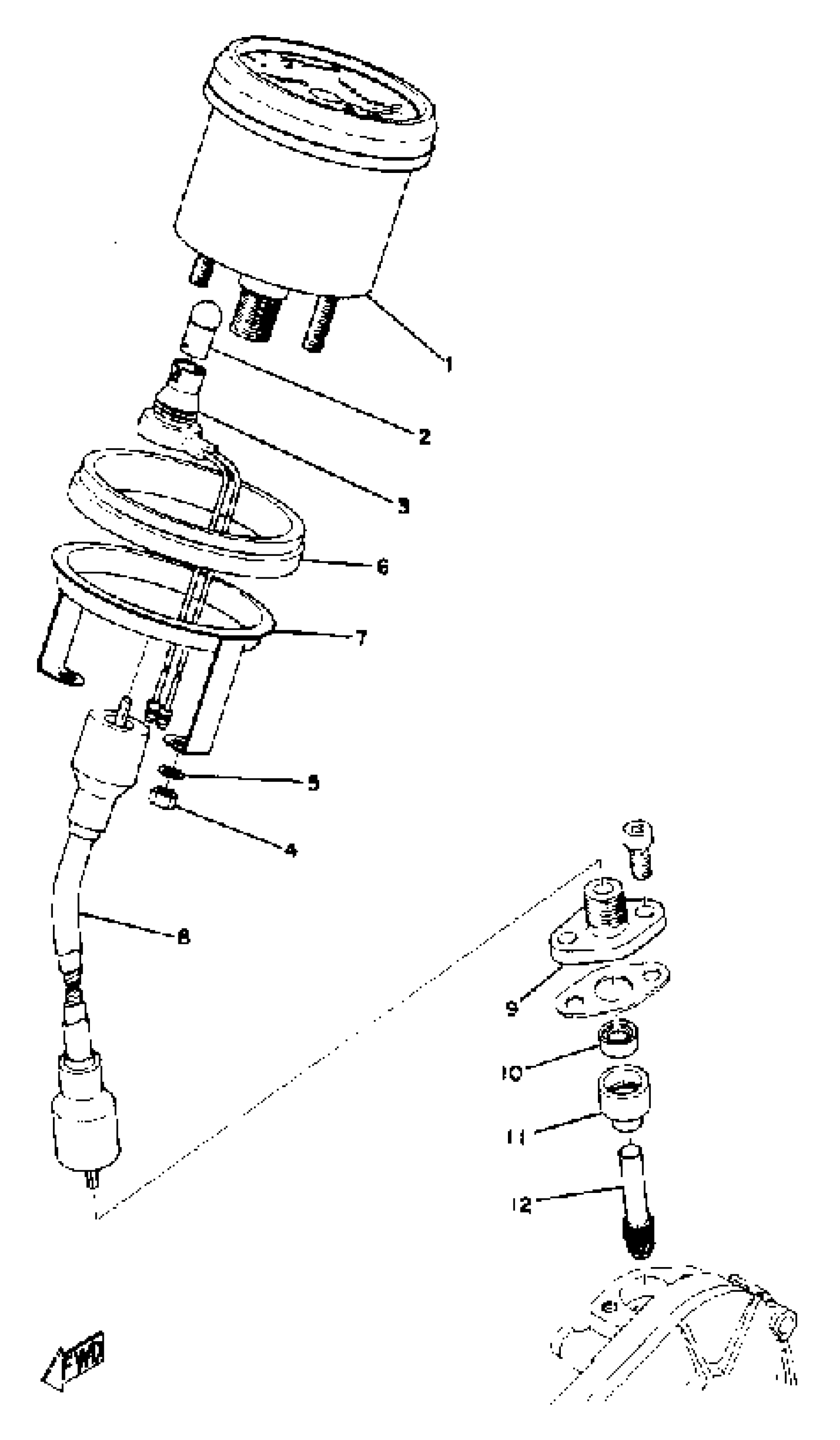

1974 Yamaha TW433F Tachometer Unit Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TACH-TW433F

(ACC-01200-43-74)

1
Out of stock

2

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

3

SOCKET, METER

(861-83536-40-00)

1
Out of stock

4

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

5

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

6

. DAMPER

861-83523-40-00

1
Out of stock

7

PLATE, FITTING

863-83514-40-00

1
Out of stock

8

TACHOMETER CABLE

819-83560-01-00

1
Out of stock

9

CAP, HOUSING

821-17819-00-00

1
Out of stock

10

OIL SEAL (6X12X4-821)

93104-06033-00

1

$6.49

In stock

11

BUSH, DRIVEN GEAR OUTER

821-17843-00-00

1
Out of stock

12

GEAR, DRIVEN (10T)

813-17841-00-00

1
Out of stock
