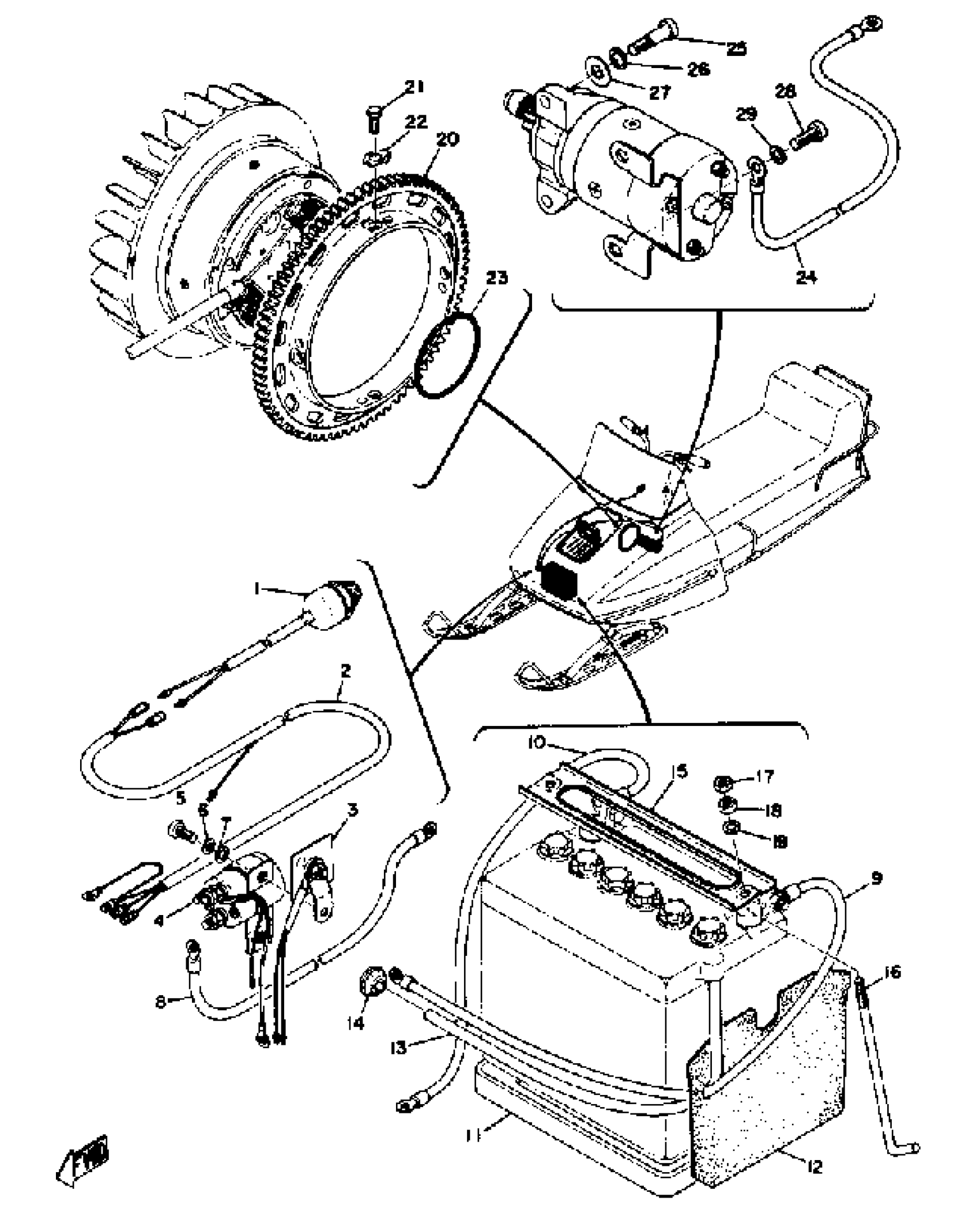

Find the part on the Electric Starter diagram for your 1974 Yamaha TW433F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha TW433F Electric Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTER SWITCH ASSEMBLY

(811-83970-00-00)

1
Out of stock

2

WIRE, LEAD 2

(842-82127-00-00)

1
Out of stock

3

RECTIFIER ASSEMBLY

(812-81970-41-00)

1
Out of stock

4

STARTER SWITCH ASSEMBLY

(842-81940-20-00)

1
Out of stock

5

SCREW, PAN

98507-06014-00

1

$6.18

In stock

6

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

7

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

8

WIRE, PLUS LEAD

(842-82115-00-00)

1
Out of stock

9

WIRE, LEAD 3

(842-82149-00-00)

1
Out of stock

10

WIRE, MINUS LEAD

822-82116-00-00

1
Out of stock

11

SEAT, BATTERY

807-82122-00-00

1
Out of stock

12

SEAL, BATTERY

822-82118-00-00

1
Out of stock

13

PIPE,BREATHER

2RH-21826-00-00

1
Out of stock

14

GROMMET 152845180000

90480-12013-00

1
Out of stock

15

PLATE, BATT FITTING

(822-82136-00-00)

1
Out of stock

16

SCREW, SPEC''L SHAPE

(90149-06024-00)

1
Out of stock

17

NUT(650)

95380-06700-00

—

$6.17

In stock

18

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

19

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

20

GEAR, RING

(842-81891-00-00)

1
Out of stock

21

BOLT, DOME HEAD

(90106-08004-00)

1
Out of stock

22

WASHER, LOCK

(90215-08071-00)

1
Out of stock

23

UNAVAILABLE IN PRICE BOOK (2.2-46)

93210-06117-00

1
Out of stock

24

WIRE, LEAD

(842-82117-00-00)

1
Out of stock

25

SCREW, SPEC''L SHAPE

90149-08056-00

1
Out of stock

26

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

27

WASHER, PLATE

(90201-09116-00)

1
Out of stock

28

SCREW PAN HEAD

98580-08020-00

—

$3.14

In stock

29

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock
