1974 Yamaha TW433F Electric Motor Diagram

← All diagrams

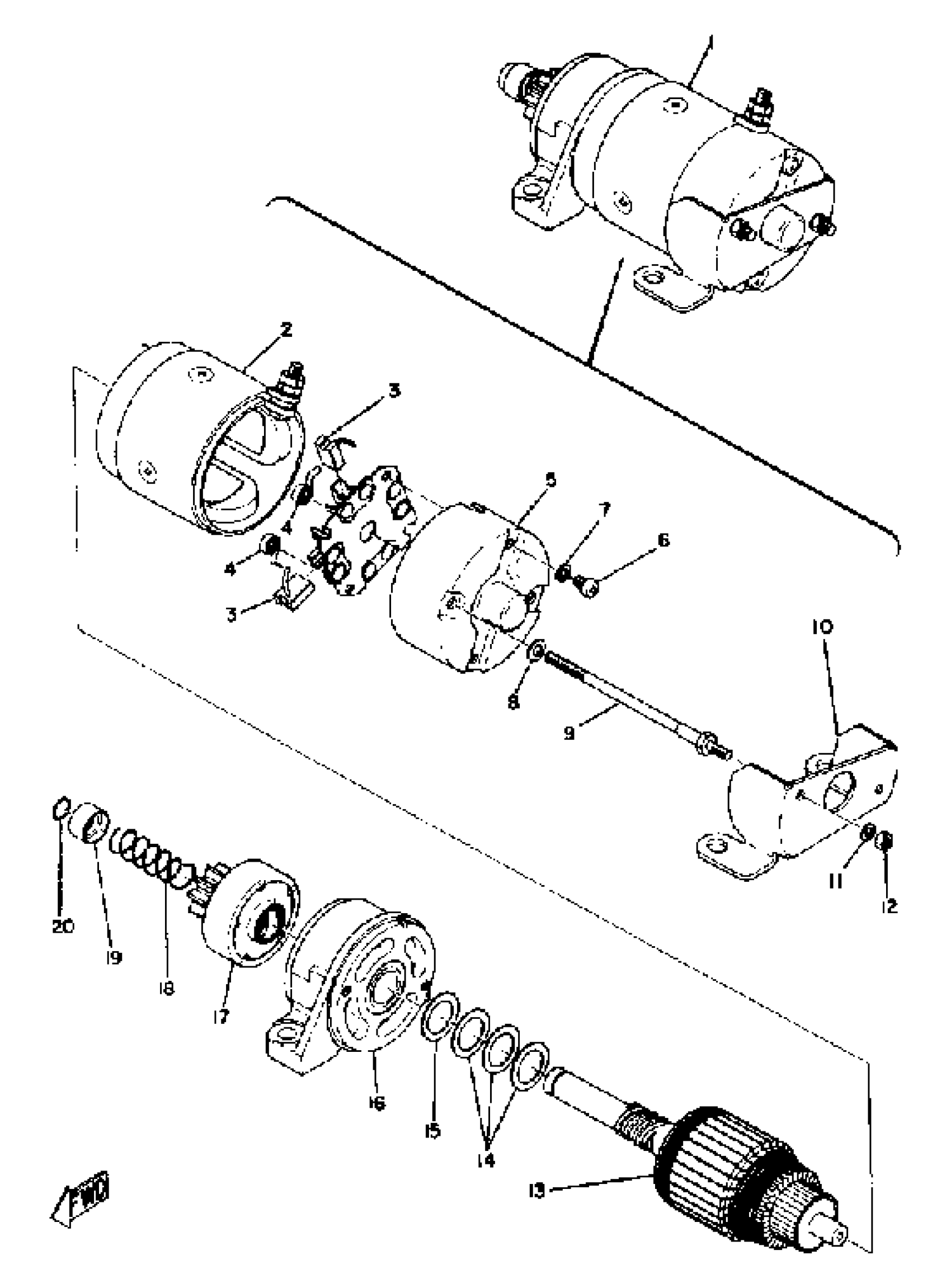

Find the part on the Electric Motor diagram for your 1974 Yamaha TW433F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha TW433F Electric Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ELECT.STARTER KIT (842-81800-20)

807-81000-00-00

1
Out of stock

2

STATOR ASSEMBLY

(842-81810-20-00)

1
Out of stock

3

BRUSH 1

(842-81811-20-00)

1
Out of stock

4

SPRING, BRUSH

(842-81813-20-00)

1
Out of stock

5

REAR BRACKET ASSEMBLY

(842-81820-20-00)

1
Out of stock

6

SCREW, BRUSH HOLDER

(842-81848-20-00)

1
Out of stock

7

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

8

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

9

BOLT

(842-81826-20-00)

1
Out of stock

10

BRACKET, STRTG MTR

(842-81822-20-00)

1
Out of stock

11

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

12

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

13

ARMATURE ASSEMBLY

(842-81850-20-00)

1
Out of stock

14

WASHER 1

(842-81843-20-00)

1
Out of stock

15

WASHER 2

(842-81824-20-00)

1
Out of stock

16

FRONT BRACKET ASSEMBLY

(842-81830-20-00)

1
Out of stock

17

CLUTCH, OVER RUN

(842-81832-20-00)

1
Out of stock

18

. SPRING, LEVER

842-81836-20-00

1
Out of stock

19

RING, STOP

(842-81833-20-00)

1
Out of stock

20

RING

(842-81834-20-00)

1
Out of stock
